Master WinOLS Expert Series: ECU Calibration & Map Development

Description

Master WinOLS Expert Series: ECU Calibration & Map Development is an advanced technical manual designed for technicians, ECU tuners, and calibration specialists who want to move beyond basic map identification and conventional WinOLS workflows.

While the previous Master WinOLS Manual Vol. 1: ECU Tuning for Petrol Engine and Master WinOLS Vol. 2: ECU Tuning for Diesel Engine focus primarily on the fundamentals of ECU tuning for petrol and diesel applications, this Expert Series goes further into real ECU calibration examples, map development, checksum correction, EGR/DPF solutions, immobilizer-related procedures, and advanced mapping concepts.

The book combines practical WinOLS-based analysis with real ECU examples from Bosch, Delphi, Magneti Marelli, VAG, BMW, Mercedes-Benz, Renault, Fiat, Opel, PSA, and other platforms.

Instead of simply teaching where a map is located, this manual focuses on understanding how ECU data is structured, how calibration areas are modified, and how different ECU strategies interact with engine management functions.

It is intended as the next step for readers who already understand the basics of WinOLS and want to develop a more professional approach to ECU calibration.

Key Features Master WinOLS Expert Series

Advanced Petrol ECU Calibration

The book explores practical calibration examples from several widely used petrol ECU families, including:

• Bosch Motronic 1.7
• Bosch Motronic M1.5.5
• Magneti Marelli 6JF
• Bosch Motronic ME7.x
• Opel ECU applications
• Checksum correction and calibration considerations

These examples help readers understand how petrol ECU data can be analyzed and calibrated within WinOLS rather than relying exclusively on predefined map packs.

Diesel ECU Remapping

The diesel section introduces practical remapping concepts using Bosch EDC platforms, including:

• Bosch EDC16C9
• Bosch EDC16C39
• Fuel and torque-related calibration concepts
• ECU data analysis
• Practical Stage 1 calibration examples

The focus is on understanding the relationship between calibration areas rather than simply applying predefined modifications.

EGR Solution Analysis

A dedicated section covers EGR-related ECU calibration across multiple ECU families and vehicle manufacturers.

Examples include:

• EDC16C3 – Renault
• EDC16C8 – Fiat / Alfa Romeo / Lancia
• EDC16C9 – Opel / Saab
• EDC16C31 – BMW
• EDC16C31 – Mercedes-Benz
• EDC16C34 – Citroën / Ford / Mazda / Peugeot
• EDC16U – VAG PD

The examples demonstrate how EGR-related strategies can differ between ECU architectures and applications.

FAP & DPF Calibration Solutions

The book provides dedicated case studies covering FAP/DPF-related ECU calibration on several Bosch and Delphi platforms, including:

• Bosch EDC16C31
• Bosch EDC16C35
• Bosch EDC16U
• Bosch EDC16U31
• Bosch EDC17CP14
• Delphi CRD2
• Mercedes-Benz OM651

A dedicated example also examines a Mercedes-Benz C320 CDI EDC16CP31 Stage 1 + DPF-related calibration case.

Immobilizer-Related ECU Analysis

The Expert Series also introduces ECU and immobilizer-related case studies involving:

• Audi Bosch ECU applications
• Bosch EDC15C VAG
• 24C02 EEPROM-based examples
• Mercedes-Benz IFZ module
• Mercedes-Benz A-Class A 170 CDI
• BMW ECU applications

The purpose is to help readers understand the relationship between ECU memory, immobilizer data, and vehicle starting authorization at a technical level.

Checksum & Data Integrity

Checksum is an essential part of professional ECU calibration.

The book introduces practical checksum-related concepts and examples, helping readers understand why modified ECU data must be validated before programming.

This is particularly important when working with ECU files where calibration changes can affect data integrity.

Advanced Mapping Guidelines

The final chapter brings together the concepts covered throughout the book and introduces advanced mapping guidelines for developing a more systematic ECU calibration workflow.

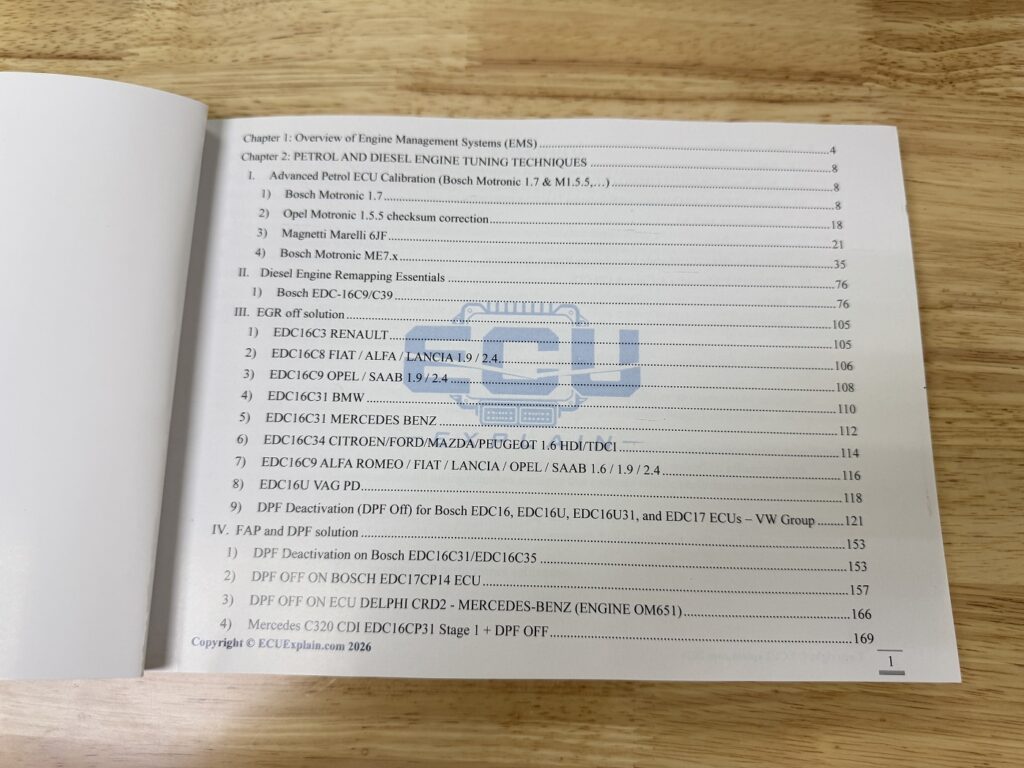

Chapters & Contents

Chapter 1: Overview of Engine Management Systems

The opening chapter establishes the foundation for understanding modern Engine Management Systems (EMS).

It introduces the relationship between the ECU, sensors, actuators, calibration data, and engine control strategies.

This chapter provides the technical background needed to understand why ECU calibration cannot be treated as simply changing individual numbers inside a file.

Chapter 2: Petrol and Diesel Engine Tuning Techniques

The main technical section of the book is divided into several areas covering petrol calibration, diesel remapping, EGR, FAP/DPF, immobilizer-related solutions, and advanced mapping.

I. Advanced Petrol ECU Calibration

This section examines practical petrol ECU calibration examples across different ECU families.

• 1. Bosch Motronic 1.7: A practical examination of Bosch Motronic 1.7 ECU data and calibration concepts.
• 2. Opel Motronic 1.5.5 Checksum Correction: Focuses on checksum correction considerations when working with Opel Motronic 1.5.5 ECU data.
• 3. Magneti Marelli 6JF: Analysis of the Magneti Marelli 6JF platform and its calibration structure.
• 4. Bosch Motronic ME7.x: An advanced look at Bosch Motronic ME7.x ECU calibration and map development.

II. Diesel Engine Remapping Essentials

1. Bosch EDC16C9 / EDC16C39

This section introduces practical diesel remapping concepts using Bosch EDC16 platforms.

It helps readers understand the calibration relationships involved in diesel ECU tuning and provides a foundation for developing controlled Stage 1 calibration strategies.

III. EGR Off Solution

This section contains practical ECU case studies covering EGR-related calibration across multiple manufacturers and ECU families.

Examples include:

1. EDC16C3 – Renault
2. EDC16C8 – Fiat / Alfa Romeo / Lancia 1.9 / 2.4
3. EDC16C9 – Opel / Saab 1.9 / 2.4
4. EDC16C31 – BMW
5. EDC16C31 – Mercedes-Benz
6. EDC16C34 – Citroën / Ford / Mazda / Peugeot 1.6 HDI/TDCI
7. EDC16C9 – Alfa Romeo / Fiat / Lancia / Opel / Saab
8. EDC16U – VAG PD
9. DPF deactivation concepts for Bosch EDC16, EDC16U, EDC16U31, and EDC17 – VW Group

The emphasis is on understanding how emissions-related control strategies are represented within ECU calibration data.

IV. FAP and DPF Solution

The FAP/DPF section provides dedicated examples from Bosch and Delphi ECU platforms.

• 1. DPF Deactivation – Bosch EDC16C31 / EDC16C35: A practical case study of DPF-related calibration on Bosch EDC16 platforms.
• 2. DPF OFF – Bosch EDC17CP14: Analysis of a Bosch EDC17CP14 application and its DPF-related calibration structure.
• 3. DPF OFF – Delphi CRD2 Mercedes-Benz OM651: A Mercedes-Benz OM651 example using the Delphi CRD2 ECU platform.
• 4. Mercedes-Benz C320 CDI EDC16CP31 – Stage 1 + DPF OFF: A combined calibration case demonstrating how performance-oriented calibration and DPF-related modifications can appear within the same ECU project.

V. Immo Off Solution

This section examines immobilizer-related ECU case studies from Audi, Mercedes-Benz, and BMW.

1. Audi

• a. Audi Bosch 0261203554 IMMO OFF Solution: An example based on a Bosch ECU application.
• b. Bosch EDC15C VAG IMMO OFF Solution – 24C02 EEPROM: A case study involving EEPROM-based ECU data.
• c. Immobilizer Audi A4: A practical Audi immobilizer-related example.

2. Mercedes-Benz

• a. Mercedes-Benz IFZ Module Immobilizer Bypass Procedure: A dedicated Mercedes-Benz example examining the relationship between the IFZ module and immobilizer functionality.
• b. IMMO OFF – Mercedes-Benz A-Class A 170 CDI: A practical ECU case study involving the Mercedes-Benz A-Class diesel platform.

3. BMW

A BMW immobilizer-related ECU example illustrating the differences between manufacturer platforms and ECU architectures.

VI. Advanced Mapping Guidelines

The final section moves from individual ECU case studies toward a broader calibration methodology.

It focuses on developing a more structured approach to:

• Map identification
• Calibration analysis
• Data interpretation
• ECU strategy relationships
• Modification validation
• Calibration development
• File integrity and checksum considerations

This chapter is particularly useful for readers who want to transition from following predefined solutions toward developing their own understanding of ECU calibration.

What Makes This Book Different From the Previous Master WinOLS Books?

The previous books in the Master WinOLS series provide an important foundation, but the Master WinOLS Expert Series: ECU Calibration & Map Development is designed as a more advanced step.

Criteria	Master WinOLS Manual Vol. 1: ECU Tuning for Petrol Engine	Master WinOLS Vol. 2: ECU Tuning for Diesel Engine	Master WinOLS Expert Series: ECU Calibration & Map Development
Main Focus	Petrol ECU tuning fundamentals	Diesel ECU tuning fundamentals	Advanced calibration and map development
Learning Level	Beginner → Intermediate	Beginner → Intermediate	Intermediate → Advanced
Engine Focus	Petrol	Diesel	Petrol + Diesel
Map Understanding	Learn the main petrol tuning maps	Learn the main diesel tuning maps	Develop deeper understanding of ECU calibration strategies
ECU Case Studies	Petrol-oriented examples	Diesel-oriented examples	Multiple Bosch, Delphi, Magneti Marelli and OEM ECU platforms
Stage 1 Concepts	Petrol tuning	Diesel tuning	Practical calibration examples across different ECU architectures
EGR	Limited / foundational	Limited / foundational	Dedicated EGR case studies across multiple ECU families
DPF/FAP	Not the primary focus	Diesel-oriented foundation	Dedicated FAP/DPF case studies
Immobilizer	Not the primary focus	Not the primary focus	Dedicated Audi, Mercedes-Benz and BMW examples
Checksum	Basic WinOLS-related concepts	Basic WinOLS-related concepts	Dedicated checksum correction example and data-integrity concepts
EEPROM / Low-Level Data	Limited	Limited	Introduced through practical ECU/immobilizer case studies
Map Development	Fundamental tuning	Fundamental diesel tuning	Advanced mapping guidelines
Purpose	Learn how to tune petrol ECUs	Learn how to tune diesel ECUs	Understand, analyze and develop ECU calibration solutions

From Tuning Fundamentals to ECU Calibration

The key difference is the depth and breadth of ECU analysis.

The two previous books are organized primarily around petrol and diesel tuning applications. They help readers understand the major calibration areas used when developing conventional tuning projects.

The Expert Series expands this approach by combining:

ECU identification → map analysis → calibration → ECU-specific solutions → data integrity → advanced mapping

Instead of focusing on only one engine type, it exposes readers to different ECU architectures and real-world examples.

Why Choose the Expert Series?

A technician who only knows how to identify a few common maps may be able to perform basic tuning when a suitable driver or map pack is available.

However, professional ECU calibration requires a broader understanding.

Different ECUs can use different structures, scaling, strategies, memory areas, and calibration relationships. A solution that works on one ECU family cannot automatically be transferred to another.

Master WinOLS Expert Series: ECU Calibration & Map Development is therefore designed to bridge the gap between basic WinOLS operation and advanced ECU calibration analysis.

It is particularly valuable for technicians who want to:

• Understand petrol and diesel ECU calibration from a deeper technical perspective
• Work with a wider range of Bosch, Delphi, and Magneti Marelli ECU platforms
• Develop practical Stage 1 calibration knowledge
• Analyze EGR and DPF/FAP-related ECU strategies
• Understand immobilizer-related ECU case studies
• Learn checksum correction concepts
• Become less dependent on predefined map packs
• Develop a more systematic approach to map analysis
• Build the knowledge required for advanced ECU calibration work

Who Is This Book For?

• ECU Tuners: For tuners who already understand the basics of WinOLS and want to expand into more advanced ECU calibration projects.
• Automotive Diagnostic & Programming Technicians: For technicians working with ECU programming, calibration, file analysis, and complex ECU-related problems.
• ECU Repair Specialists: For professionals who need to understand ECU memory structures, checksum concepts, EEPROM-related data, and manufacturer-specific ECU architectures.
• Experienced WinOLS Users: For users who are comfortable with basic map identification but want to move toward independent analysis and calibration development.
• Automotive Training & Workshop Professionals: For workshops and training environments that require a technical reference covering multiple ECU families and practical calibration examples.

The Next Step in Your WinOLS Journey

Master WinOLS Manual Vol. 1: ECU Tuning for Petrol Engine teaches the foundations of petrol ECU tuning.

Master WinOLS Vol. 2: ECU Tuning for Diesel Engine builds the foundation for diesel ECU tuning.

Master WinOLS Expert Series: ECU Calibration & Map Development takes the next step by bringing petrol and diesel calibration, ECU case studies, EGR/DPF-related solutions, immobilizer analysis, checksum concepts, and advanced mapping together in one professional reference.

It is not simply another introduction to WinOLS.

It is a technical reference for readers who want to move from recognizing maps to understanding ECU calibration, and from following predefined tuning solutions to developing a deeper engineering-oriented approach to ECU data analysis.

Master WinOLS Expert Series: ECU Calibration & Map Development — Go beyond map recognition. Understand the calibration.
