What Is a Turbo Wastegate? Function, Types, Problems & Repair Tips

The turbo wastegate is a crucial component in turbocharged engines, acting as a control valve that manages exhaust gas flow to the turbine, thereby regulating boost pressure. This guide delves into what wastegates are, their function, and the different types available, providing essential information for car owners, repair shops, and automotive technicians aiming to enhance their knowledge and skills.

1. What is a Turbo Wastegate?

A wastegate is a valve that controls the flow of exhaust gas to the turbine of a turbocharger. Its primary role is to bypass excess exhaust gases away from the turbine, controlling its speed and preventing overspeeding.

The wastegate is essential for managing the boost pressure created by the turbocharger. By regulating turbine speed, it ensures the boost pressure remains within safe limits, protecting both the turbocharger and the engine from potential damage. This control is particularly crucial in high-performance engines where excessive boost can lead to catastrophic failures.

2. How Does a Turbo Wastegate Function?

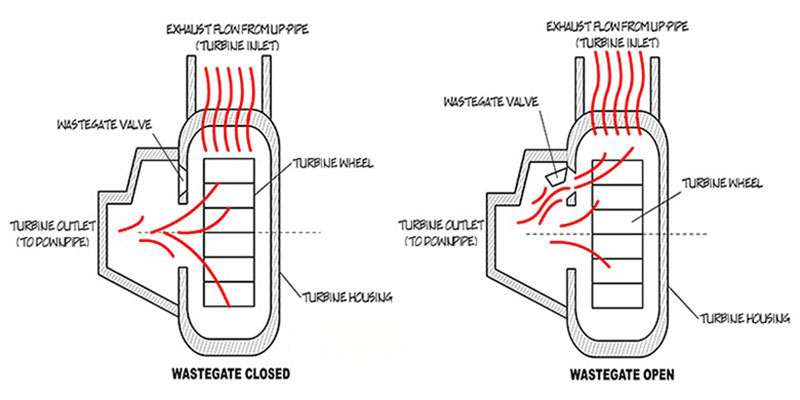

The functionality of a wastegate involves a relatively straightforward mechanical design, usually governed by a pressure actuator connected to the turbo’s boost pressure. The wastegate remains closed under normal conditions due to a spring inside the actuator. However, when the boost pressure surpasses a predefined threshold, it compresses the spring, causing the wastegate to progressively open.

As the wastegate opens, exhaust gases are redirected to bypass the turbine, effectively reducing its speed. This regulation prevents the turbine from spinning too quickly, which in turn controls the boost pressure. The precision of this mechanism is vital for maintaining optimal engine performance and preventing damage from overboost.

3. Types of Turbo Wastegates

There are two primary types of wastegates: internal and external.

3.1. Internal Wastegates

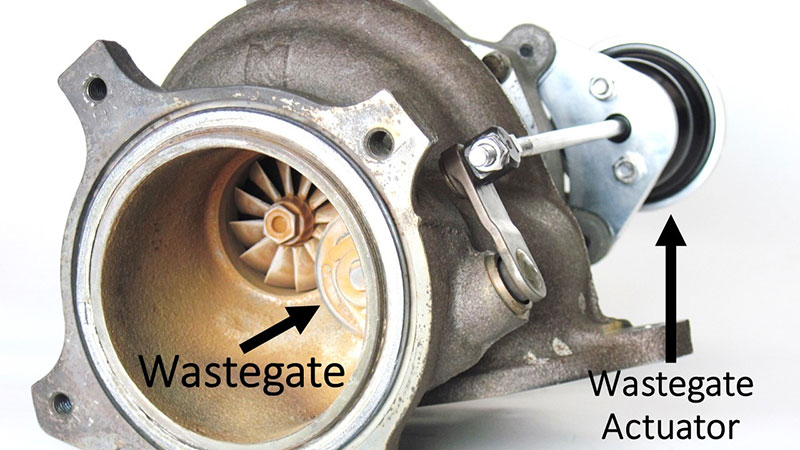

Most turbochargers come equipped with internal wastegates, where the valve is integrated directly into the turbine housing. This design is common in standard vehicle configurations and provides a compact, cost-effective solution for boost control.

The internal wastegate is managed by an actuator that includes a spring and a sealed chamber. This chamber is connected to the boost pressure, typically via a pressure source on the turbocharger’s compressor cover. When the boost pressure reaches the set limit, the actuator opens the valve, allowing exhaust gases to bypass the turbine.

3.2. External Wastegates

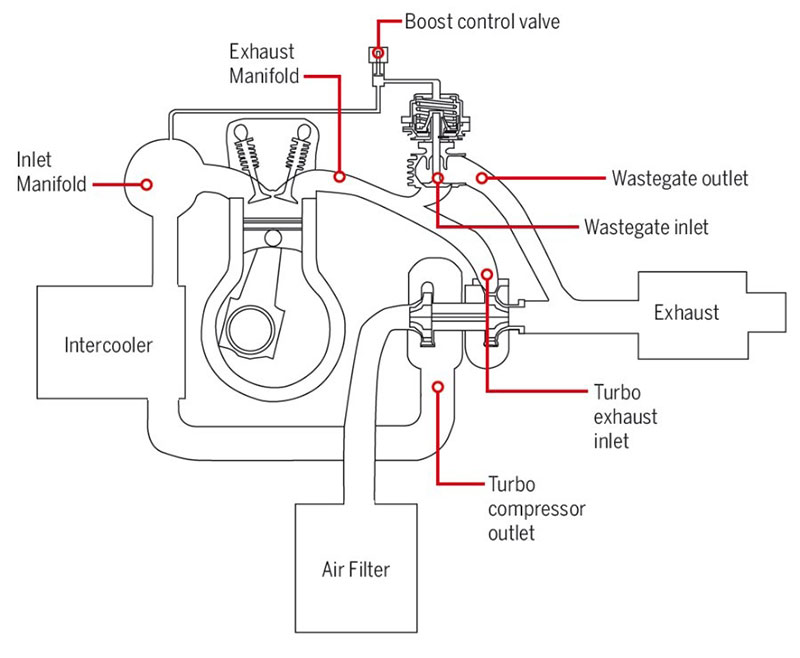

External wastegates are typically used in high-performance engines and racing vehicles. These are separate, self-contained units mounted on the exhaust manifold or header.

External wastegates are designed with larger inlets and outlets, stronger springs, and larger actuator diaphragms to handle higher boost pressures efficiently. Their external mounting allows for greater flow capacity and more precise boost control compared to internal wastegates.

4. How a Turbo Wastegate Works — In Detail

The core function of a turbo wastegate is to regulate how much boost pressure (compressed air) the turbocharger produces by controlling how much exhaust gas reaches the turbine side of the turbo.

Let’s break it down in a step-by-step technical process, starting with how boost is created and ending with how the wastegate controls it:

---

4.1. Turbocharger Operation Basics

• A turbocharger has two main sections:

  • The turbine side, driven by exhaust gases.

  • The compressor side, which compresses air into the engine.

• As exhaust gases exit the engine, they spin the turbine wheel.

• The turbine spins the compressor wheel, which draws in and compresses air into the intake manifold — this is what we call boost pressure.

---

4.2. The Role of the Wastegate in Controlling Boost

As RPMs increase and the engine works harder:

• More exhaust is produced.

• The turbo spins faster.

• Boost pressure climbs.

But every engine has a safe boost limit, set by the manufacturer or tuner. If the turbo isn’t controlled, it can overboost — which could cause:

• Engine knock (detonation)

• Blown head gaskets

• Turbo or piston damage

The wastegate opens to prevent this.

---

4.3. Wastegate Activation Process

There are two types of wastegate actuation systems: pneumatic (pressure-based) and electronic (motor-driven).

A. Pneumatic Wastegate (Traditional Setup)

• A vacuum or boost reference line connects the intake (or charge pipe) to the wastegate actuator (a small chamber with a spring-loaded diaphragm).

• When boost reaches the pre-set level (e.g. 10 psi), the pressure overcomes spring tension in the actuator.

• The actuator rod pushes the wastegate valve open.

• A portion of exhaust gas is diverted away from the turbine wheel, usually into the downpipe or dump pipe.

• This slows the turbo and limits further boost buildup.

B. Electronic Wastegate (Modern Setup)

• Instead of a spring-loaded actuator, a stepper motor or servo is used.

• The ECU directly controls the position of the wastegate flap based on boost sensor data.

• Offers more precise control, quicker response, and adaptive boost regulation (common in BMW, Audi, Mercedes, etc.).

---

4.4. What Happens When the Wastegate Opens

Once the valve opens:

• The turbo receives less exhaust pressure.

• The turbine slows slightly.

• Boost pressure levels off or drops.

• The wastegate remains open only as long as needed to regulate boost, then closes again if pressure drops.

In a properly tuned system, this creates stable and safe boost curves throughout the RPM range.

---

4.5. Wastegate Control in Performance Tuning

Boost control can be enhanced or modified with:

• Manual Boost Controllers (MBC) — raise the opening pressure mechanically.

• Electronic Boost Controllers (EBC) — allow programmable control of wastegate behavior (e.g. variable boost by gear or RPM).

• Dual-port wastegates — let tuners apply pressure to both sides of the actuator for precise management.

Modern ECUs often use closed-loop control, constantly comparing target boost vs. actual boost and adjusting the wastegate duty cycle accordingly.

---

💡 Visual Example

Imagine the turbo as a water wheel being powered by a river:

• The more water (exhaust), the faster it spins.

• The wastegate is like a diversion gate — it opens to let some water bypass the wheel when it’s spinning too fast.

• This keeps the system running smoothly without overflowing or damaging components.

5. What are the Wastegate Control Systems

The efficiency and responsiveness of a turbocharged engine rely heavily on how the wastegate is controlled. Whether through mechanical force, air pressure, or electronic signals, the control system determines how accurately and safely boost levels are regulated.

Let’s explore the three main categories of wastegate control systems in detail:

---

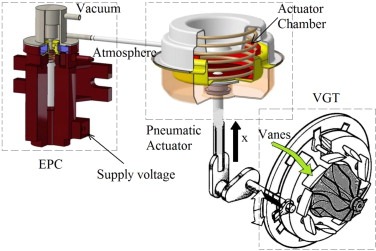

5.1. Pneumatic Wastegate Actuator (Spring-Loaded Mechanical Control)

The pneumatic actuator is the most traditional and widely used method in both OEM and aftermarket turbo systems.

🔧 How It Works:

• A diaphragm actuator is mounted to the wastegate flap via a control rod.

• Inside the actuator is a spring that holds the wastegate shut under low boost.

• A vacuum or boost pressure line (typically from the intake manifold or compressor housing) feeds into the actuator.

• As boost pressure increases, it pushes against the spring-loaded diaphragm.

• When boost exceeds the spring’s resistance (e.g., at 10 psi), the actuator extends the rod and opens the wastegate valve.

• This diverts exhaust gases away from the turbine, slowing it down and stabilizing boost.

📌 Key Features:

• Simple & reliable design.

• Actuation pressure can be adjusted by changing the spring stiffness.

• Often seen on factory turbos and aftermarket kits.

🔧 Use in Tuning:

Tuners can upgrade to a stiffer spring to raise the base boost pressure, or use a boost controller to manipulate when the valve opens.

---

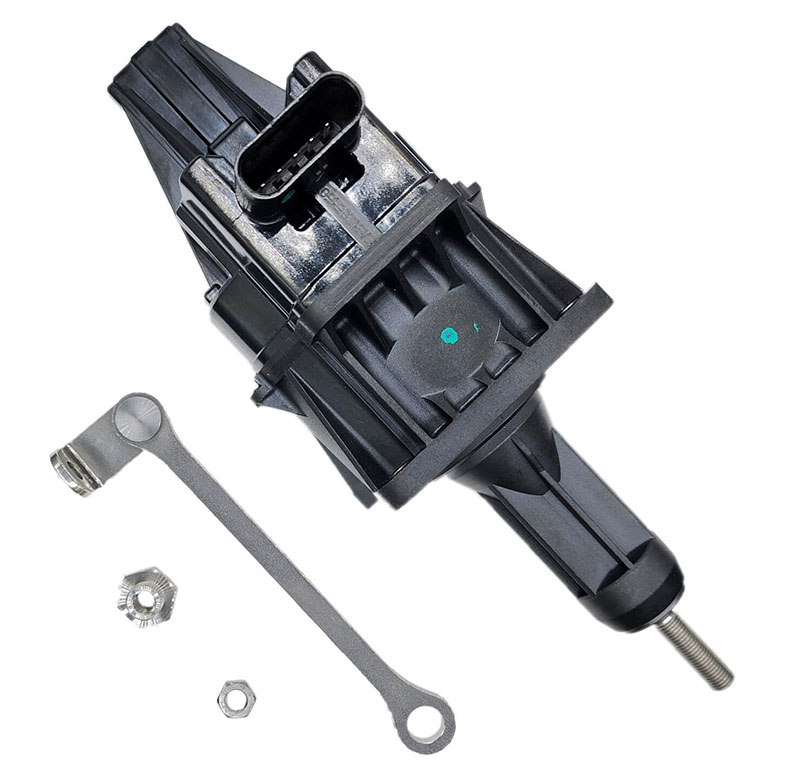

5.2. Electronic Wastegate Actuator (E-WGA)

Modern turbocharged engines, particularly from brands like BMW (e.g., B58), Audi (TFSI engines), and Mercedes (M270/M274), increasingly use electronic wastegate actuators.

🔌 How It Works:

• Replaces the spring-and-diaphragm setup with an electric motor or stepper motor.

• Controlled directly by the ECU using live feedback from multiple sensors (MAP sensor, exhaust pressure, turbo speed sensor).

• The ECU calculates the ideal boost target and precisely positions the wastegate in real time to meet that target.

• This allows finer control of boost across different RPMs, loads, and driving conditions.

🧠 Example:

• During a cold start or low-speed cruising, the ECU may slightly open the wastegate to reduce boost and improve fuel economy.

• Under full throttle, it keeps the gate tightly shut for maximum spool and response.

⚡ Benefits:

• Faster response time and precise modulation.

• Allows for multi-stage boost control and adaptive behavior.

• Works well with drive-by-wire and torque-based tuning strategies.

⚙️ Common Applications:

• BMW B48/B58 engines

• Audi 2.0T TFSI engines (EA888 Gen 3 and up)

• Mercedes 1.6L/2.0L turbo engines (with E-WGA)

---

5.3. Boost Controllers & Solenoids

Boost controllers are external devices that override or manipulate the wastegate signal to allow for more aggressive or customized boost control.

There are two primary types:

---

🔧 A. Manual Boost Controller (MBC)

• A small inline device installed on the boost reference line to the actuator.

• Uses a valve or bleeder to delay the signal reaching the actuator.

• This causes the wastegate to open later, allowing more boost to build up before relief occurs.

Pros:

• Low cost, easy to install.

• Simple adjustment using a screw or knob.

• Popular in DIY and budget builds.

Cons:

• No feedback loop — can’t adjust based on conditions.

• Risk of overboost if not set properly.

---

⚙️ B. Electronic Boost Controller (EBC)

• Uses an electronic solenoid valve controlled by a standalone controller or the vehicle’s ECU.

• Reads real-time boost levels and adjusts duty cycles of the solenoid to control pressure to the actuator.

• Can map boost by RPM, throttle position, gear, or even ambient temperature.

Pros:

• Highly customizable and precise.

• Can limit boost in lower gears to reduce wheelspin.

• Often used in performance tuning and race applications.

Cons:

• Requires proper setup and calibration.

• Higher initial cost compared to MBCs.

=> You may also like: What is a wastegate actuator

6. Common Issues with Turbo Wastegates

Several issues can arise with turbo wastegates, impacting engine performance and efficiency.

6.1. Symptoms of Wastegate Failure

Recognizing the symptoms of a failing wastegate is crucial for timely repairs. Common signs include:

• Overboost: The engine produces more boost than intended, potentially causing damage.
• Underboost: The engine produces less boost than expected, resulting in reduced power.
• Erratic Boost: Boost pressure fluctuates inconsistently, leading to uneven performance.
• Engine Knocking: Abnormal combustion sounds indicate potential engine stress due to improper boost control.
• Check Engine Light: The engine’s computer may trigger a warning light due to detected anomalies

6.2. Causes of Wastegate Problems

Several factors can contribute to wastegate malfunctions:

• Wear and Tear: Over time, the wastegate’s components can degrade due to heat and pressure.
• Corrosion: Exposure to exhaust gases and moisture can cause corrosion, affecting the wastegate’s operation.
• Spring Fatigue: The actuator spring can lose tension, leading to inaccurate boost control.
• Diaphragm Leaks: The diaphragm in the actuator can develop leaks, preventing proper valve operation.
• Mechanical Damage: Physical damage from debris or improper installation can impair the wastegate’s function.

6.3. Troubleshooting Wastegate Issues

Diagnosing wastegate problems requires a systematic approach:

1. Visual Inspection: Check for visible signs of damage, corrosion, or leaks.
2. Pressure Testing: Use a pressure tester to verify the actuator’s functionality and identify any leaks.
3. Boost Monitoring: Monitor boost pressure using a gauge or diagnostic tool to detect overboost or underboost conditions.
4. Actuator Adjustment: Ensure the actuator is properly adjusted to achieve the correct boost levels.
5. Component Replacement: Replace any worn or damaged components, such as the spring or diaphragm.

6.4. Common Wastegate-Related Fault Codes

• General OBD-II Fault Codes (All Brands)

These codes apply to a wide range of makes and models:

• BMW-Specific Fault Codes (N54, N55, B58, etc.)

BMW turbo engines, especially with electronic wastegate actuators, often log unique fault codes when boost control fails:

=> You may also like:

• How to Fix BMW 30FF DTC

Important: Wastegate rattle and sticking are common problems on older BMW models like the N54 and N55 — often requiring full actuator or turbo replacement.

• Mercedes-Benz Specific Codes (M270, M274, OM651, M276, etc.)

Mercedes turbocharged engines with E-WGA (Electronic Wastegate Actuators) or traditional vacuum-actuated turbos can show wastegate-related DTCs:

Mercedes often logs exact mechanical deviations in the wastegate control system. For advanced diagnostics, live data from Xentry or a Mercedes-specific scan tool can confirm actuator current draw, position deviation, and motor duty cycle.

=> You may also like:

• Mercedes-Benz P029900 diagnostic trouble code

6.5. Preventing Wastegate Problems

Regular maintenance can help prevent wastegate issues:

• Routine Inspections: Periodically inspect the wastegate and its components for wear and damage.
• Cleaning: Clean the wastegate to remove dirt and debris that can affect its operation.
• Lubrication: Lubricate moving parts to prevent corrosion and ensure smooth operation.
• Professional Servicing: Schedule regular servicing with a qualified technician to address any potential issues.

7. The Future of Turbocharging and Wastegate Technology

The field of turbocharging and wastegate technology is constantly evolving, with new innovations emerging regularly. Here are some key trends to watch:

• Electronic Wastegates: These advanced wastegates use electronic control systems to provide even more precise boost regulation.
• Variable Geometry Turbos (VGTs): VGTs incorporate adjustable vanes that optimize turbine performance across a wide range of engine speeds.
• Advanced Materials: New materials are being used to enhance the durability and heat resistance of wastegate components.
• Integration with Engine Management Systems: Wastegate control is becoming increasingly integrated with sophisticated engine management systems to optimize performance and efficiency.

AutoExplain: Your Partner in Automotive Excellence

At AutoExplain, we understand the complexities of modern automotive systems. Our expert teams are dedicated to providing top-notch diagnostics, programming, and remote software installation services to keep your vehicle running at its best. Whether you’re a car owner, a repair shop, or an automotive technician, we’re here to help you navigate the world of turbochargers and wastegates.

Here are some key advantages of working with us:

• Expertise: Our technicians have extensive experience in diagnosing and repairing complex automotive systems.
• Cutting-Edge Technology: We utilize the latest diagnostic and programming tools to ensure accurate and efficient service.
• Remote Support: Our remote software installation services save you time and money by resolving issues quickly and conveniently.
• Comprehensive Solutions: We offer a full range of services, from diagnostics to performance upgrades, to meet all your automotive needs.
• Customer Satisfaction: We are committed to providing exceptional customer service and ensuring your complete satisfaction.

For assistance with any aspect of turbocharging, contact us today:

• Address: 1500 N Grant ST Sten Denver, Colorado, United States
• WhatsApp: (+84)967469410
• Email: [email protected]

Our sister company offers a range of high-quality internal and external wastegates from top brands like Turbosmart. We provide expert advice on selecting the right components, along with fitting and configuration support to help you achieve your performance goals.

FAQ: Turbo Wastegates

Q1: What is the purpose of a turbo wastegate?

A1: The turbo wastegate controls the flow of exhaust gas to the turbine of a turbocharger, regulating boost pressure to prevent overboost and engine damage.

Q2: How does a wastegate work?

A2: It diverts excess exhaust gases away from the turbine, controlling its speed. When boost pressure exceeds a set limit, the wastegate opens, bypassing exhaust gases and reducing turbine speed.

Q3: What are the two main types of wastegates?

A3: The two main types are internal wastegates, integrated into the turbine housing, and external wastegates, which are separate units mounted on the exhaust manifold.

Q4: When should I consider upgrading my wastegate?

A4: Upgrade your wastegate if you’re modifying your engine for higher performance, installing an aftermarket turbocharger, or experiencing boost control issues.

Q5: What are the symptoms of a failing wastegate?

A5: Symptoms include overboost, underboost, erratic boost, engine knocking, and a check engine light.

Q6: Can I adjust my wastegate myself?

A6: Yes, but it requires careful attention to detail and the right tools. Follow a step-by-step guide and monitor boost pressure to ensure proper adjustment.

Q7: What are the benefits of an external wastegate?

A7: External wastegates offer improved boost control, increased flow capacity, enhanced performance, and greater reliability.

Q8: How can I prevent wastegate problems?

A8: Regular maintenance, including routine inspections, cleaning, lubrication, and professional servicing, can help prevent wastegate issues.

Q9: What are some future trends in wastegate technology?

A9: Future trends include electronic wastegates, variable geometry turbos, advanced materials, and integration with engine management systems.

Q10: How can AutoExplain help with my turbocharging needs?

A10: AutoExplain offers expert diagnostics, programming, and remote software installation services, along with high-quality wastegates and expert advice to optimize your vehicle’s performance.

Conclusion

Understanding the turbo wastegate is crucial for maintaining and optimizing the performance of turbocharged engines. Whether you’re a car owner, a repair shop, or an automotive technician, having a solid grasp of wastegate function, types, and potential issues will help you ensure your vehicle runs smoothly and efficiently.

Don’t let turbocharging complexities hold you back. Click the WhatsApp contact button to learn more about how AutoExplain can provide expert coding and programming solutions for your gara and take your automotive services to the next level. Let us help you achieve automotive excellence.
