What Is a Body Control Module (BCM) in a Car? Discover Its Roles & Functions

In the world of modern vehicles, electronics play a crucial role in everything from lighting to security systems. At the center of these non-engine-related electronic systems lies a small but powerful unit called the Body Control Module (BCM). This intelligent controller is essential for managing many comfort and convenience functions in your vehicle.

If you’ve ever wondered what is a body control module, what does a body control module do, or how to locate it in your car, this guide has you covered. Whether you’re a car owner, technician, or auto enthusiast, this article explains everything you need to know about the body control module in automotive systems.

---

1. What Is a Body Control Module (BCM)?

A Body Control Module (BCM) is an electronic control unit (ECU) that manages and monitors various body-related electronic systems in a car. Unlike the Engine Control Unit (ECU), which oversees engine performance, the BCM is responsible for non-powertrain functions that enhance driver and passenger comfort, convenience, and safety.

1.1. Definition:

The BCM acts as the central brain for body-related electronics, coordinating operations between switches, sensors, relays, and actuators to perform specific functions based on input and system status.

1.2. What is The Body Control Module Location?

Understanding the body control module location is crucial for diagnostics and replacement.

Common BCM Locations:

• Under the dashboard (driver’s or passenger’s side)

• Behind the glovebox

• In the fuse box (either cabin or engine bay)

• Under the center console

• Behind the kick panel (near the driver’s left foot)

Tip: Always refer to the vehicle’s service manual or wiring diagram to locate the exact BCM position in your car.

1.3. Differentiate BCM & TCU & ECU

Feature / Module	BCM	ECU	TCU
Full Name	Body Control Module	Engine Control Unit	Transmission Control Unit
Primary Focus	Comfort, lighting, security	Engine performance and emissions	Gear shifting and transmission control
Controls	Doors, lights, windows, alarms	Fuel injection, spark, idle, EGR	Gear shifts, torque converter, clutch
Inputs	Door switches, light sensors	O2 sensors, throttle, crank position	Speed sensors, throttle, RPM
Outputs	Relays, lighting, motors	Injectors, ignition coils, EGR valves	Shift solenoids, clutch packs
Communicates With	ECU, TCU, infotainment, sensors	TCU, BCM, ABS, IMMO	ECU, BCM, ABS
Typical Location	Under dash or in fuse box	Engine bay or near firewall	Near transmission housing

1.4. Body Control Module in Automotive: Manufacturer Variations

Different automakers implement BCMs in unique ways. Here’s a quick overview:

✅ General Motors (GM)

• BCM may integrate with other modules like the theft deterrent system

• Often mounted in the dash or underhood fuse box

✅ Ford

• Known as the Smart Junction Box (SJB) in some models

• Requires IDS or FDRS tool for programming

✅ Mercedes-Benz

• May refer to it as SAM (Signal Acquisition Module)

• Requires SCN coding with Xentry

✅ Volkswagen / Audi

• Often part of the Central Electronics Control Module

• Component protection may restrict replacement without online authorization

---

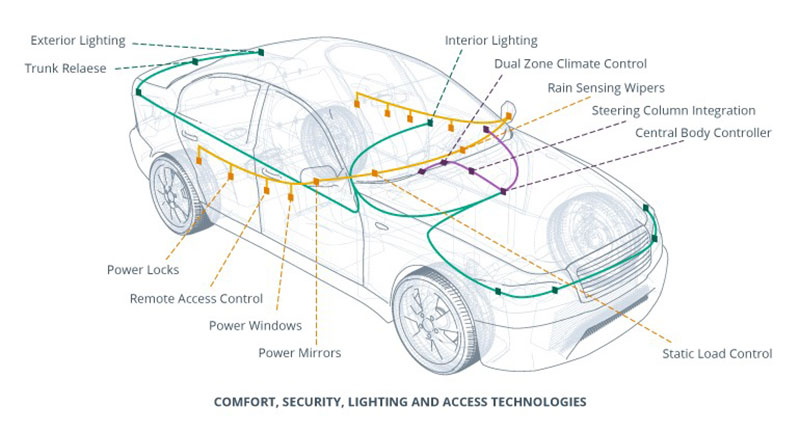

2. What Does a Body Control Module Do?

So, what does a body control module do exactly? In simple terms, it reads input signals (like switch presses), processes them based on internal programming, and then sends output signals to control corresponding functions.

Here are key systems typically managed by the body control module:

2.1. Lighting System

• Automatic headlight control

• Daytime running lights (DRLs)

• Interior lighting

• Turn signals and hazard lights

• Courtesy lights and dimming

2.2. Power Accessories

• Power windows

• Power door locks

• Power mirrors

• Sunroof/moonroof control

2.3. Security and Entry

• Keyless entry

• Anti-theft alarm system

• Immobilizer functionality

• Remote start system

2.4. Wipers and Washers

• Front and rear wiper control

• Rain-sensing wipers (in advanced models)

• Washer fluid monitoring

2.5. HVAC Integration

• Blower motor control

• A/C compressor relay signals (in some cars)

2.6. Interior Functions

• Instrument cluster communication

• Warning chimes

• Seatbelt reminders

• Interior ambient light settings

2.7. Communication with Other ECUs

• Data exchange with ECM, TCM, ABS module, etc., over the CAN bus or LIN bus.

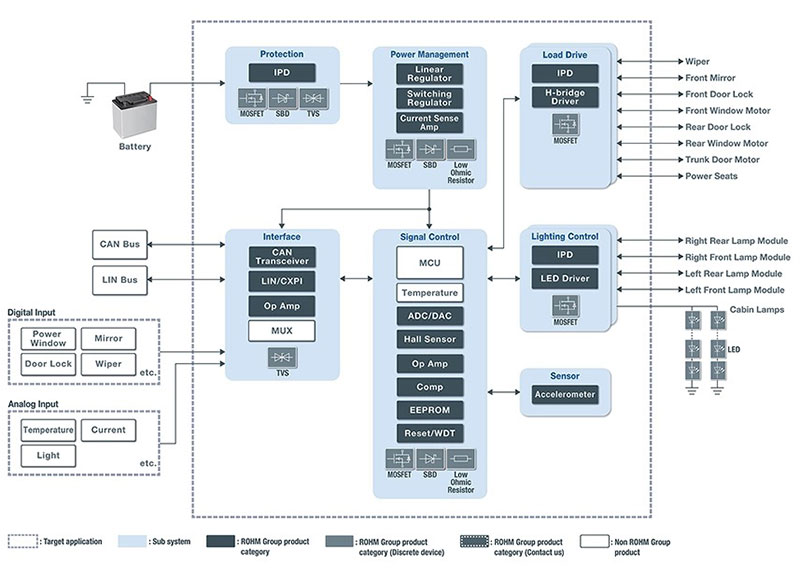

3. How the Body Control Module (BCM) Works

The Body Control Module (BCM) is a sophisticated electronic control unit that operates as the central hub for many vehicle systems related to comfort, convenience, and security. Understanding how the BCM works helps reveal why it’s essential for the smooth functioning of modern vehicles.

3.1. Central Processing Unit (CPU) and Software Logic

At its core, the BCM contains a microcontroller or microprocessor that runs specialized software programs designed to monitor inputs and control outputs.

• The CPU processes signals it receives from various switches, sensors, and communication networks.

• The software inside the BCM follows pre-programmed logic rules to decide how to respond to these inputs.

For example, the software will decide that if the driver unlocks the door and it’s dark outside, the BCM should turn on the interior lights automatically.

---

3.2. Input Signals: Gathering Information

The BCM receives input from many sources:

• Physical switches (e.g., door lock switches, window switches)

• Sensors (e.g., ambient light sensors, rain sensors)

• Remote key fobs sending wireless signals

• Other control modules via vehicle communication networks (e.g., CAN bus)

These inputs provide the BCM with real-time data about driver actions, environmental conditions, and vehicle status.

---

3.3. Processing and Decision Making

Once the BCM receives inputs, it processes the data by running internal control algorithms and decision trees based on the vehicle’s configuration and current conditions.

For example:

• If the key fob signals a door unlock and the vehicle is in “night mode,” the BCM will activate exterior and interior lighting.

• If the rain sensor detects moisture, the BCM will engage windshield wipers at the appropriate speed.

This decision-making capability enables the BCM to automate many vehicle functions without driver intervention.

---

3.4. Output Control: Activating Systems

After processing inputs, the BCM sends output signals to control various actuators and devices, such as:

• Motors (e.g., power windows, mirror adjustments)

• Relays (e.g., headlights, fog lamps)

• Alarms and buzzers

• Door lock actuators

• Dashboard lights and indicators

The BCM controls these components by sending electrical signals—either switching power on/off or sending data commands through communication buses.

---

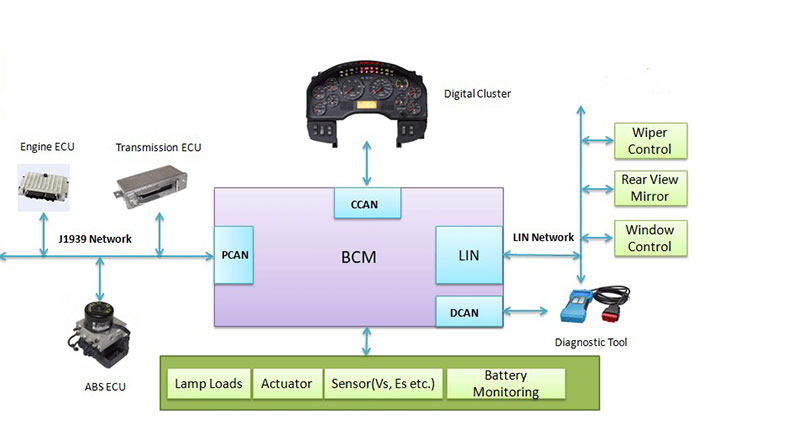

3.5. Communication with Other Modules

Modern vehicles use a network of ECUs that communicate over digital networks such as the CAN (Controller Area Network) bus. The BCM uses these networks to:

• Send status updates to other control units

• Receive commands or information from the engine control module, transmission control module, or ABS module

• Coordinate actions like immobilizer activation, automatic lighting, or warning alerts

This networked communication is essential for integrated vehicle operation and safety.

---

3.6. Power Management and Sleep Modes

The BCM also manages power consumption:

• When the vehicle is off, the BCM enters a low-power sleep mode to conserve battery.

• It monitors battery voltage and can turn off non-essential systems to prevent battery drain.

• When a key fob signal or door handle touch is detected, the BCM “wakes up” to process commands.

---

3.7. Self-Diagnostics and Fault Reporting

The BCM continuously monitors its own performance and the status of connected components. If it detects a fault, it will:

• Store a Diagnostic Trouble Code (DTC) in its memory.

• Illuminate warning lights or notify other modules.

• Allow technicians to retrieve stored faults via an OBD-II scanner for diagnosis and repair.

---

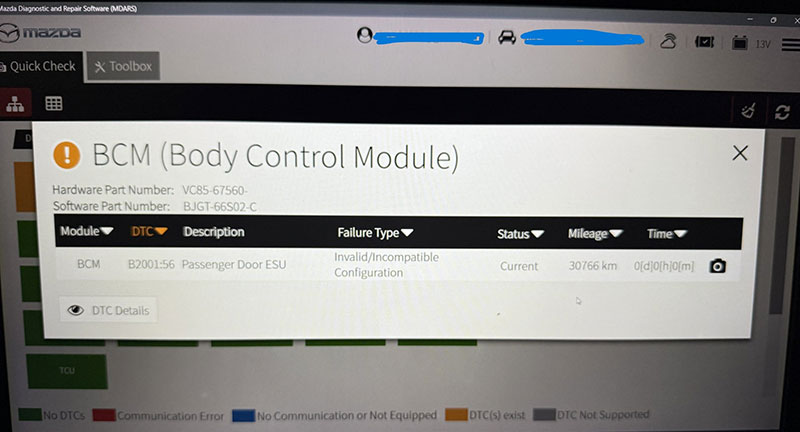

4. What Will Happen if The Body Control Module Goes Bad?

When the Body Control Module (BCM) goes bad, it can trigger a wide range of electrical malfunctions that affect comfort, convenience, and even security systems in your vehicle. Since the BCM manages and coordinates numerous body-related functions, any failure can disrupt normal operation in ways that may seem random or unrelated at first.

Here’s what you can expect if the body control module goes bad:

4.1. Electrical Systems Start Acting Erratically

The most common and noticeable sign of a failing BCM is unpredictable electrical behavior. This may include:

• Interior and dashboard lights flickering or staying on after the engine is turned off

• Power windows that stop responding

• Door locks that lock or unlock randomly

• Windshield wipers activating without input

• Horn honking by itself

• Alarm going off for no reason

This happens because the BCM sends and receives signals from switches, relays, and sensors—and if the processing goes haywire, so will the output.

4.2. Central Locking and Remote Keyless Entry Fail

If the BCM can no longer process key fob signals properly:

• Doors may not lock/unlock with the remote

• Smart key or push-button start systems may not respond

• Immobilizer system might not disengage, preventing the engine from starting

In vehicles with keyless entry and start systems, a failed BCM can completely immobilize the car, even if the mechanical components are fine.

4.3. Warning Lights and Error Messages Appear

A failing BCM may trigger various warning lights or diagnostic trouble codes (DTCs), such as:

• Check Engine Light

• Security System Warning

• Airbag or SRS Light

• ABS or Traction Control Light

Many of these lights may appear together, even if the underlying systems are working fine, due to communication issues between modules.

4.4. Failure to Communicate with Other Modules

The BCM communicates with the Engine Control Unit (ECU), Transmission Control Unit (TCU), ABS module, and more via the CAN bus. If it fails:

• You might lose real-time data exchange across modules

• Systems that depend on BCM inputs—like automatic lighting or climate control—may stop functioning

• Technicians may be unable to scan or reset codes due to loss of communication

This can complicate diagnostics and may even prevent proper repairs until the BCM issue is resolved.

4.5. Security Features May Malfunction

Many BCMs manage anti-theft systems, alarm triggers, and immobilizers. If the BCM is faulty:

• You may not be able to start the vehicle

• The car may mistakenly think it’s being tampered with and activate theft deterrents

• You might get locked out or be unable to lock the vehicle

This is particularly common in modern cars where the BCM is tied to the immobilizer system, and swapping BCMs without proper programming can trigger theft-mode lockouts.

4.6. Battery Drain Issues

A defective BCM may fail to enter sleep mode, leaving some circuits active even when the car is turned off. This results in:

• Parasitic battery drain

• Shorter battery life

• Trouble starting the car after it’s been parked for a few hours or overnight

Many users discover this issue only after multiple dead battery incidents with no obvious cause.

4.7. Vehicle May Not Start

In some cases, especially when the BCM controls ignition relays, immobilizer signals, or starter circuits, a bad BCM can prevent the car from starting at all—even if the engine and battery are perfectly fine.

You may turn the key or press the start button and get nothing in response. No clicks, no crank, no start.

---

5. How to Diagnose a Bad Body Control Module

Accurate diagnosis is key to avoiding unnecessary repairs. Here’s how to check if the BCM is faulty:

✅ Step-by-Step Diagnosis:

1. Scan for Diagnostic Trouble Codes (DTCs)
   Use a scan tool that can access BCM-specific codes.

2. Check Power and Ground Supply
   Use a multimeter to verify the BCM is receiving proper voltage and ground.

3. Inspect for Corrosion or Water Damage
   BCMs are sensitive to moisture—especially if mounted low in the dashboard or fuse box.

4. Check Wiring and Connectors
   Damaged or loose connectors can mimic BCM failure.

5. Perform a Pin-Out Test
   Compare pin voltages against service manual specs.

---

6. Some BCM Related Error Code

6.1. Mercedes-Benz BCM Error Codes

In Mercedes-Benz vehicles, the Body Control Module is often integrated into systems like the SAM (Signal Acquisition Module) or Front/Rear Signal Actuation Modules. It manages lighting, central locking, wipers, alarms, and more.

•  Common Mercedes BCM-Related DTCs:

These codes often point to internal failures, voltage issues, or software corruption. In many cases, a software update or BCM replacement (with SCN coding) is required.

6.2. BMW BCM Error Codes

BMW refers to the BCM functions under different names like Body Domain Controller (BDC) or Footwell Module (FRM) depending on the model and production year. These modules control interior lighting, window regulators, mirrors, seat memory, and central locking.

• Common BMW BCM/FRM/BDC Error Codes:

BMW BCM failures often manifest as:

• No interior lights

• Non-functional power windows/mirrors

• No-start condition (due to Terminal 15 or CAS interface errors)

Many of these errors require advanced tools like ISTA+ or E-Sys for proper diagnosis and reprogramming.

6.3. Audi BCM Error Codes

Audi uses modules such as BCM1, BCM2, and Central Electronics Control Module (J519). These modules manage:

• Headlights and taillights

• Keyless entry/start

• Steering column electronics

• Power distribution to body systems

Common Audi BCM Error Codes:

Audi BCM issues frequently affect:

• Keyless entry/start

• Interior/exterior lighting

• Immobilizer system

ODIS or VCDS tools are recommended to access these modules, check live data, perform basic settings, and reflash or replace faulty modules.

7. Can a Body Control Module Be Repaired?

Yes, in some cases, BCMs can be repaired, especially if the issue is related to solder joints, internal relays, or programming errors. However, most automotive technicians recommend replacement due to:

• Programming complexity

• Security coding (e.g., immobilizer, VIN lock)

• Lack of OEM support for repairs

---

8. How to Replace a Body Control Module

If replacement is necessary, here’s what the process generally involves:

BCM Replacement Steps:

1. Disconnect the Battery – Prevents accidental shorts.

2. Locate and Remove the Old BCM – Using basic tools.

3. Install the New Module – Ensure proper connection and mounting.

4. Program or Code the New BCM – Using a scan tool or factory software.

5. Relearn Key/Immobilizer Functions – May require special tools or dealer-level access.

Warning: Installing a used BCM without proper coding can cause security or compatibility issues.

---
