Hall Effect Sensors in Automotive Systems: Function, Uses, and Benefits

In modern automotive systems, electronic sensors play a critical role in ensuring optimal vehicle performance, safety, and efficiency. One such sensor is the Hall effect sensor. These sensors are widely used throughout today’s vehicles, from engine management to safety systems.

1. What is a Hall Effect Sensor?

A Hall effect sensor is an electronic device that detects the presence of a magnetic field and converts it into an electrical signal. It operates on the Hall effect principle, discovered by Edwin Hall in 1879. When a magnetic field is applied perpendicular to a conductor carrying current, a voltage (Hall voltage) is generated at a right angle to the current. This voltage can be measured and used to detect magnetic fields.

In automotive applications, this property allows Hall effect sensors to detect rotational speed, position, and movement of various components without physical contact, making them highly reliable and durable.

2. How Does a Hall Effect Sensor Work?

The basic structure of a Hall effect sensor includes:

• A thin strip of conductive material (usually semiconductor)
• A magnetic field source (magnet)
• Electrical circuitry to amplify and process the signal

When the sensor is placed near a magnetic field, the field exerts a force on the electrons in the conductor, causing them to accumulate on one side. This results in a measurable voltage across the strip, which varies depending on the strength of the magnetic field. The sensor’s internal circuitry amplifies this voltage and converts it into a digital or analog signal that a car’s electronic control unit (ECU) can interpret.

There are two main types of Hall effect sensors used in cars:

1. Digital Hall effect sensors: Produce on/off (binary) signals.
2. Analog Hall effect sensors: Produce continuous voltage output relative to the magnetic field strength.

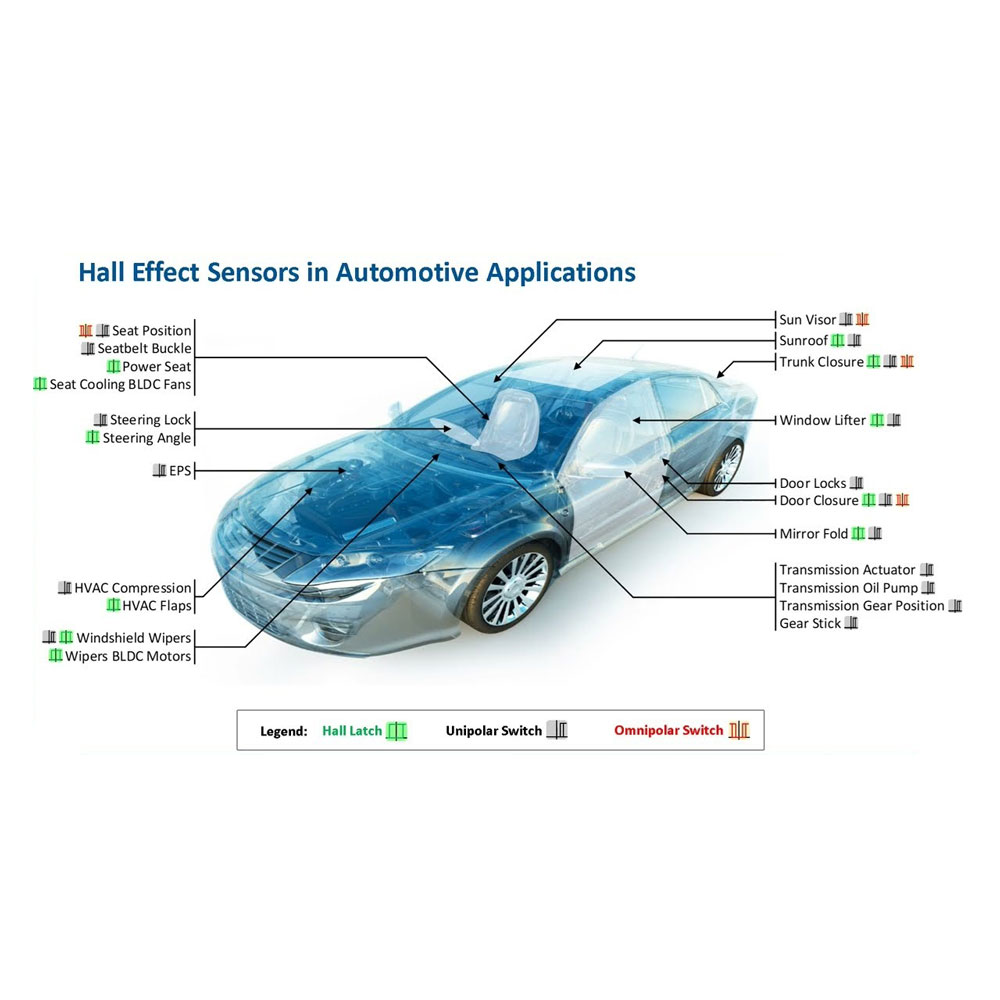

3. Car Parts That Use Hall Effect Sensors

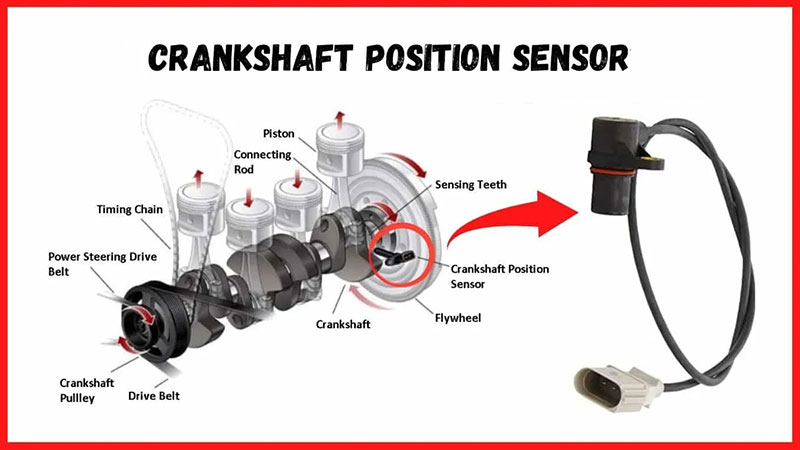

3.1. Crankshaft Position Sensor

The crankshaft position sensor uses a Hall effect sensor to monitor the position and rotational speed of the crankshaft. This information is critical for the ECU to control ignition timing and fuel injection.

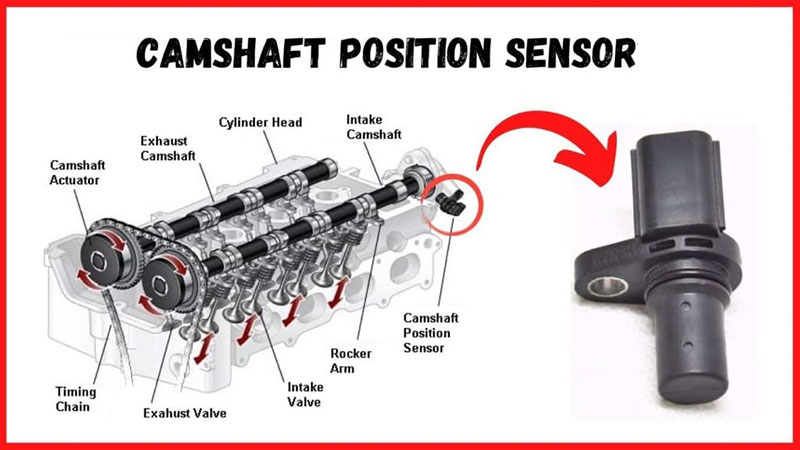

3.2. Camshaft Position Sensor

Working alongside the crankshaft sensor, the camshaft sensor ensures precise timing for valve operation. It helps optimize engine efficiency and supports variable valve timing systems.

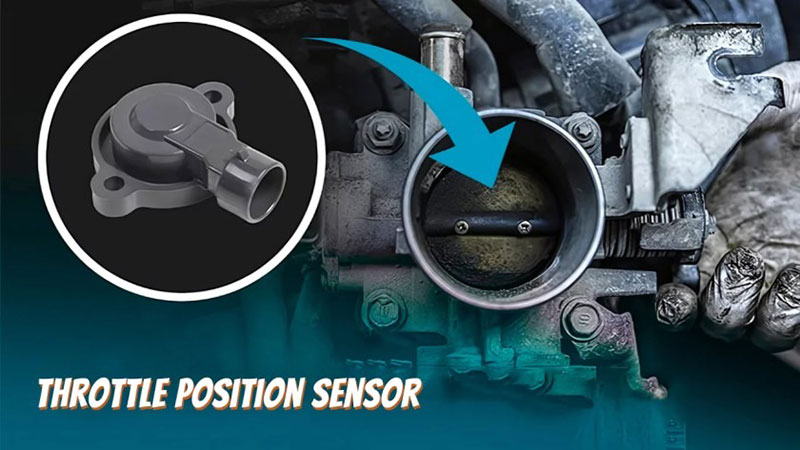

3.3. Throttle Position Sensor (TPS)

In electronic throttle control systems, a Hall effect sensor detects the position of the throttle plate, allowing the ECU to adjust engine power output accurately.

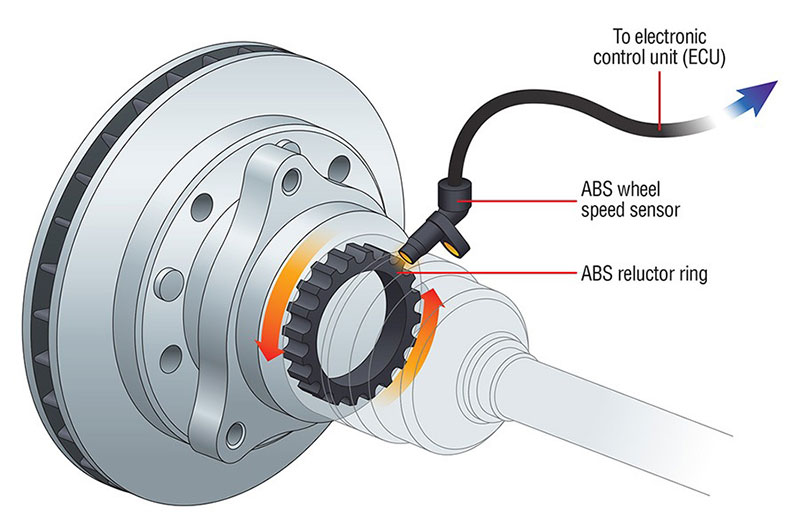

3.4. Wheel Speed Sensor (ABS Sensor)

In anti-lock braking systems (ABS), automotive Hall effect sensors monitor wheel speed. This data allows the ECU to prevent wheel lockup by modulating brake pressure.

3.5. Vehicle Speed Sensor (VSS)

Hall effect sensors detect the rotation of the transmission’s output shaft, providing speed data to the ECU and dashboard speedometer.

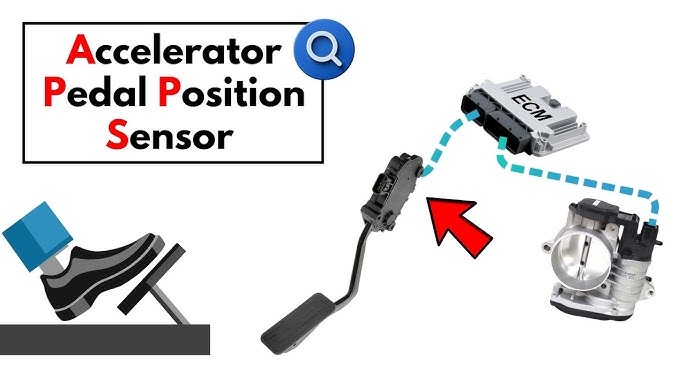

3.6. Pedal Position Sensors

Modern cars with drive-by-wire systems use Hall effect sensors on the accelerator and brake pedals to determine pedal position and relay it to the ECU.

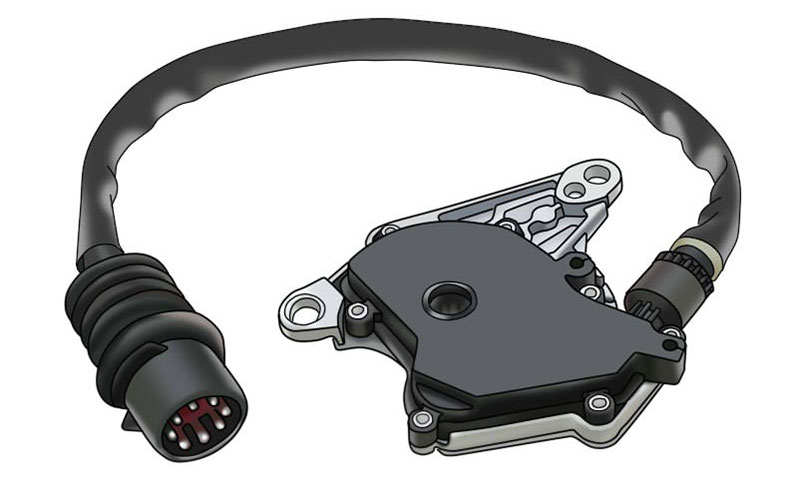

3.7. Transmission Gear Position Sensor

Some automatic transmissions use Hall effect sensors to determine gear position, ensuring accurate gear shifts and communication with the ECU.

4. Advantages of Hall Effect Sensors in Cars

Hall effect sensors offer a wide range of advantages that make them highly suitable for automotive applications. These benefits stem from their non-contact operation, solid-state construction, and ability to provide accurate, real-time data under challenging conditions. Below is a detailed breakdown of why Hall effect sensors are favored in modern vehicles:

4.1. Non-Contact Operation

• Hall effect sensors do not rely on physical contact to detect movement or position.
• This eliminates mechanical wear and significantly increases their durability and lifespan compared to traditional contact-based sensors like potentiometers or mechanical switches.
• They maintain accuracy and performance over time, even in continuous-use environments like crankshaft or camshaft monitoring.

4.2. High Reliability in Harsh Environments

• These sensors are built to withstand extreme automotive conditions such as high temperatures, moisture, oil exposure, vibration, and dust.
• Their solid-state design has no moving parts, making them resistant to shock and vibration.
• They are often sealed in rugged, weatherproof housings to ensure consistent operation across a wide range of conditions, from icy winters to hot engine bays.

4.3. Precision and Accuracy

• Hall effect sensors provide highly accurate measurements of position, speed, or rotational angle.
• They are not affected by the mechanical tolerances or frictional wear that can degrade other sensor types.
• This makes them ideal for applications that require precise feedback, such as throttle position sensing or anti-lock braking systems.

4.4. Fast Response Time

• The response of a Hall effect sensor is nearly instantaneous, allowing real-time monitoring of rapidly changing components like spinning wheels or rotating shafts.
• This fast response is critical in systems that require real-time data, such as engine control units (ECUs), traction control systems, and electronic stability programs (ESP).

4.5. Compact and Versatile Design

• Hall sensors are small and lightweight, making them easy to integrate into tight spaces within the vehicle.
• Their versatility allows them to be used in both linear and rotary sensing configurations.

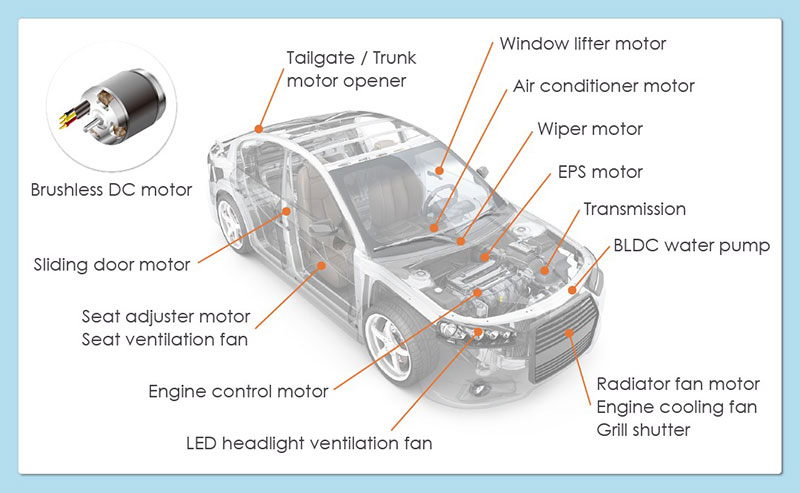

• They can be embedded in various assemblies including pedals, transmission modules, steering angle sensors, and even brushless DC motors.

4.6. Wide Operating Voltage and Temperature Range

• Many Hall effect sensors operate reliably across a broad voltage range (typically 3.3V to 24V), making them adaptable to various vehicle systems.
• They can also function in temperatures ranging from -40°C to over 150°C, which is essential for engine and underhood applications.

4.7. Low Maintenance Requirements

• Since they have no moving parts and are sealed against contaminants, Hall sensors require minimal maintenance.
• This leads to fewer service issues, lower warranty claims, and increased vehicle reliability.

4.8. Cost-Effectiveness in the Long Term

• Although the initial cost of a Hall effect sensor may be slightly higher than a basic mechanical sensor, the longer service life and reduced maintenance make it more economical over time.
• Their durability and consistent performance help reduce overall vehicle downtime and diagnostic labor costs.

4.9. Compatibility with Modern Electronics

• Hall sensors can output both digital and analog signals, making them compatible with modern microcontrollers and automotive ECUs.
• Many variants include built-in signal conditioning, fault detection, and even self-diagnostics, making integration with CAN-bus or other vehicle networks easier.

5. Signs of a Failing Hall Effect Sensor

Like any electronic component, automotive Hall effect sensors can fail due to age, exposure to extreme temperatures, or contamination. Here are some common symptoms of a failing sensor:

5.1.Engine Misfires or Rough Idling

• If the crankshaft or camshaft position sensor (both often Hall effect sensors) fails, the ECU may receive incorrect or no data about the engine’s timing.
• This can result in poor combustion, leading to misfires, irregular RPMs, and rough idling.
• Misfires may be intermittent or consistent, depending on whether the sensor is failing completely or sending erratic signals.

5.2. Hard Starting or No Start Condition

• The engine may crank but fail to start if the sensor that controls spark or fuel timing (e.g., crankshaft position sensor) is faulty.
• A completely dead Hall effect sensor may prevent the ignition or fuel injection system from functioning, resulting in a no-start condition.
• This is especially common in modern engines where the ECU relies entirely on electronic feedback to trigger ignition.

5.3. Check Engine Light (CEL) or Warning Lights

• A failing sensor will often trigger a Diagnostic Trouble Code (DTC), causing the Check Engine Light to illuminate.

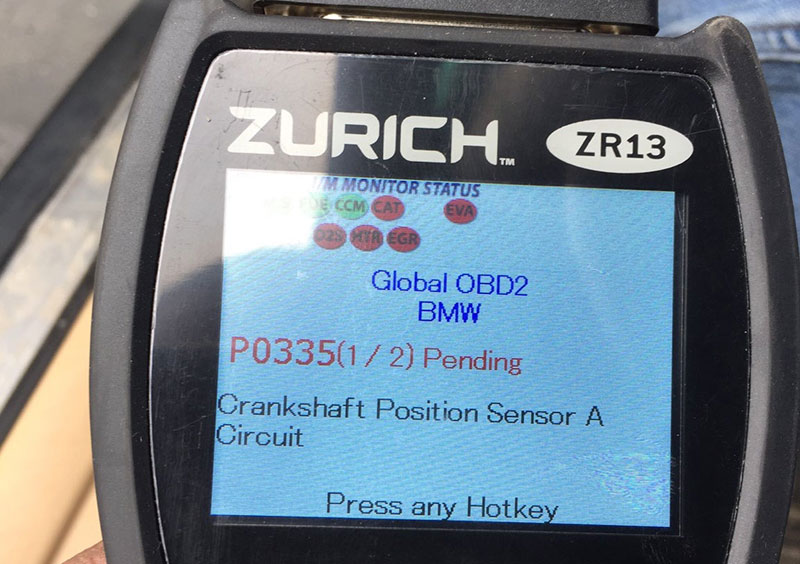

• Specific DTCs like P0335 (crankshaft position sensor circuit) or P0340 (camshaft position sensor circuit) may point directly to Hall sensor failure.
• ABS or traction control lights may appear if wheel speed sensors (which may also use Hall technology) are affected.

Related content:

• How to Fix Mercedes Fault Code P0335
• How to Fix BMW Code P0335
• Tips to Fix Audi P0340 Camshaft Error Code

5.4. Poor Acceleration or Hesitation

• If a throttle position sensor or pedal position sensor (both can use Hall effect technology) fails, the engine may not respond properly to driver inputs.
• This can lead to sluggish throttle response, hesitation when accelerating, or sudden power loss.
• The vehicle may go into “limp mode” to protect the engine or transmission.

5.5. Erratic or Inaccurate Speedometer Readings

• A faulty vehicle speed sensor (VSS) can cause the speedometer to display incorrect readings, fluctuate, or drop to zero unexpectedly.
• This can also affect transmission shifting, cruise control operation, and stability control systems.

5.6. Transmission Shifting Issues

• In vehicles where transmission control relies on Hall effect sensors (e.g., input/output shaft speed sensors), a failure can result in improper gear changes.
• Symptoms may include delayed shifting, hard shifting, or failure to shift altogether.

5.7. Increased Fuel Consumption

• If the ECU receives inaccurate engine position or throttle data, it may not optimize fuel injection timing properly.
• This inefficiency can lead to increased fuel consumption, even if no immediate drivability symptoms are present.

5.8. Intermittent Electrical Problems

• Sometimes a Hall sensor may work sporadically due to wiring issues, corrosion, or internal heat damage.
• This may cause problems that appear and disappear randomly, making diagnosis more difficult.

5.9. ABS or Traction Control Failure

• If the wheel speed sensors (which are often Hall effect types) fail or provide inconsistent data, the ABS and traction control systems may become inoperative.
• This can compromise braking performance and overall vehicle safety.

5.10. Diagnostic Scan Tool Shows No Signal or Irregular Signal

• Using an oscilloscope or scan tool, a technician may see no signal or an abnormal waveform from the sensor.
• A good Hall effect sensor typically outputs a clean square wave or consistent analog voltage depending on the type.

Conclusion

Hall effect sensors are essential components in modern vehicles, enabling accurate detection of speed, position, and movement across various systems. If you’ve ever wondered what is a Hall effect sensor, or sought to understand how does a Hall effect sensor work, this guide provides the foundational knowledge needed for both technicians and enthusiasts.

Understanding these sensors is crucial for effective diagnostics, repair, and system upgrades. As automotive technology continues to evolve, expect Hall effect sensors to remain a cornerstone of vehicle electronics.
