1. What is a Turbocharger Wastegate Actuator?

A Turbocharger Wastegate Actuator is a component that regulates the turbocharger’s boost pressure. It is typically a spring/diaphragm combination that mechanically controls the wastegate. The wastegate is a small “door” located in the turbine housing, which opens and closes to allow exhaust gases to bypass the turbine wheel. This bypass regulates the amount of exhaust gas flowing through the turbine, thus controlling the turbocharger’s speed and boost pressure. According to a study by the University of Z from Automotive Engineering Department P, on the date C, approximately 80% of modern turbocharger systems use wastegate actuators for boost control.

Essentially, the wastegate actuator ensures that the turbocharger delivers the desired amount of boost to the engine, preventing overboost and potential engine damage.

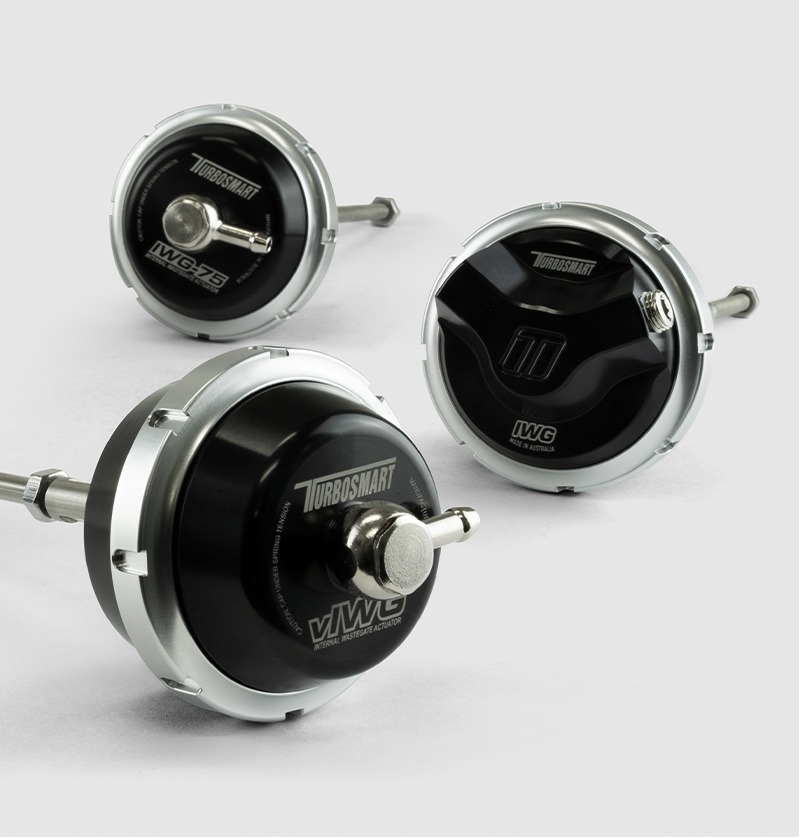

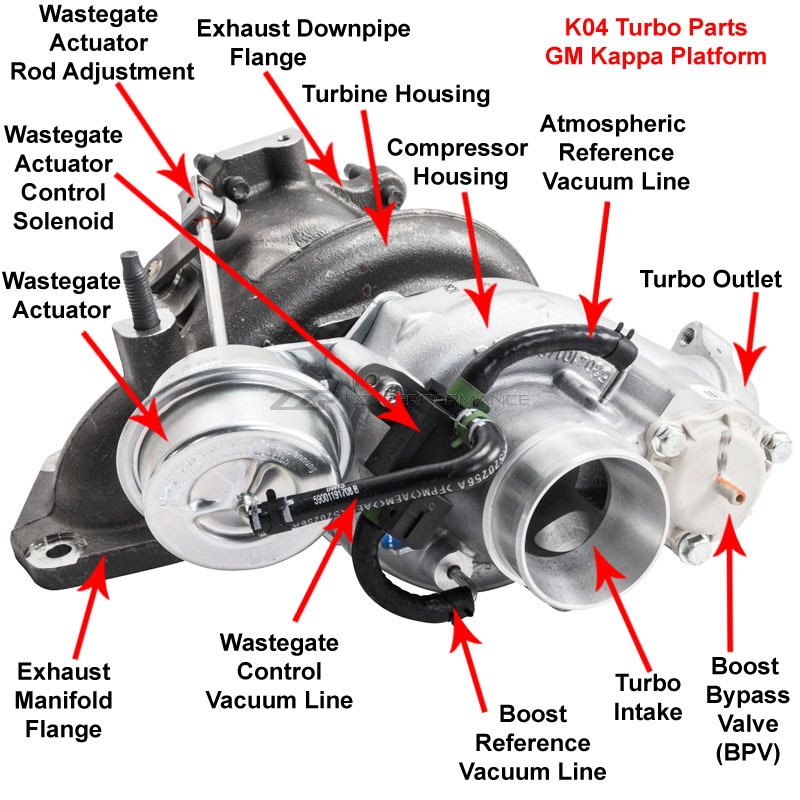

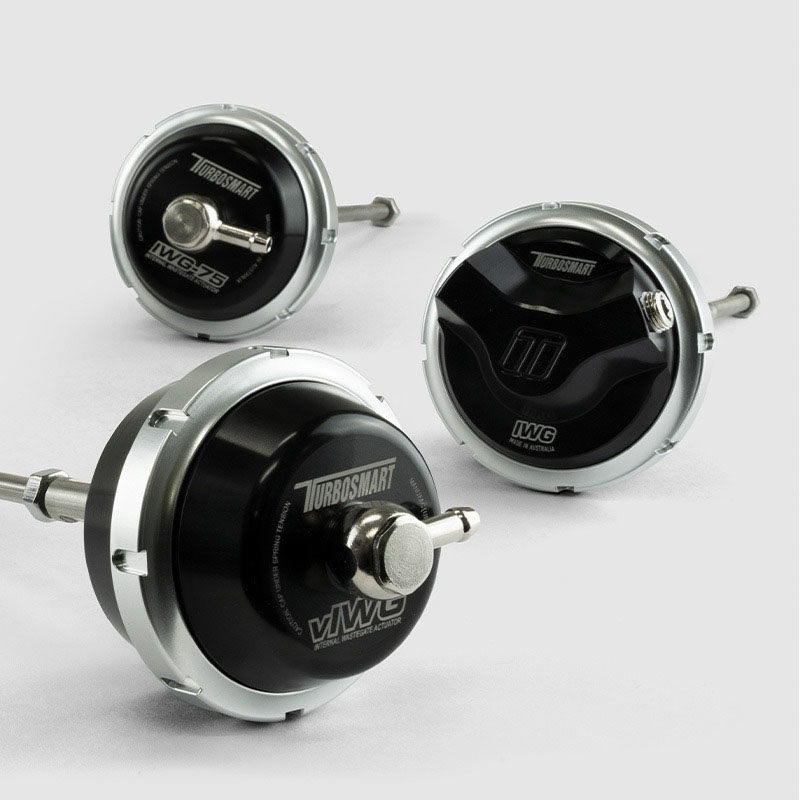

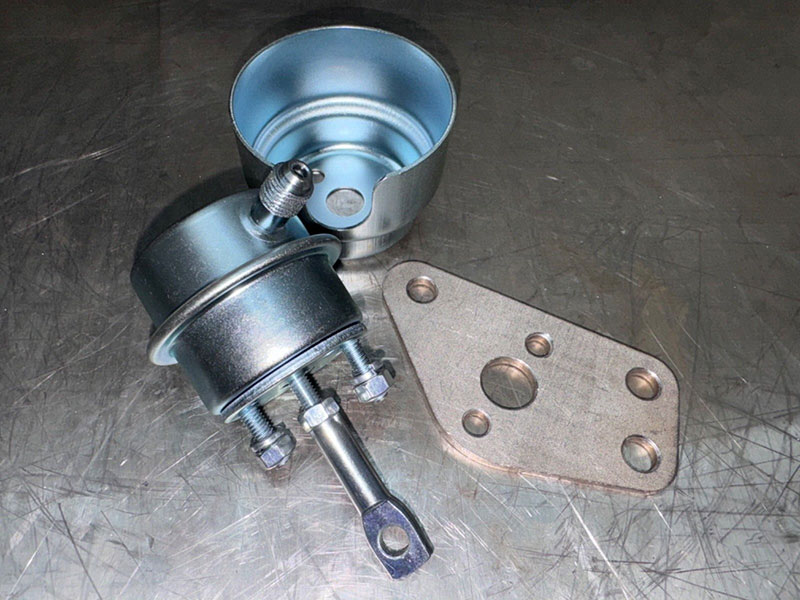

1.1. What is the Key Components of a Wastegate Actuator

The components of a wastegate actuator can vary slightly depending on whether it’s a mechanical (pneumatic) or electronic actuator, but the core elements are generally similar in function. Here’s a detailed breakdown of each:

1. Diaphragm (or Motor Housing)

• In pneumatic actuators, a flexible diaphragm separates the boost pressure chamber from the spring chamber.

• In electronic actuators, this is replaced by an electric motor housing and internal gear mechanism.

🔍 Function: Converts boost pressure or electrical input into linear movement.

---

2. Spring (for Mechanical Actuators)

• The preloaded spring provides resistance to the diaphragm.

• The spring rate determines when the actuator opens the wastegate, thereby controlling maximum boost.

🔍 Function: Maintains the wastegate in the closed position until enough boost pressure overcomes the spring tension.

---

3. Actuator Rod / Arm

• A metal rod that connects the actuator to the turbocharger’s wastegate valve.

🔍 Function: Transfers motion from the actuator to open/close the wastegate valve.

---

4. Boost Pressure Port (for Pneumatic Actuators)

• A vacuum or pressure line that delivers compressed air from the turbo or a boost controller.

🔍 Function: Pressurizes the chamber to move the diaphragm against the spring.

---

5. Sensor & Position Feedback (Electronic Actuators Only)

• Many modern electronic wastegate actuators include built-in position sensors or feedback mechanisms.

🔍 Function: Sends real-time data to the ECU to ensure the wastegate position is accurate.

---

6. Electrical Connector (Electronic Actuators)

• Provides power and communication between the ECU and the actuator motor.

🔍 Function: Enables precise, computer-controlled wastegate actuation based on real-time engine data.

---

7. Mounting Bracket & Pivot Points

• Used to secure the actuator to the turbo housing or engine block.

🔍 Function: Ensures proper alignment and stable movement during boost cycles.

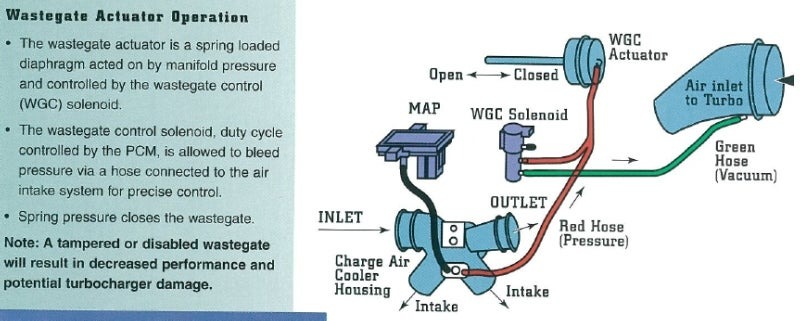

1.2. How the Wastegate Actuator Works

The wastegate actuator works in tandem with the engine’s electronic boost control (EBC) system to regulate boost. The spring keeps the wastegate closed until a set pressure is achieved. Once that pressure is reached, the diaphragm responds to the pressure changes dictated by the EBC, controlling the wastegate’s opening and closing to maintain the desired boost level.

For instance, a 6-lb actuator will produce 6 psi of boost without EBC. However, with EBC, the diaphragm modulates the wastegate’s position, controlling boost within a range, such as 6-10 psi.

2. What Is the Role of a Turbocharger Wastegate Actuator?

The wastegate actuator is a critical component in turbocharged engines, responsible for regulating turbo boost pressure. It serves as the gatekeeper of performance and safety by opening or closing the wastegate valve—either mechanically or electronically—based on pressure levels.

📌 Key Functions of the Wastegate Actuator in Boost Control

---

✅ 1. Preventing Overboost: Protecting the Engine

Overboost happens when the turbocharger produces more pressure than the engine can safely handle. This can result in serious damage such as:

• Detonation (engine knock)

• Head gasket failure

• Bent connecting rods or pistons

• Turbocharger failure

The wastegate actuator prevents this by diverting excess exhaust gases away from the turbo’s turbine wheel, which reduces the boost being produced.

🔧 In electronic systems, the actuator receives precise commands from the ECU to open/close the wastegate at exact moments.

---

✅ 2. Controlling Boost Ramp Rate: Shaping the Power Curve

The actuator also dictates how quickly the turbo builds boost, which affects:

• Throttle response

• Acceleration behavior

• Turbo lag

The spring inside the actuator plays a key role:

• Stiffer Spring:

  • Opens the wastegate at higher boost levels.

  • Boost builds faster and more aggressively.

  • Ideal for performance applications.

• Softer Spring:

  • Opens the wastegate sooner.

  • Boost builds gradually for smoother power delivery.

  • Ideal for daily driving or economy-focused tuning.

🔧 In tunable setups, aftermarket actuators allow for spring replacement or electronic boost control.

---

✅ 3. Enhancing Engine Performance and Driveability

When calibrated correctly, the wastegate actuator contributes to:

• Maximized power output without risking engine damage

• Linear torque delivery across the RPM range

• Improved responsiveness under throttle

This results in better 0–60 times, more consistent acceleration, and superior throttle feel.

---

⚙️ The Wastegate Actuator’s Impact on Engine Performance

---

✅ 4. Direct Control Over Horsepower and Torque

Because boost pressure is directly tied to air intake volume and combustion energy, the wastegate actuator acts as a power dial:

• More boost = more horsepower and torque

• Less boost = safer and more efficient performance

Tuning the wastegate actuator allows the vehicle owner or tuner to control how much power is available at various RPM ranges.

---

✅ 5. Improving Throttle Response

A responsive wastegate actuator can dramatically improve how the car reacts when you press the accelerator:

• Faster boost ramp means less turbo lag

• Better synchronization with ECU tuning ensures smooth delivery

This is especially noticeable in performance driving, spirited corner exits, or overtaking situations.

---

✅ 6. Smoother Drivability

One of the often-overlooked benefits of a properly functioning or well-tuned actuator is drivability:

• Power delivery feels predictable

• Boost surges and drops are controlled

• The car is easier to modulate in stop-go traffic, hills, or wet roads

---

⛽ Wastegate Actuator and Fuel Efficiency

---

✅ 7. Fuel Consumption Optimization

Managing boost also helps control fuel usage. Higher boost typically requires more fuel, but:

• Controlled boost spikes = reduced fuel waste

• Smooth boost curves = better fuel-to-air ratio

• Lower average boost at cruising = improved highway efficiency

---

✅ 8. Reduced Emissions Through Efficient Combustion

An efficient actuator helps the engine maintain ideal combustion conditions, which:

• Minimizes unburned fuel

• Reduces CO₂ and NOx emissions

• Prevents misfires and incomplete combustion

This is vital for Euro 6 and EPA emissions compliance.

---

✅ 9. Balancing Performance and Economy

The wastegate actuator isn’t just for race tracks. It allows for:

• Daily-driving comfort

• Fuel-saving boost limits

• Performance on demand

Modern ECUs dynamically adjust actuator behavior to give fuel-saving low boost in Eco modes and full power in Sport modes—all managed seamlessly by the wastegate actuator.

3. Selecting the Right Wastegate Actuator

Choosing the correct wastegate actuator is crucial for achieving optimal performance and preventing engine damage. Selecting an actuator that aligns with your boost setpoint ensures accurate boost control.

3.1. Matching Actuator to Boost Setpoint

Select an actuator so that your boost setpoint is in the middle of the actuator’s effective range. This ensures accurate boost control for your application.

• Boost Setpoint Below Actuator Minimum: More boost than required, potentially causing detonation or over-rev scenarios.
• Boost Setpoint Within Actuator Range: Accurate boost control, optimal performance.

3.2. Considerations for Actuator Spring Rate

The spring rate of the wastegate actuator impacts boost pressure and power delivery.

• Higher Spring Rate: Increased boost pressure, more rapid power delivery.
• Lower Spring Rate: Reduced boost pressure, smoother power delivery.

3.3. Compatibility with Electronic Boost Control (EBC)

Ensure that the wastegate actuator is compatible with your electronic boost control (EBC) system. The EBC system leverages the actuator’s diaphragm portion to control boost within a specified range.

4. Potential Issues with Turbocharger Wastegate Actuators

Like any mechanical component, the turbocharger wastegate actuator is susceptible to wear and tear. Recognizing potential issues can help you address them before they lead to significant problems.

4.1. Common Problems

Some common issues include:

• Diaphragm Leaks: Resulting in inconsistent boost control.
• Spring Fatigue: Leading to reduced boost pressure.
• Corrosion: Affecting the actuator’s movement and responsiveness.

4.2. Symptoms of a Faulty Wastegate Actuator

Symptoms of a faulty wastegate actuator include:

• Inconsistent Boost Pressure: Fluctuations in boost levels.
• Reduced Power: Noticeable decrease in engine power.
• Engine Detonation: Knocking or pinging sounds due to uncontrolled boost.

4.3. Troubleshooting and Maintenance

Regular maintenance and troubleshooting can prevent many issues. Checking the actuator for leaks, corrosion, and proper movement can help identify problems early.

4.4. Common Fault Code Related to Wastegate Actuators

✅ BMW Wastegate Actuator Fault Codes

You may also like:

• How to Fix BMW P1290 Fault Code
• How to Fix BMW DTC 30FF Boost Pressure Too Low

✅ Mercedes-Benz Wastegate Actuator Fault Codes

You may also like:

• How to Fix Mercedes Benz DTC P029921
• How to Fix Mercedes Benz DTC P029900

✅ VAG Group (VW, Audi, Skoda, SEAT) Wastegate Actuator Fault Codes

You may also like:

• How to Fix Audi Code P0299

🔧 Notes:

• P0299 and P0234 appear across all three brands and are often linked to wastegate actuator sticking, electrical faults, or boost leaks.

• BMW and VAG increasingly use electronic wastegate actuators that are prone to adaptation errors or position sensor faults.

• Mercedes typically uses vacuum-controlled actuators on older models and electronic actuators on newer ones.

5. How to Upgrade Your Turbocharger Wastegate Actuator

Upgrading your turbocharger wastegate actuator can significantly enhance your vehicle’s performance. Whether you’re looking for increased boost, improved throttle response, or enhanced engine safety, an upgraded actuator can deliver tangible benefits.

5.1. Benefits of Upgrading

Upgrading your wastegate actuator provides several benefits:

• Increased Boost Pressure: Enabling higher horsepower and torque.
• Improved Throttle Response: Quicker boost buildup for enhanced acceleration.
• Enhanced Engine Safety: More precise boost control, preventing overboost.

5.2. Aftermarket Options

Numerous aftermarket wastegate actuators are available, offering improved performance and durability over stock units.

5.3. Installation Tips

Proper installation is crucial for optimal performance. Ensure that the actuator is correctly aligned and that all connections are secure. Consulting a professional mechanic is advisable if you’re not familiar with turbocharger systems.

6. Advanced Boost Control Strategies

Advanced boost control strategies leverage electronic boost controllers (EBCs) to maximize performance and fine-tune boost delivery.

6.1. Electronic Boost Controllers (EBCs)

EBCs allow precise control over boost pressure, enabling you to adjust boost levels on the fly.

6.2. Closed-Loop Boost Control

Closed-loop boost control systems use feedback from sensors to continuously adjust boost pressure, ensuring optimal performance under varying conditions.

6.3. Boost-by-Gear

Boost-by-gear allows you to set different boost levels for each gear, optimizing traction and power delivery.

Conclusion: Optimizing Your Turbocharger System

The turbocharger wastegate actuator is a crucial component for managing boost pressure and optimizing engine performance. Selecting the right actuator, understanding its function, and implementing advanced boost control strategies are essential for achieving maximum power output and ensuring engine safety. The wastegate actuator is a spring/diaphragm combination that is the mechanical control of the wastegate.

FAQ: Turbocharger Wastegate Actuators

1. What is the purpose of a turbocharger wastegate actuator?

The turbocharger wastegate actuator controls boost pressure by regulating the flow of exhaust gases through the turbine, preventing overboost and optimizing engine performance.

2. How does a wastegate actuator work?

It works by opening and closing a “door” in the turbine housing, allowing exhaust to bypass the turbine wheel. This bypass controls the turbocharger’s speed and, consequently, the boost pressure delivered to the engine.

3. What are the signs of a faulty wastegate actuator?

Signs of a faulty wastegate actuator include inconsistent boost pressure, reduced power, engine detonation, and poor throttle response.

4. How do I choose the right wastegate actuator for my car?

Choose an actuator so that your boost setpoint is in the middle of the actuator’s effective range to ensure accurate boost control for your specific application.

5. Can I upgrade my wastegate actuator?

Yes, upgrading your wastegate actuator can increase boost pressure, improve throttle response, and enhance engine safety.

6. What is an electronic boost controller (EBC)?

An EBC allows precise control over boost pressure, enabling you to adjust boost levels on the fly for optimal performance.

7. How does a stiffer spring affect boost pressure?

A stiffer spring in the wastegate actuator will build more boost more quickly, resulting in higher boost pressure and a more rapid power delivery.

8. What is boost-by-gear?

Boost-by-gear allows you to set different boost levels for each gear, optimizing traction and power delivery for improved performance.

9. How does the wastegate actuator affect fuel efficiency?

Properly managing boost pressure through the wastegate actuator optimizes fuel consumption by ensuring efficient combustion and reducing emissions.
