Understanding the Selective Catalytic Reduction (SCR) System: A Comprehensive Guide

The Selective Catalytic Reduction (SCR) system is a crucial component in modern diesel vehicles, designed to reduce harmful nitrogen oxide (NOx) emissions. AutoExplain provides expert insights and solutions to optimize your SCR system’s performance, ensuring environmental compliance and efficient vehicle operation. Let’s delve into the details of this vital system, exploring its function, maintenance, and troubleshooting.

1. What is the Selective Catalytic Reduction (SCR) System?

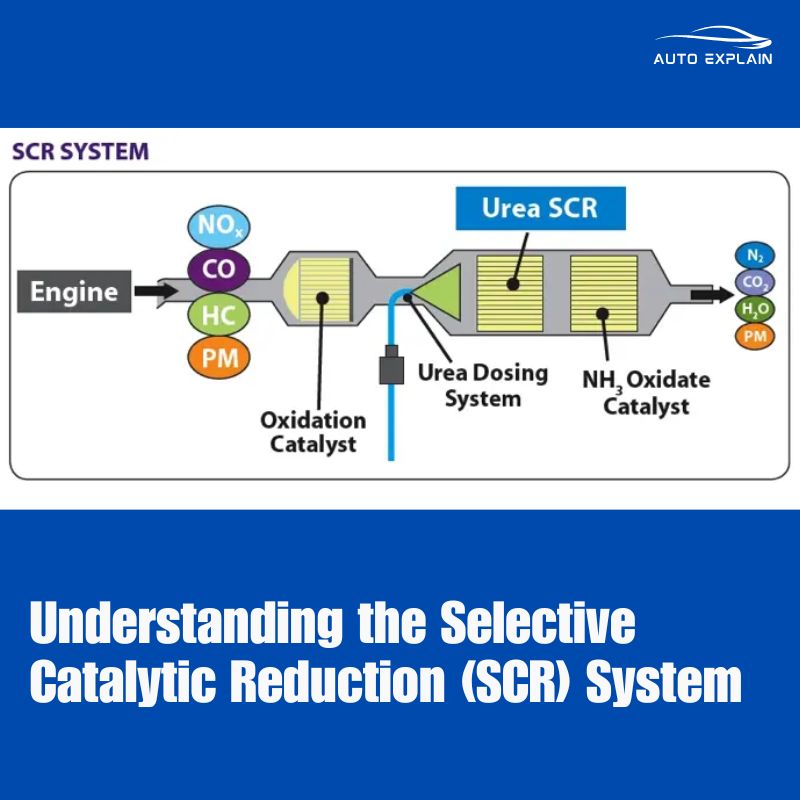

The Selective Catalytic Reduction (SCR) system is an advanced emission control technology used in diesel engines to reduce nitrogen oxides (NOx) into harmless substances like nitrogen and water. It involves injecting a reductant, typically Diesel Exhaust Fluid (DEF), into the exhaust stream, which then reacts with NOx in a catalytic converter. This process significantly lowers the amount of NOx released into the atmosphere, helping diesel vehicles meet stringent emission standards. This system is integral for modern diesel engines striving for cleaner emissions, using a catalyst to convert NOx into environmentally benign nitrogen and water.

1.1. Key Components of the SCR System

To fully grasp how SCR systems operate, it’s essential to understand their key components:

• DEF Tank: Stores the Diesel Exhaust Fluid (DEF), usually a 32.5% solution of urea in water.
• DEF Injector: Sprays DEF into the exhaust stream.
• SCR Catalyst: Facilitates the chemical reaction between DEF and NOx.
• Control Unit: Manages the DEF injection based on engine operating conditions.
• Sensors: Monitor NOx levels and other parameters to ensure optimal performance.

1.2. The Chemical Process Behind SCR

The SCR system operates on a simple yet effective chemical principle. DEF, when injected into the hot exhaust gases, decomposes to form ammonia (NH3). This ammonia then reacts with NOx on the surface of the catalyst, converting it to nitrogen (N2) and water (H2O).

The primary chemical reaction is:

4NO + 4NH3 + O2 → 4N2 + 6H2O

This reaction significantly reduces the amount of NOx emitted from the vehicle, contributing to cleaner air quality.

2. Why is the SCR System Important?

The SCR system is crucial for modern diesel vehicles due to increasingly stringent emission standards aimed at reducing air pollution. Without an effective SCR system, diesel engines would emit high levels of NOx, contributing to smog, acid rain, and respiratory problems. By significantly reducing NOx emissions, SCR systems help diesel vehicles meet environmental regulations and improve air quality, ensuring a healthier environment.

2.1. Regulatory Requirements Driving SCR Adoption

Government regulations worldwide, such as those set by the U.S. Environmental Protection Agency (EPA) and the European Union (Euro standards), mandate the reduction of NOx emissions from diesel vehicles. These regulations have driven the widespread adoption of SCR technology in both on-road and off-road diesel applications.

2.2. Environmental Benefits of SCR Technology

SCR technology offers significant environmental benefits by reducing NOx emissions, a major component of smog and acid rain. Lowering NOx levels contributes to improved air quality, reduced respiratory health issues, and a healthier environment overall.

2.3. How SCR Systems Contribute to Sustainable Transportation

By enabling diesel engines to meet stringent emission standards, SCR systems play a crucial role in promoting sustainable transportation. They allow diesel vehicles to remain a viable option for heavy-duty applications while minimizing their environmental impact, aligning with global efforts to reduce pollution and promote eco-friendly transportation solutions.

3. Diesel Exhaust Fluid (DEF): The Heart of the SCR System

Diesel Exhaust Fluid (DEF) is a key component of the Selective Catalytic Reduction (SCR) system, essential for reducing nitrogen oxide (NOx) emissions in diesel vehicles. It is a non-toxic solution composed of 32.5% automotive-grade aqueous urea and 67.5% purified water. Functioning as the reducing agent, DEF reacts with NOx in the exhaust stream, converting it into harmless nitrogen and water, thereby ensuring that diesel vehicles meet stringent emission standards.

Alt: DEF filling port location on a pickup truck, showing the blue cap for easy identification.

3.1. Composition and Quality Standards of DEF

DEF is a precisely formulated solution comprising 32.5% high-purity urea and 67.5% deionized water. The American Petroleum Institute (API) rigorously tests DEF to ensure it meets industry-wide quality standards, guaranteeing optimal performance and preventing damage to the SCR system.

3.2. Proper Storage and Handling of DEF

To maintain its quality and effectiveness, DEF must be stored properly. It should be kept in a clean, dry place, away from direct sunlight, and at temperatures between 12°F (-11°C) and 86°F (30°C). Proper handling prevents contamination and degradation, ensuring the SCR system functions optimally.

3.3. What Happens if DEF is Contaminated?

Contaminated DEF can severely damage the SCR system. Impurities can clog the injector, reduce catalyst efficiency, and even cause corrosion. Using only high-quality, certified DEF is essential to protect the SCR system and maintain its performance.

4. Maintaining Your SCR System: Best Practices

Maintaining your Selective Catalytic Reduction (SCR) system is essential for optimal performance and longevity. Regularly checking DEF levels, using high-quality DEF, and promptly addressing any warning signs can prevent costly repairs and ensure your vehicle meets emission standards. AutoExplain offers expert advice and solutions to keep your SCR system in top condition.

4.1. Monitoring DEF Levels and Refilling

Regularly monitor DEF levels and refill as needed to ensure the SCR system functions correctly. Low DEF levels trigger warning indicators, and failure to replenish can lead to engine derating or lockout. For light-duty vehicles, DEF refills often coincide with oil changes, while heavy-duty vehicles require more frequent attention based on usage.

4.2. Inspecting for Leaks and Damage

Regularly inspect the DEF tank, lines, and injector for leaks or damage. Addressing these issues promptly prevents DEF loss, maintains system pressure, and ensures efficient operation.

4.3. Cleaning and Replacing Components

Over time, components like the DEF injector and catalyst can become clogged or degraded. Regular cleaning or replacement of these parts ensures optimal performance and prevents system failures.

5. Troubleshooting Common SCR System Problems

Troubleshooting common Selective Catalytic Reduction (SCR) system problems involves recognizing symptoms like warning lights, reduced engine performance, and increased emissions. Diagnosing issues with the DEF injector, sensors, or catalyst requires careful attention and the right tools. AutoExplain provides comprehensive diagnostic and repair solutions to address these challenges effectively.

5.1. Identifying Symptoms of a Failing SCR System

Symptoms of a failing SCR system include:

• Illuminated warning lights (e.g., check engine light, DEF warning light)
• Reduced engine power or performance
• Increased fuel consumption
• Higher NOx emissions
• Difficulty starting the engine

5.2. Diagnosing DEF Injector Issues

A malfunctioning DEF injector can cause various problems, including poor DEF atomization, incorrect DEF dosing, and system failure. Diagnostic steps include:

• Checking for clogs or leaks
• Testing the injector’s electrical connections
• Verifying the spray pattern
• Using diagnostic tools to read error codes

5.3. Dealing with Sensor Malfunctions

Sensors play a crucial role in monitoring SCR system performance. Malfunctioning sensors can provide incorrect data, leading to improper DEF dosing and reduced efficiency. Diagnostic steps include:

• Checking sensor connections
• Testing sensor output with a multimeter
• Replacing faulty sensors

5.4. Addressing Catalyst Problems

The SCR catalyst can degrade over time due to contamination, thermal stress, or aging. Symptoms of a failing catalyst include:

• Increased NOx emissions
• Reduced conversion efficiency
• Error codes related to catalyst performance

6. The Role of Coding and Programming in SCR System Maintenance

Coding and programming play a crucial role in SCR system maintenance, enabling technicians to diagnose issues, update software, and calibrate components for optimal performance. AutoExplain offers advanced coding and programming solutions, ensuring your SCR system operates efficiently and meets emission standards.

6.1. How Coding Helps in Diagnosing SCR Issues

Coding allows technicians to access detailed diagnostic information from the vehicle’s ECU, including error codes, sensor data, and system parameters. This information helps pinpoint the root cause of SCR system problems, reducing diagnostic time and ensuring accurate repairs.

6.2. Reprogramming the ECU for Optimal Performance

Software updates and recalibrations can improve SCR system performance, optimize DEF dosing, and enhance overall efficiency. Reprogramming the ECU ensures the system operates with the latest software and calibrations, maximizing its effectiveness.

6.3. Calibrating Sensors and Actuators

Proper calibration of sensors and actuators is essential for accurate SCR system operation. Coding and programming tools allow technicians to calibrate these components, ensuring they function within specified parameters and contribute to optimal system performance.

7. Future Trends in SCR Technology

Future trends in Selective Catalytic Reduction (SCR) technology include advancements in catalyst materials, improved DEF dosing strategies, and integration with hybrid and electric vehicles. These innovations aim to further reduce emissions, enhance system efficiency, and meet increasingly stringent environmental regulations. AutoExplain stays at the forefront of these developments, providing cutting-edge solutions for your evolving needs.

7.1. Advancements in Catalyst Materials

Research is ongoing to develop more efficient and durable catalyst materials. These advanced materials can operate at lower temperatures, improve NOx conversion rates, and extend the lifespan of the SCR system.

7.2. Improved DEF Dosing Strategies

Precise DEF dosing is crucial for optimal SCR system performance. Future strategies aim to optimize DEF injection based on real-time engine conditions, reducing DEF consumption and minimizing ammonia slip.

7.3. Integration with Hybrid and Electric Vehicles

SCR technology is also being adapted for use in hybrid and electric vehicles with diesel range extenders. Integrating SCR systems into these vehicles helps further reduce emissions and improve overall environmental performance.

8. Benefits of Using AutoExplain for Your SCR System Needs

Choosing AutoExplain for your SCR system needs provides access to expert knowledge, advanced diagnostic tools, and comprehensive repair solutions. Our commitment to quality, innovation, and customer satisfaction ensures your SCR system operates efficiently, meets emission standards, and contributes to a cleaner environment. Contact AutoExplain today at Address: 1500 N Grant ST Sten Denver, Colorado, United States, Whatsapp: (+84)967469410, Email: [email protected], or visit our website at autoexplain.com to learn more.

8.1. Expert Diagnostics and Repair Solutions

AutoExplain offers expert diagnostic services to identify and address SCR system problems quickly and accurately. Our technicians use advanced tools and techniques to ensure your system is functioning optimally.

8.2. High-Quality Coding and Programming Services

Our coding and programming services ensure your SCR system is running the latest software and calibrations. We optimize your system for peak performance, reducing emissions and improving fuel efficiency.

8.3. Comprehensive Support and Training

AutoExplain provides comprehensive support and training to help you maintain and troubleshoot your SCR system. Our resources and expertise empower you to keep your system running smoothly.

9. Real-World Applications of SCR Systems

SCR systems are widely used in various applications, from heavy-duty trucks and buses to off-road equipment and marine vessels. Their versatility and effectiveness in reducing NOx emissions make them an essential technology for meeting environmental regulations worldwide.

9.1. SCR in Heavy-Duty Trucks and Buses

Heavy-duty trucks and buses are major contributors to NOx emissions. SCR systems are standard equipment in these vehicles, significantly reducing their environmental impact and helping them comply with emission standards.

9.2. SCR in Off-Road Equipment

Off-road equipment, such as construction machinery and agricultural vehicles, also benefits from SCR technology. These systems help reduce emissions in demanding operating conditions, contributing to cleaner air quality in industrial and rural areas.

9.3. SCR in Marine Vessels

Marine vessels are another significant source of NOx emissions. SCR systems are increasingly used in ships and boats to reduce their environmental footprint and meet stricter maritime emission regulations.

10. Frequently Asked Questions (FAQs) About SCR Systems

10.1. What is DEF and why is it important for my SCR system?

DEF, or Diesel Exhaust Fluid, is a non-toxic solution of urea and purified water that is essential for the Selective Catalytic Reduction (SCR) system. It helps convert harmful nitrogen oxides (NOx) into harmless nitrogen and water, reducing emissions from diesel vehicles.

10.2. How often should I refill the DEF tank in my vehicle?

The frequency of DEF refills depends on your vehicle’s usage and DEF tank size. Light-duty vehicles may need refills every oil change, while heavy-duty vehicles require more frequent attention based on operating conditions.

10.3. Can I use any brand of DEF in my SCR system?

It’s crucial to use high-quality DEF that meets industry standards, such as those set by the American Petroleum Institute (API). Using substandard or contaminated DEF can damage the SCR system.

10.4. What happens if I run out of DEF while driving?

Running out of DEF can trigger a series of warnings, including visual and audible alerts. If not replenished, the engine may derate, limiting vehicle speed, and eventually, the starting system may lock out.

10.5. How do I know if my SCR system is not working correctly?

Symptoms of a failing SCR system include illuminated warning lights, reduced engine power, increased fuel consumption, higher NOx emissions, and difficulty starting the engine.

10.6. Can coding and programming help diagnose SCR system problems?

Yes, coding and programming allow technicians to access detailed diagnostic information from the vehicle’s ECU, helping pinpoint the root cause of SCR system problems and ensuring accurate repairs.

10.7. How can I improve the performance of my SCR system?

Improve SCR system performance by regularly monitoring DEF levels, using high-quality DEF, inspecting for leaks and damage, and cleaning or replacing components as needed.

10.8. What are the future trends in SCR technology?

Future trends include advancements in catalyst materials, improved DEF dosing strategies, and integration with hybrid and electric vehicles, all aimed at further reducing emissions and enhancing system efficiency.

10.9. Why should I choose AutoExplain for my SCR system needs?

AutoExplain offers expert diagnostics, high-quality coding and programming services, and comprehensive support and training, ensuring your SCR system operates efficiently and meets emission standards.

10.10. How can I contact AutoExplain for SCR system support?

You can contact AutoExplain at Address: 1500 N Grant ST Sten Denver, Colorado, United States, Whatsapp: (+84)967469410, Email: [email protected], or visit our website at autoexplain.com for more information.

Conclusion

The Selective Catalytic Reduction (SCR) system is a critical technology for reducing NOx emissions from diesel vehicles and promoting a cleaner environment. Proper maintenance, timely troubleshooting, and advanced coding and programming solutions are essential for ensuring optimal SCR system performance. AutoExplain is your trusted partner for all your SCR system needs, providing expert services and support to keep your vehicles running efficiently and meeting emission standards. Don’t hesitate, click on the Whatsapp contact button to discover more about the coding and programming solutions from AutoExplain that are tailored for your automotive repair shop.
