2026 TOPDON RLink X7 J2534 Pass-Thru Diagnostic Interface Support CAN FD DoIP ECU Programming Coding for Multi-Brand Vehicles

Description

General Overview – TOPDON RLink X7

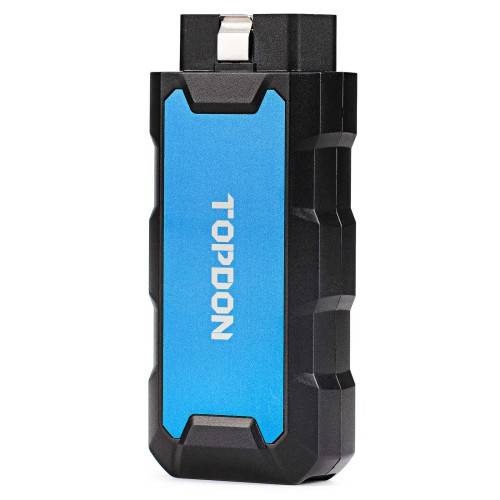

The TOPDON RLink X7 is a professional VCI / OEM diagnostic dongle designed for OEM-level vehicle diagnostics, ECU coding, and programming using official manufacturer software. The device works with a PC and supports a wide range of OE diagnostic platforms such as Xentry, ISTA, PIWIS, GDS2, Tech2Win, IDS, and other manufacturer tools.

RLink X7 is built to support modern vehicle communication technologies including J2534 Pass-Thru, D-PDU API, DoIP, and CAN-FD, ensuring reliable communication with new-generation vehicle networks. These protocols allow technicians to perform advanced diagnostic and programming operations on modern vehicles where traditional VCI devices may have compatibility limitations.

The device is especially suitable for independent workshops and professional technicians who need OEM-level access for one or several vehicle brands. It is commonly used for servicing European vehicles such as Mercedes-Benz, BMW, and Porsche, as well as other brands including GM, Ford, Nissan, and Toyota.

When purchasing the device, J2534 mode is included by default, allowing it to work with many OEM software platforms. Additional brand-specific licenses can be purchased depending on the workshop’s needs, enabling deeper integration with manufacturer diagnostic systems.

Package Information:

• Weight: 0.5 kg (0.88 lb)
• Package size: 18 × 11.8 × 7.6 cm (7.07 × 4.63 × 2.98 inch)

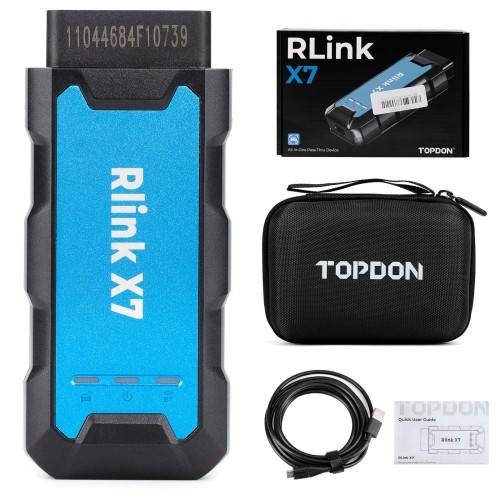

Package Includes:

• RLink X7 diagnostic interface

• USB Type-C connection cable

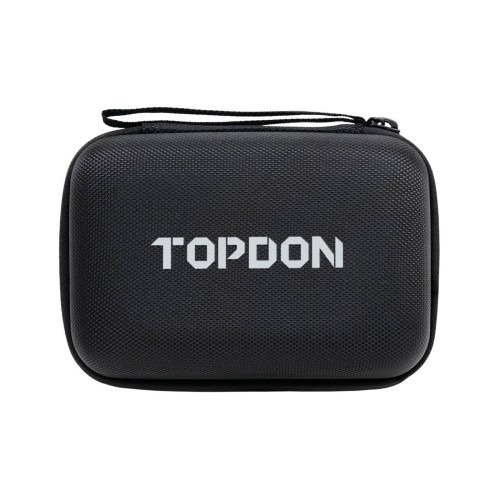

• Protective carrying case

• User manual

Hardware & Technical Specifications

• Operating Voltage: 9–18 V via the vehicle’s OBD port.
• Operating Temperature: Operating range from −10 °C to 50 °C. Storage temperature from −20 °C to 70 °C.
• Device Size & Weight: Approximate dimensions 114.7 × 51 × 29 mm with a weight of about 90 g.

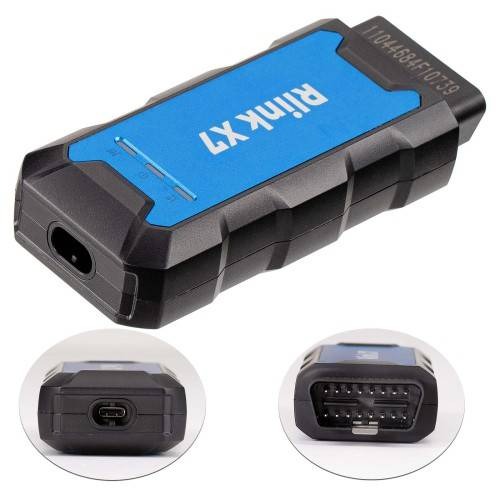

• PC Connection: USB Type-C connection only (no WiFi / Bluetooth), typically supplied with a ~2 m USB 2.0 cable.
• Multi-Bus Support: RLink X7 features a built-in multiplexer system, allowing automatic switching between different OBD communication pins and supporting multiple vehicle communication standards.
• CAN Communication: The device supports three CAN channels operating simultaneously, including CAN-FD and CAN-CC, which improves communication speed and enables the device to handle multiple ECUs or vehicle networks at the same time.

Communication Standards & Supported Protocols

Standard Interfaces:

• J2534 Pass-Thru – Supports OEM online and offline ECU programming.
• D-PDU API – Commonly used with European OEM software such as Xentry, ODIS, ISTA/P, and similar diagnostic platforms.

Vehicle Communication Protocols:

• CAN / CAN-FD – High-speed communication for modern vehicle networks.
• DoIP (Diagnostics over IP) – Supports diagnostics over Ethernet for newer vehicle architectures.
• K-Line / KWP2000 / J1850 – Supported depending on the vehicle brand and installed driver.

Modern Vehicle Support:

With CAN-FD and DoIP capability, the RLink X7 works effectively with many 2018–2024+ vehicles, where older or clone VCI devices may struggle. This is especially useful for newer platforms such as Mercedes-Benz, GM CAN-FD systems, and VW/Audi MQB EVO architectures.

Supported Vehicle Brands & OEM Software

Depending on the selected license package, the TOPDON RLink X7 supports multiple vehicle brands through official OEM diagnostic software.

• GM: Supports Tech2Win, GDS2, DPS, SPS, compatible with GM vehicles from 2000–2025. In many cases, the device can function similarly to MDI / MDI2 interfaces.
• Mercedes-Benz: Compatible with Xentry XDOS (C6 mode & J2534). It can also work with Vediamo or DTS Monaco depending on the configuration. The supported Xentry environment works with XDOS Openshell and supports newer models such as W447 and other modern platforms.
• BMW: Supports ISTA and E-Sys, allowing diagnostics, coding, and offline programming for BMW vehicles approximately from 2002–2025, depending on the license package.
• Porsche: Works with PIWIS 3 / PIWIS 4, supporting diagnostics, coding, and programming via DoIP, CAN-FD, and J2534 communication.
• Ford: Compatible with IDS and FORScan diagnostic software.
• Nissan: Supports Consult III / Consult III+ platforms.
• Other Brands: Brands such as Toyota, Honda, VW/Audi, Fiat, Alfa Romeo, Lancia, Dodge, Ram, and Jeep can be supported via J2534 or D-PDU using their corresponding OEM diagnostic software.

Note: RLink X7 is not a standalone diagnostic tool with its own application. It functions as an OEM VCI interface that works with a PC and official manufacturer software, similar to other professional interfaces such as VXDIAG VCX, Bosch VCI, or GM MDI.

Diagnostic & Programming Functions

Depending on the vehicle brand and OEM software used, the RLink X7 supports a wide range of professional diagnostic and ECU programming functions.

OEM-Level Diagnostics:

• Read and clear DTC (Diagnostic Trouble Codes) for all vehicle systems
• View live data and perform actuator tests
• Guided troubleshooting depending on the OEM software
• Coding and adaptation functions
• Service reset, transmission relearn, steering angle calibration, battery registration, and other maintenance procedures (if supported by the OEM software)

ECU Programming:

• Online programming through official OEM servers when a valid account is available (e.g., SPS, Xentry Online, ISTA Online)
• Offline coding and programming for supported packages such as BMW, Mercedes-Benz, and Porsche depending on license activation
• ECU software updates, calibration updates, module replacement, and ECU reflashing

Performance & Stability:

• With support for CAN-FD and DoIP communication, RLink X7 provides fast and stable diagnostic and programming performance, especially on modern vehicles.
• In many practical cases, it delivers better stability than typical clone VCI devices, particularly when working with GM, Ford, Nissan, and Mercedes-Benz OEM software.

Main Advantages & Limitations

Advantages:

• Supports CAN-FD and DoIP, along with J2534 and D-PDU standards, making it suitable for modern vehicles, especially new Mercedes-Benz (Xentry), GM, and VAG platforms.
• Provides OEM-level diagnostics and ECU programming, and in many cases can function similarly to GM MDI / Tech2 or Mercedes C6 interfaces.
• Multi-brand support within a single VCI, with the ability to add additional brand licenses when needed.
• RLink Platform is easy to use, with synchronized drivers, free firmware updates, and access to technical resources and case libraries.
• Tested on over 10,000 vehicles, aiming to deliver better stability compared to many generic clone VCIs.

Limitations:

• USB connection only, without WiFi or Bluetooth, which may be less convenient when working away from the vehicle or without a nearby laptop.
• Some configurations only work with Xentry XDOS Openshell environments, so compatibility with certain Xentry setups may require verification.
• For users needing a more universal passthrough interface with additional standards (e.g., RP1210 or remote features), other models such as RLink Lite or RLink J2534 may offer more flexibility.
• The RLink X7 is best suited for workshops focusing on specific brands, particularly European vehicles and deep OEM software work (Xentry, PIWIS, BMW tools).

Overall Comparison: RLink X7 vs VCX SE vs Tabscan T6 Lite

Criteria	TOPDON RLink X7	VCX SE	Tabscan T6 Lite
Manufacturer	Topdon	VXDIAG	Eucleia
Supply Price	$150	$180	$120
PC Driver Platform	RLink Platform	VX Manager	TabScan / J2534 Driver
Main Communication Standards	J2534, D-PDU, DoIP, CAN-FD	J2534, DoIP (no CAN-FD)	J2534, DoIP, CAN-FD, PDU
PC Connection	USB Type-C (wired)	USB Type-C, WiFi, WLAN, DoNET Remote	USB + Bluetooth
CAN-FD Support	Yes	No (DoIP only, no CAN-FD)	Yes (optimized for newer Benz / BMW / VAG / Porsche)
DoIP Support	Yes	Yes	Yes
D-PDU / PDU Support	D-PDU supported (optimized for European OEM software)	Mainly J2534 + DoIP	PDU supported (optimized for VAG / Benz / BMW)
Typical Usage	OEM VCI focused on European vehicles and GM, brand licenses available separately	Multi-brand diagnostic interface, one device for many vehicle brands	OEM VCI focused on European and Japanese vehicles, strong OE emulation support
Updates	Free firmware/driver updates via RLink Platform	Firmware/license updates depending on package	Updates via portal, brand licenses purchased separately

Summary:

• RLink X7 focuses on OEM-level diagnostics and programming, especially for European brands and GM.
• VCX SE is designed as a multi-brand diagnostic interface with broader coverage but fewer advanced communication protocols.
• Tabscan T6 Lite is another OEM-style VCI, particularly strong for modern European vehicles thanks to CAN-FD and PDU support.

RLink X7 Device & License Pricing

Base Device:

• RLink X7 Device (J2534 Mode) – $150

Optional Brand Licenses:

• Mercedes-Benz – $50
• VAG (VW / Audi / Skoda / Seat) – $50
• BMW – $50
• Ford – $35
• Nissan – $35
• GM – $35
• Mazda – $35
• Porsche – $50
• JLR (Jaguar Land Rover) – $30
• Honda – $30
• Volvo – $30
• Toyota – $30
• Subaru – $30
• Chrysler / Dodge / Jeep / RAM – $30
• Mitsubishi – $30
• Hyundai – $30
• Kia – $30
• Roewe / MG – $30
• Full Brand License (All Supported Brands) – $680

Note: The RLink X7 device includes J2534 mode by default. Brand licenses can be *purchased separately depending on the vehicle brands you need to support.

The TOPDON RLink X7 is a professional OEM-level VCI interface designed for workshops and technicians who require reliable diagnostics and ECU programming using official manufacturer software. With support for J2534, D-PDU, DoIP, and CAN-FD, the device is well suited for working with modern vehicle platforms, particularly European brands such as Mercedes-Benz, BMW, Porsche, and VAG, as well as manufacturers like GM, Ford, and Nissan.
