CG FC200 ECU Programmer Full Version Support 4200 ECUs

Description

FC200 ECU Programmer is a professional ECU programming tool designed for advanced automotive technicians and ECU tuning specialists. Positioned within the ECU tuning tools category, the CG FC200 ECU Programmer Full Version supports over 4,200 ECU types and offers flexible operation through OBD, Bench, and Boot modes, allowing safe and efficient access to engine control units across a wide range of vehicle platforms.

Developed for in-depth ECU work, FC200 enables reliable reading and writing of EEPROM, PFlash, DFlash, and external Flash, with built-in checksum verification and data protection mechanisms. It is widely used for ECU backup, restoration, cloning, VIN correction, immobiliser data handling, and advanced ECU servicing on Bosch-based systems, BMW, Mercedes-Benz, VAG, Hyundai, and Kia vehicles.

AutoExplain provides FC200 in two configurations: the standard FC200 package for core ECU programming tasks, and the FC200 Full Kit equipped with extended adapters for transmission and advanced ECU access. This allows workshops and independent specialists to select the most suitable solution based on their technical requirements and workflow.

Let’s learn more about these car tuning tools in the article below!

FC200 ECU Programmer Overview

The FC200 ECU Programmer is a professional-grade ECU programming solution developed for advanced automotive technicians, ECU repair specialists, and performance tuning workshops. Designed to handle complex control unit operations, FC200 delivers stable and secure access to engine control modules through OBD, Bench, and Boot modes, covering the majority of modern vehicle platforms on the market.

With support for more than 4,200 ECU types, FC200 enables comprehensive ECU data management, including full backup, data restoration, module cloning, VIN modification, and immobiliser data operations. The tool is especially effective on Bosch-based ECUs, as well as systems used by BMW, Mercedes-Benz, Volkswagen Group, Hyundai, and Kia.

FC200 prioritises data integrity and module safety by integrating intelligent communication checks, automatic checksum calculation for PFlash, and multi-layer data verification. These features help reduce the risk of ECU damage during read/write operations, making it suitable for both daily workshop use and advanced engineering tasks.

AutoExplain offers the FC200 in two configurations: a standard version for core ECU programming needs, and a Full Kit equipped with extended adapters for transmission ECUs and advanced no-disassembly access. This flexible packaging allows professionals to choose the setup that best matches their technical scope and workflow.



FC200 ECU Programmer – Package Options

To meet different technical requirements and workshop setups, AutoExplain offers the FC200 ECU Programmer in two configurations: the Standard Version and the Full Kit. Both share the same core software and ECU coverage, while the difference lies in hardware expansion and workflow flexibility.

FC200 ECU Programmer – Standard Version

This is the base configuration of the FC200 ECU Programmer, providing all essential hardware for ECU reading and writing via OBD, Bench, and Boot modes.

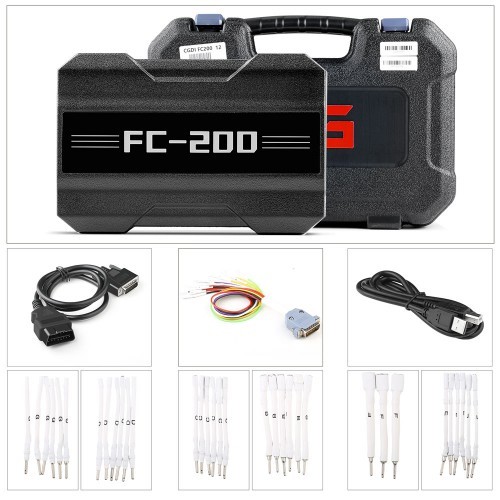

Package includes:

• Protective plastic carrying case

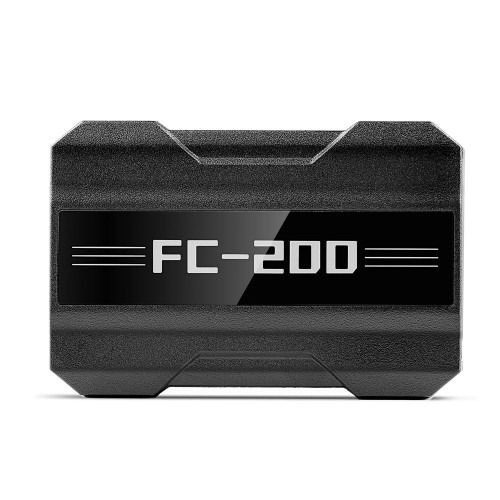

• FC200 ECU Programmer main unit
• OBD2 to FC200 cable
• Bench pin connection cable
• USB cable (FC200 to computer)
• Basic pin wires for bench / boot mode

The FC200 Standard Version is designed for technicians who focus on mainstream ECU programming, diagnostics, and cloning tasks. It supports ECU access via OBD, Bench, and Boot modes, providing a solid foundation for most engine control unit operations.

This package is ideal for workshops that already have experience with ECU removal and basic bench connections, or those primarily working through OBD access.

Key characteristics:

• Full ECU read/write capability (EEPROM, DFlash, PFlash)
• OBD programming without ECU removal on supported vehicles
• Bench and Boot mode access for locked or protected ECUs
• Automatic checksum calculation for supported ECUs
• Suitable for daily ECU repair, backup, and tuning preparation work

FC200 ECU Programmer – Full Kit

The Full Kit includes the complete Standard Version and adds a professional adapter set that enables direct ECU and EGS access without opening the control unit or soldering on supported models.

Package includes:

• Protective plastic carrying case
• FC200 ECU Programmer main unit
• OBD2 to FC200 cable
• Bench pin connection cable
• USB cable (FC200 to computer)
• Basic pin wires for bench / boot mode
• Bosch MPC5XX adapter
• 6HP & 8HP transmission adapters
• Engine ECU adapters for MSV90, N55, N20, B48, B58
• Free DTC OFF function (software-enabled)

The FC200 Full Kit is built for advanced professionals who require maximum ECU and transmission coverage with minimal disassembly. In addition to the standard hardware, this package includes extended adapters that enable direct read/write and cloning for selected engine and gearbox control units without opening the ECU housing or performing soldering.

This significantly improves efficiency, reduces physical risk to modules, and is especially valuable for high-end BMW and ZF transmission work.

Additional advantages of the Full Kit:

• Dedicated adapters for 6HP & 8HP transmission ECUs
• Support for MSV90, N55, N20, B48, B58 (and selected variants)
• MPC5XX adapter for broader ECU processor compatibility
• Faster workflow with no-ECU-opening operations on supported models
• Ideal for complex ECU and EGS cloning scenarios

Key Features of the FC200 ECU Programmer

The FC200 ECU Programmer is engineered for professional ECU programming, repair, and data management, offering a wide range of advanced features with a strong focus on safety, accuracy, and flexibility.

Intelligent ECU Identification

• Smart identification function to verify ECU communication before any operation
• Detects incorrect wiring and connection issues in advance
• Reads ECU chip type, hardware version, and firmware information
• Reduces the risk of ECU damage caused by improper setup

Advanced Data Protection & Safety

• Automatic checksum correction for PFlash on most Bosch ECUs
• Built-in data verification after each write operation
• Online checksum validation to ensure firmware integrity
• Maximised protection for ECU chips and control modules

Comprehensive ECU Read & Write Support

• Full read/write access to EEPROM, DFlash, PFlash, and external flash (if available)
• Supports complete data backup and restore
• Selective memory region writing for advanced workflows

ECU Cloning Without Online Synchronisation

• Clone ECU data from original to replacement modules
• No manufacturer online access required
• Automatic checksum calculation and data verification
• Supports regional data writing for safer cloning operations

ISN Reading for BMW & MINI

• Direct ISN reading via OBD for all BMW and MINI models
• Bench mode ISN reading supported
• Covers multiple BMW generations
• Ideal for all-keys-lost scenarios and immobiliser repair

VIN Modification Capability

• Fixes double VIN issues
• Resolves VIN mismatch after ECU replacement
• Supported across a wide range of Bosch ECUs

Anti-Theft & ECU Protection Functions

• IMMO OFF support for selected Hyundai/Kia MEG17 and Bosch EDC17 ECUs
• TPROT OFF for Bosch MEDC17, BMW MEVD17/EDC17, and Hyundai/Kia MED(G)17/EDC17
• New DTC OFF function (v1.2.9.0 and later) supporting over 30 ECU types
• OBD readiness status repair for “Not Ready” monitor issues

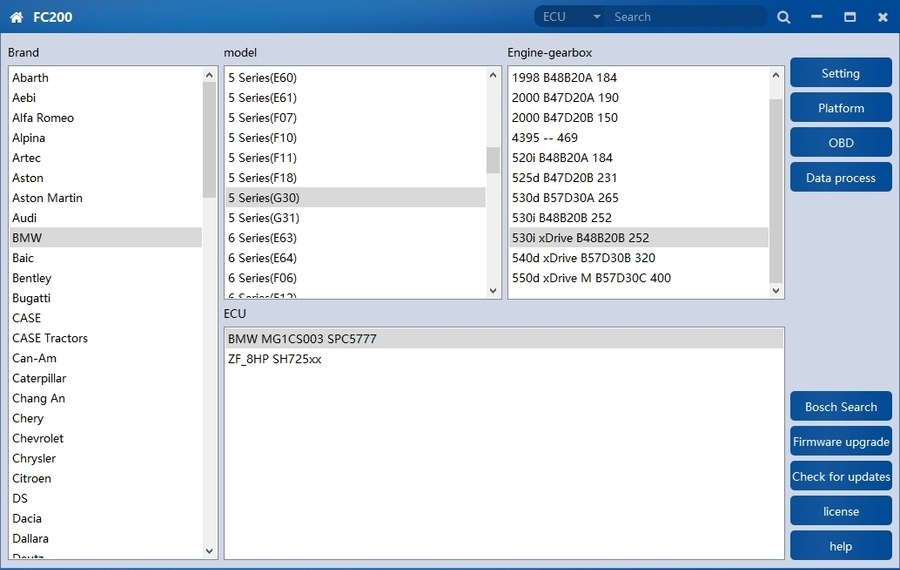

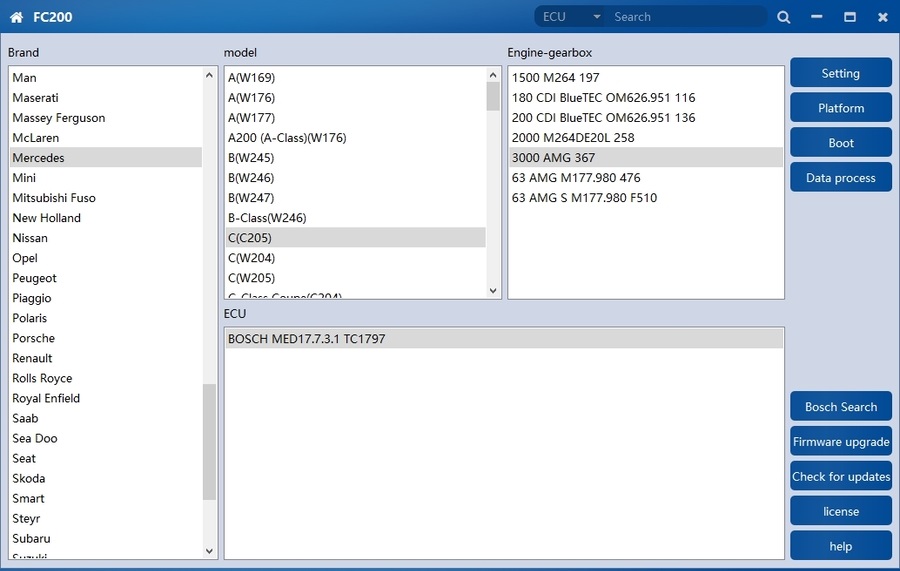

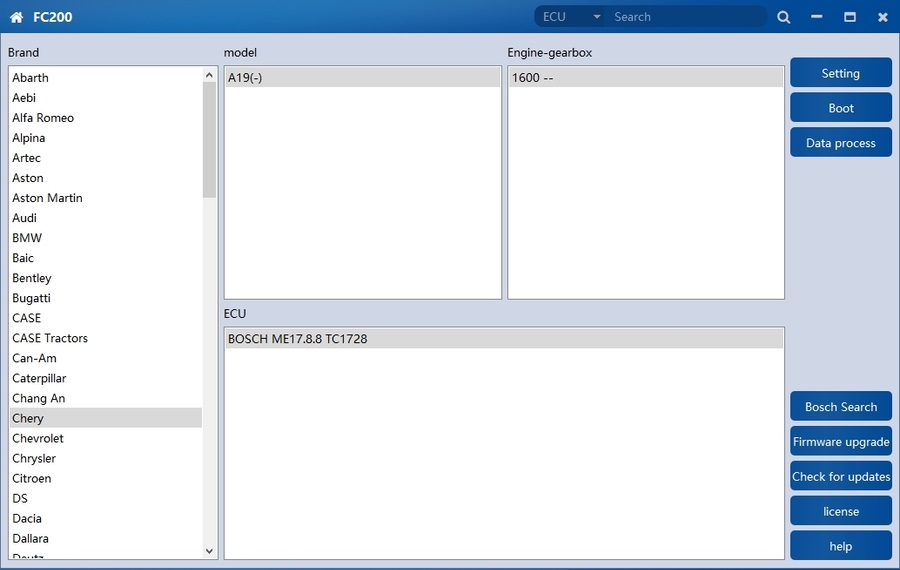

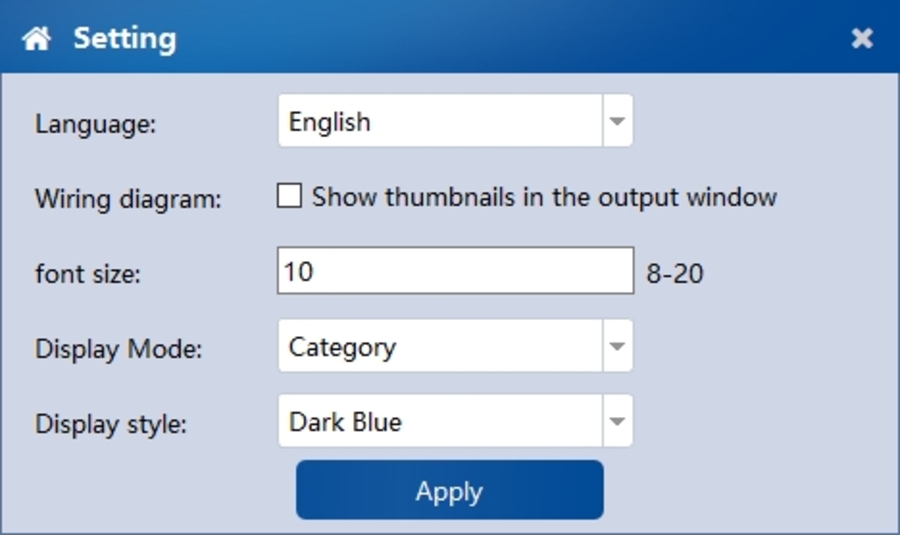

User-Friendly Software Interface

• Brand → model → ECU structured navigation
• Search by Bosch number or ECU model

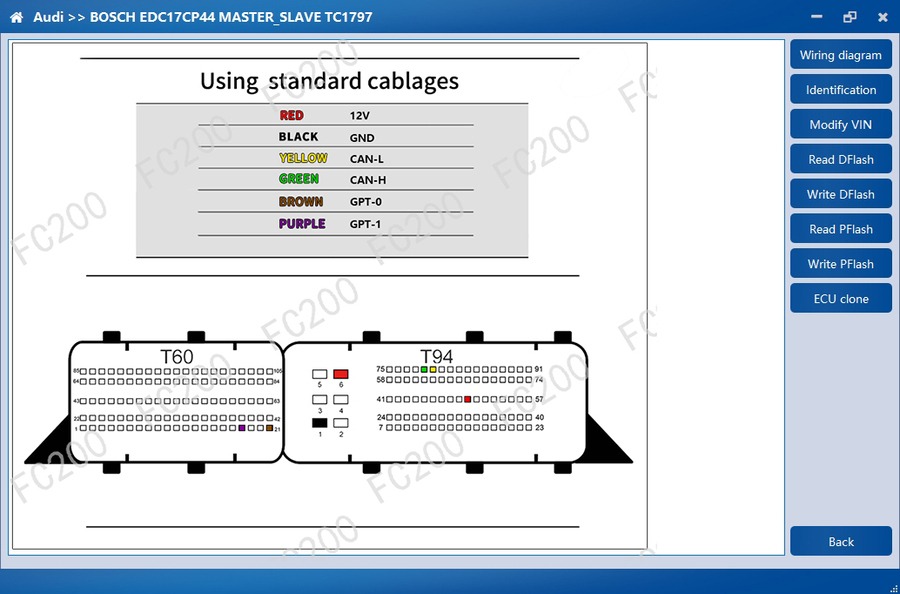

• Clear, colour-coded wiring diagrams with 1:1 pin mapping
• Reduces setup time and minimises connection errors

Wide ECU Coverage

• Supports over 4,200 ECU types
• Covers approximately 80% of vehicles currently on the market
• Compatible with multiple platforms, including Bosch, Continental, and more

Working Modes of FC200 ECU Programmer

The FC200 ECU Programmer is designed for professional ECU programming and supports three working modes, allowing technicians to choose the safest and most effective method depending on ECU type and protection level.

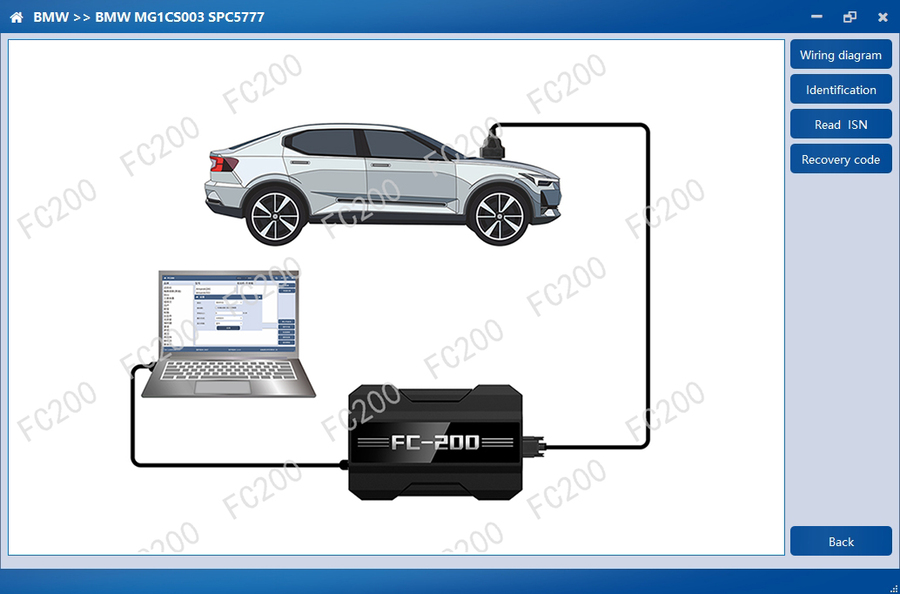

1. OBD Mode (On-Board Diagnostics)

OBD mode allows direct communication with the ECU through the vehicle’s standard OBD2 port without removing the control unit.

• Connection via standard 16-pin OBD2 port
• No ECU disassembly, no drilling or opening required
• Supports over 98% of ECUs through OBD access
• Ideal for fast maintenance and routine programming tasks
• Preserves original vehicle parts and seals

Limitation: Some newer or highly protected ECUs may restrict OBD access and require Bench or Boot mode.

2. Bench Mode (Platform Mode)

Bench mode is used after removing the ECU from the vehicle and connecting directly via ECU pins.

• ECU is removed and connected on the workbench
• Connection via DB15 adapter or model-specific pinout
• Detailed wiring diagrams are provided directly in the software
• Full read and write access without OBD restrictions
• Suitable for locked or partially protected ECUs

Advantage: Provides deeper access than OBD mode while remaining safer and less complex than Boot mode.

3. Boot Mode

Boot mode offers the highest level of access and is used when ECUs are fully locked in OBD and Bench modes.

• Direct connection to the processor boot pins (e.g. GPT-0, GPT-1)
• Requires probing test points or soldering
• Enables recovery and unlocking of heavily protected ECUs
• Essential for advanced repair and data recovery scenarios

Important Note: Boot mode requires high technical skill. Incorrect wiring or probing may result in permanent ECU damage.

Summary: With OBD, Bench, and Boot modes, the FC200 ECU Programmer provides flexible and professional-grade access for ECU diagnostics, programming, cloning, and recovery across a wide range of vehicle platforms.

FC200 ECU Programmer: ECU Data Read & Write Capability

The FC200 ECU Programmer provides comprehensive data access, allowing professional technicians to safely read, write, back up, and restore ECU data across multiple memory areas.

Supported Data Areas

FC200 supports full access to the main ECU memory structures:

• EEPROM: Complete read and write from the chip level, typically ranging from 1 KB to 32 KB, storing immobiliser data, VIN, and configuration parameters.
• DFlash (Data Flash): Read and write dynamic data and calibration-related information used by the ECU during operation.
• PFlash (Program Flash): Read and write firmware and program data, including operating logic and control algorithms.
• External Flash: Supported on newer ECUs equipped with external memory chips.

Data Security & Integrity

• Automatic checksum calculation for PFlash on most Bosch ECUs
• Built-in data verification after writing
• Secure backup and restore functions to prevent data loss
• Online checksum validation to ensure data integrity

Advanced Data Operations

• Selective data writing by memory region
• ECU data cloning between identical modules
• Safe recovery of corrupted or partially programmed ECUs

Professional-Level Control

With deep access to ECU memory and built-in safety mechanisms, the FC200 ECU Programmer is suitable for advanced diagnostics, ECU repair, replacement, and professional tuning workflows.

Advantages & Important Limitations

Key Advantages

• Supports OBD, Bench, and Boot modes for flexible ECU access
• Covers 4,200+ ECU types, suitable for most modern vehicles
• Full read/write support for EEPROM, DFlash, PFlash, and external Flash
• Automatic PFlash checksum correction on most Bosch ECUs
• Built-in backup, restore, and data verification
• ECU cloning without OEM online synchronisation
• BMW & MINI ISN reading via OBD and Bench
• VIN modification, IMMO OFF, TPROT OFF, and DTC OFF (ECU-dependent)

Important Limitations

• No support for airbag reset, mileage correction, or key programming
• EDC16 ECUs have limited support and no automatic checksum correction
• Checksum works on PFlash only and requires an internet connection
• TCU cloning (ZF 6HP / 8HP) is not guaranteed 100%
• Boot mode requires advanced skills and carries risk of ECU damage
• Online account login and device binding are mandatory

Who Should Buy the FC200 ECU Programmer?

The FC200 ECU Programmer is best suited for professionals and experienced users who need deep ECU access and advanced data control.

• Professional automotive technicians working on engine control units
• ECU repair specialists dealing with ECU recovery and cloning
• Performance tuners and remappers needing full memory read/write
• Workshops handling BMW, Mercedes, VAG and Bosch-heavy vehicles
• Users requiring ISN reading and advanced ECU functions
• Technicians who perform bench-level and boot-level ECU access

Why Buy the FC200 ECU Programmer from AutoExplain?

Choosing where to purchase your FC200 ECU Programmer matters. At AutoExplain, we ensure you get not just the tool, but the support and confidence to use it effectively.

Trusted Product Quality

• Genuine FC200 ECU Programmer with verified functionality
• Clearly documented package contents for both Standard and Full Kit

Professional Tech Support

• Dedicated technical support for software installation and updates
• Guidance on setup, wiring diagrams and mode selection
• Assistance resolving ECU communication and operation questions

Warranty & After-Sales Assurance

• Warranty coverage on hardware issues
• Support channels for troubleshooting beyond purchase
• Clear refund and return policy if the product fails to work as expected

Clear Purchase Experience

• Transparent product descriptions and comparisons
• Assistance before, during and after purchase
• Available support via WhatsApp and Email

Value-Added Extras

• Access to private technical support group
• Guides and documentation included with purchase

The FC200 ECU Programmer is a reliable, professional-grade solution for ECU programming, cloning, and data recovery. With flexible working modes, wide ECU support, and stable performance, it is a solid choice for workshops and advanced technicians who need precise and safe ECU operations.

Looking for a genuine FC200 ECU Programmer with professional support? Choose AutoExplain for trusted products, technical guidance, and dependable after-sales service. Contact us now WhatsApp: +1 (936) 289 6695.
