P1570 Audi Engine Control Module Disabled – Here’s the Real Reason

If you’ve encountered the P1570 Audi fault code or seen “Engine Control Module Disabled” pop up during a scan, don’t panic. This issue is common on many Audi and VW vehicles and is usually tied to immobilizer system failure or communication breakdowns between your ECU and the key recognition system.

In this comprehensive guide, we’ll walk you through what causes the P1570 Audi error, how to diagnose it like a pro, and exactly how to fix the Engine Control Module Disabled error—whether you’re a seasoned mechanic or a DIY enthusiast.

---

1. What Is the P1570 Audi Fault Code?

The P1570 Audi fault code, also known as 17978 in VAG-specific systems, is a diagnostic trouble code (DTC) that indicates a serious communication failure between the vehicle’s Engine Control Module (ECM) and the immobilizer system. This fault essentially puts the engine in a lockdown mode, preventing it from starting.

1.1. Official Code Definitions:

Depending on your scan tool or the vehicle model, you may see the code worded in one of these ways:

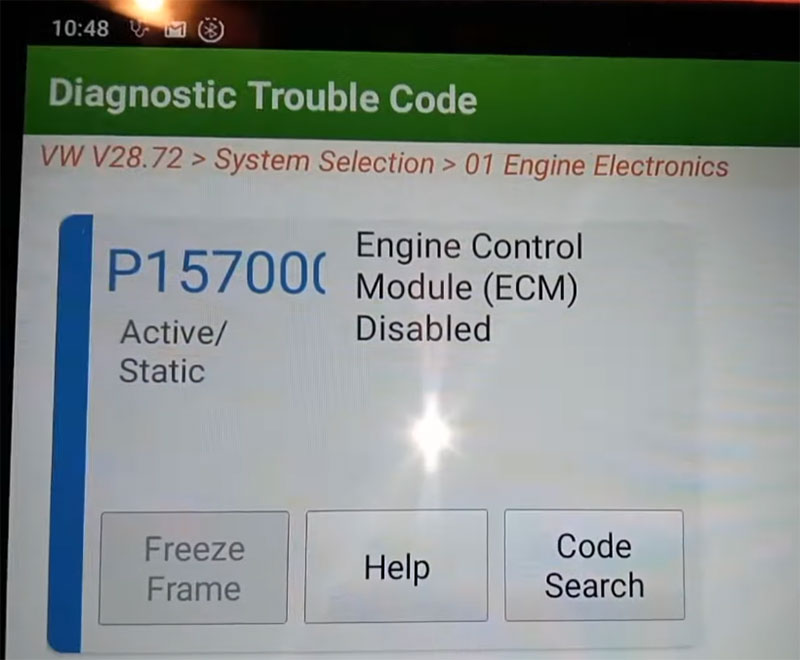

• P1570 – Engine Control Module Disabled (on Snap On,…)

• P1570 – Engine Control Module Locked (on ODIS Service,..)

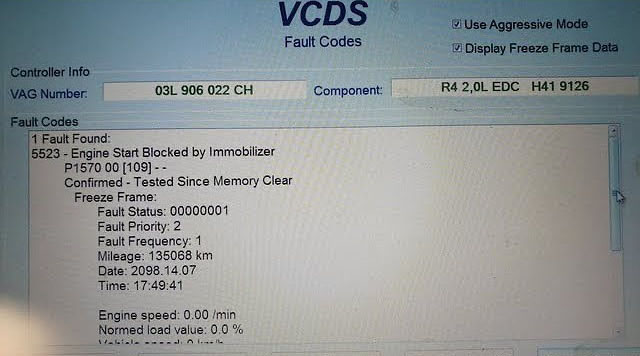

• P1570 – Engine Start Blocked by Immobilizer (on VCDS,…)

• 17978 – Engine Control Module Disabled (VAG code)

Despite the different phrases, all these definitions refer to the same core issue:

The engine control unit (ECU) has been disabled by the vehicle’s anti-theft immobilizer system, and engine start is blocked.

This means the engine may crank, but the immobilizer actively prevents the ECU from delivering fuel or spark — disabling engine start-up completely.

1.2. Applicable Vehicle Brands and Models

This fault is not limited to Audi alone. It also occurs in many Volkswagen models and other VAG group vehicles. Commonly affected models include:

• Audi A3, A4, A6, A8, TT, Q5, Q7

• VW Golf, Passat, Jetta, Polo, Tiguan, Touareg

• SEAT and Škoda models using the same immobilizer-ECU architecture

So whether you’re dealing with a P1570 Audi, VW P1570 engine control module disabled, or 17978 error, the root problem and solution paths are the same.

1.3. What Systems Are Involved?

This fault primarily involves three core systems:

1. Engine Control Module (ECM / ECU): Manages engine ignition, fuel injection, and startup.

2. Immobilizer System: Electronic anti-theft system that checks if the key is authorized.

3. Instrument Cluster (in many Audis): Contains the immobilizer control unit or interfaces with it.

These components must communicate successfully during startup. If the ECU fails to receive a valid authorization signal from the immobilizer, it sets the P1570 code and blocks engine operation.

---

2. Symptoms of VW P1570 Error

When your Audi or Volkswagen vehicle stores the P1570 fault code—often labeled as “Engine Control Module Disabled” or “Engine Start Blocked by Immobilizer”—it doesn’t always throw up flashing warning lights or loud alerts. Instead, it quietly prevents your engine from starting, leaving you stranded unless you know what to look for.

Here are the most common symptoms of the Audi P1570 error code that technicians and car owners should pay close attention to:

---

2.1. Engine Cranks but Won’t Start

This is the most common and telling sign of a P1570 fault. You may turn the key or push the start button and hear the engine crank as usual, but it never fully starts or dies immediately after ignition.

Why?
The immobilizer system has blocked the ECU from enabling fuel injection or spark, so the combustion process never completes—even if the mechanical components are functioning properly.

---

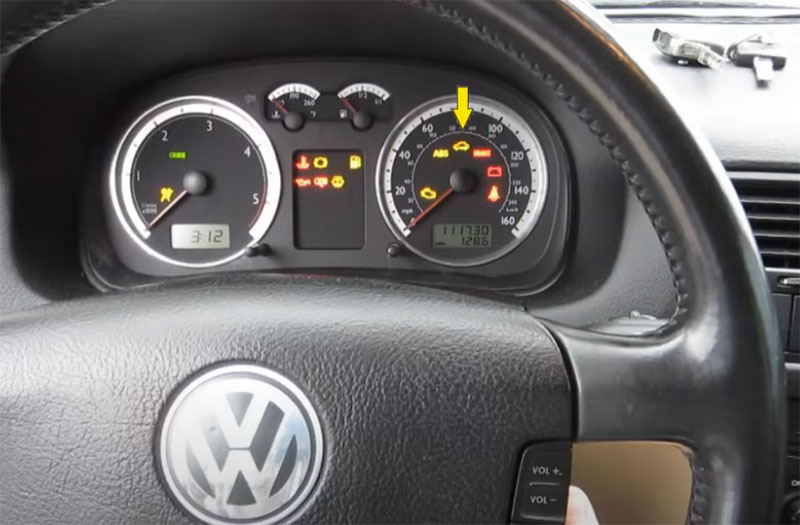

2.2. “SAFE” or Immobilizer Warning Light on Dashboard

On many Audi models (especially A4, A6, TT), you may see the word “SAFE” displayed where the odometer is usually shown. This indicates the immobilizer is active and has prevented engine start.

On other models, an icon resembling a key or padlock may blink on the dash cluster, signaling that the immobilizer has not authorized the ECU to start the engine.

---

2.3. Flashing Symbol in Instrument Cluster

A blinking or flashing icon is a visual cue from the immobilizer system, typically seen in:

• Audi A3/A4 B6/B7

• VW Golf, Passat, Jetta

This tells you the key’s transponder was not recognized, and the system has blocked ECU activation—hence the P1570 engine control module disabled status.

---

2.4. “Immobilizer Active” Message on Display (Newer Models)

Newer Audi and VW models with advanced displays may show:

“Immobilizer Active – Please Use Authorized Key”
or
“Engine Start Not Authorized”

This on-screen message confirms the immobilizer system has taken control and locked out the ECU.

---

2.5. No Throttle Response or Ignition Authorization

In certain vehicles, especially with drive-by-wire systems, you may notice:

• No throttle movement

• No fuel pump activation

• No spark, even if cranking

This is the immobilizer’s safety mechanism, ensuring the engine can’t be hotwired or bypassed.

---

2.6. Check Engine Light May Not Illuminate Immediately

Surprisingly, the check engine light (CEL) may not light up when the P1570 code is active. Many owners assume there’s no fault because no warning lights appear, but the issue is stored silently in the ECU memory.

Only a proper diagnostic scan with tools like VCDS, ODIS, or Autel will reveal the 17978 / P1570 fault code in the engine module.

---

2.7. Intermittent Starting Problems

In some cases, the problem isn’t consistent. The car may start fine one day, then suddenly refuse to start the next. This could point to:

• A dying key transponder

• Failing instrument cluster

• Poor electrical connections affecting immobilizer data exchange

---

2.8. Related Fault Codes Appear During Scanning

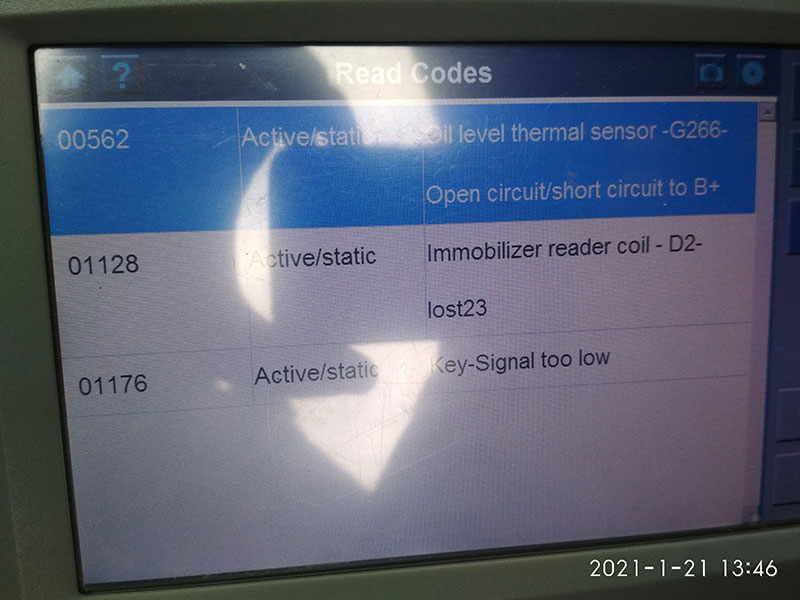

Along with P1570 Audi, you might find other immobilizer-related trouble codes during diagnostic scanning, such as:

• 01176 – Key Signal Too Low

• 01128 – Immobilizer Pickup Coil

• P1571 – Incorrect Key Programming

• 00550 – Start of Injection Regulation (in cases of immo-locked ECUs)

These related DTCs strengthen the diagnosis that your immobilizer system is failing to authorize engine start.

---

3. Common Causes of Audi Error P1570

The Audi error P1570, also stored as 17978, is triggered when the immobilizer system blocks the ECU (Engine Control Module) from starting the engine. While the root message is simple—“Engine Control Module Disabled”—the causes behind it can vary depending on your vehicle’s age, model, and recent repair history.

Here’s an in-depth breakdown of the most common causes of the P1570 Audi fault code, why they occur, and how to identify each one.

---

3.1. Unrecognized or Unprogrammed Key

If the transponder chip inside the key is damaged, missing, or incorrectly programmed, the immobilizer won’t authorize engine start. This is one of the most frequent triggers of Audi error P1570.

Causes:

• Using a spare key that hasn’t been properly programmed

• Replacing the key shell but forgetting to transfer the immobilizer chip

• A cloned key without transponder sync

• Key battery dead (in models using passive keyless entry)

Diagnosis Tip:

Check measuring blocks in the immobilizer module using VCDS or ODIS S. If the transponder shows as “not authorized” or “unknown key”, you’ve found the issue.

---

3.2. ECU Was Replaced But Not Adapted

Swapping or cloning the Engine Control Module (ECU) is a common repair in the used parts market. But without proper immobilizer adaptation, the car will never start—triggering P1570 engine control module disabled.

Causes:

• Used ECU installed without pairing to the immobilizer

• Clone performed but with incomplete immobilizer data

• ECU software flashed without reprogramming IMMO data correctly

Diagnosis Tip:

• Check ECU coding and adaptation status.

• Verify if VIN in ECU matches the car.

• Use tools like ODIS Engineering, Autel IM508/608, or Abrites to re-adapt ECU.

---

3.3. Instrument Cluster or Immobilizer Module Fault

In many Audi models, the immobilizer system is built into the instrument cluster. If the cluster malfunctions or is replaced without adaptation, the immobilizer cannot send valid authorization to the ECU.

Causes:

• Internal failure in the instrument cluster

• Incorrect immobilizer module coding

• Communication failure between the cluster and ECU

Diagnosis Tip:

Scan both the ECU and the Instrument Cluster for fault codes like:

• 01176 (Key signal too low)

• 01128 (Immobilizer pickup coil)
  Also, check CAN communication between these modules.

---

3.4. Broken or Corroded Wiring Between ECU and Immobilizer

The wiring and electrical connections that carry signals between the ECU and immobilizer system are crucial. If power or ground is missing, or if CAN communication is disrupted, the ECU will default to locked state—and you’ll see the P1570 code.

Causes:

• Rodent damage (chewed wires)

• Corrosion in connectors or pins (especially in damp environments)

• Ground wire loose or oxidized

• CAN-BUS short or open circuit

Diagnosis Tip:

Use a multimeter to check voltage at ECU and cluster pins. Look for:

• 12V constant and ignition power

• Proper ground continuity

• Resistance across CAN-H and CAN-L within spec (60 ohms across bus)

---

3.5. Low Battery Voltage or Sudden Power Loss

A weak battery or voltage dip during startup can confuse the immobilizer system, especially in older vehicles. This sometimes results in temporary P1570 faults even if all modules are fine.

Causes:

• Battery voltage drops below 10.5V during crank

• Sudden power loss while writing to ECU

• Bad battery terminals or weak alternator

Diagnosis Tip:

• Check live voltage during cranking

• Look for “immobilizer unauthorized” messages appearing intermittently

• Reset the code and observe if it reappears

---

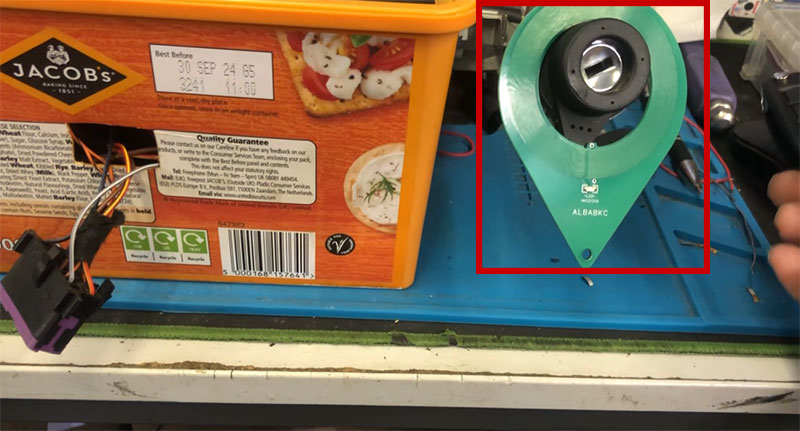

3.6. Failed Key Reader or Transponder Coil (Antenna Ring)

Located around the ignition switch, this coil reads the RFID chip in your key. If it fails, the key signal never reaches the immobilizer module—leading to engine start block and Audi P1570.

Causes:

• Damaged or cracked antenna ring

• Loose connector or short circuit

• Overheated from aftermarket ignition parts

Diagnosis Tip:

Scan for:

• 01128 – Immobilizer pickup coil signal too weak
  Also, test with a spare key to rule out transponder fault.

---

3.7. Component Protection or Security Lock (Newer Audi/VW Models)

Many late-model Audi and VW vehicles use a Component Protection system which ties certain modules (like the ECU and cluster) to the vehicle’s VIN. If one module is swapped and not removed from Component Protection, P1570 and other immobilizer errors may appear.

Causes:

• Replacing ECU, cluster, or infotainment system without dealer adaptation

• Attempting to retrofit modules from another vehicle

Diagnosis Tip:

• Use ODIS to check Component Protection status

• Cluster may display “Component Protection Active” message

---

3.8. Corrupted ECU Software or Immobilizer Data

In rare cases, the EEPROM or Flash data inside the ECU becomes corrupted—often due to failed tuning, chip programming, or voltage spike during a flash.

Causes:

• ECU remap gone wrong

• Incomplete immobilizer delete attempt

• EEPROM checksum error

Diagnosis Tip:

• Try reading ECU memory via OBD or bench

• Use tools like KTAG, MPPS, or VVDI for dump comparison

• Compare software versions and check for checksum errors

---

4. Tool Descriptions & How They Help

4.1. VCDS (by Ross-Tech)

• Ideal for scanning DTCs (like P1570, 01176, 01128)

• Read immobilizer live data (e.g., key status, authorized keys, ECU lock state)

• Perform basic adaptation on older models (pre-2004)

• Affordable and easy to use

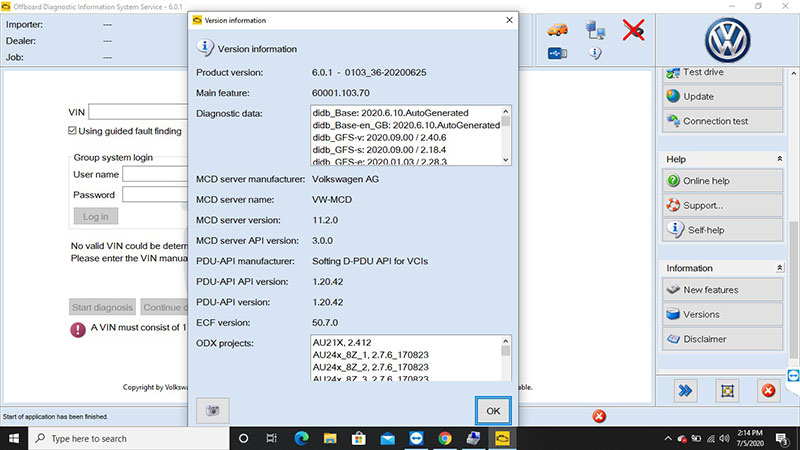

4.2. ODIS Service / ODIS Engineering

• Official dealer tool for VW/Audi diagnostics and online coding

• Can perform ECU and immobilizer adaptation

• Required for Component Protection removal in modern cars

• Essential for newer MQB/MLB platforms

=> Download ODIS Service & ODIS Engineering here:

• ODIS Service Latest Version Download Link
• ODIS Engineering Latest Version Download Link

4.3. Autel IM508 / IM608

• All-in-one diagnostic + key programming system

• Can add new keys, perform all keys lost functions, and ECU IMMO adaptation

• Works on many Audi models without needing online access

• IM608 has more capabilities than IM508

4.4. Abrites AVDI

• Advanced solution for ECU cloning, IMMO bypass, or adaptation without online connection

• Useful when the ECU or instrument cluster is changed

• Handles Component Protection removal and coding of second-hand modules

4.5. VAG K+CAN Commander / VAG Tacho

• Great for older Audi/VW models

• Can read PIN/SKC code required for VCDS adaptation

• Limited support for newer cars but still valuable

4.6. Xhorse VVDI2 / VVDI Prog

• Excellent for key programming and chip-level ECU access

• Useful if EEPROM dump is needed from ECU or cluster

• Helps in cloning keys or repairing corrupted IMMO data

4.7. Multimeter / Power Probe

• Diagnose electrical issues (bad grounds, broken CAN wires, low voltage)

• Crucial when checking why ECU/Immo communication has failed

4.8. 12V Power Supply (Stabilizer)

• Keeps vehicle voltage above 13V during flashing or programming

• Prevents ECU bricking or incomplete programming due to voltage drop

• A must-have during ODIS or Autel coding sessions

5. How to Diagnose the P1570 Audi Fault Code

Here’s a step-by-step diagnostic approach using tools like VCDS, ODIS, or Autel IM608:

Step 1: Perform a Full System Scan

Use your diagnostic tool to scan all control modules, especially:

• 01 – Engine Control Module (ECM/ECU)

• 17 – Instrument Cluster (may contain immobilizer)

• 25 – Immobilizer (if separate module present)

• 19 – CAN Gateway

Look for these codes:

• P1570 / 17978 – Engine Control Module Disabled

• 01176 – Key Signal Too Low

• 01128 – Immobilizer Pickup Coil Fault

• P1571 – Incorrect Key Programming

• Component Protection Active (on newer Audi models)

📌 Tip: Don’t just clear the P1570 code—read related faults in other modules to get the complete picture.

---

Step 2: Verify Key Recognition Status

This is where most technicians find the root of the problem.

With VCDS:

1. Go to [25] Immobilizer or [17] Instruments

2. Select Measuring Blocks

3. Enter group 022, 023, or 081–091 (depends on model)

Key values to monitor:

• Transponder Status: Should say “Key OK”, “Authorized”, or “Matched”

• Number of Adapted Keys: Should show 1 or more

• ECU Start Permission: Must say “YES” or “Authorized”

If it shows:

• ❌ “Unknown” or “Not Authorized” – the key is not recognized

• ❌ “0 Keys Adapted” – the ECU is not matched to the car

📌 Pro Tip: Try a spare key. If the spare works, the fault is likely with the transponder or key chip.

---

Step 3: Check Immobilizer Authorization in ECU

Go to [01] Engine > Measuring Blocks and find:

• ECU Start Authorization

• IMMO Status or ECU Status

Expected values:

• Start Enable: YES

• Engine Start: Authorized

• Immobilizer Status: Inactive

If these values are NO, Blocked, or Disabled, it means the immobilizer has locked the ECU.

---

Step 4: Inspect the Instrument Cluster or Immobilizer Module

In many Audi models (like A4 B6/B7), the immobilizer is part of the instrument cluster. If the cluster fails or is replaced, ECU authorization is denied.

Do the following:

• Scan [17] Instruments or [25] Immobilizer for internal DTCs

• Check for:

  • No Communication

  • Incorrect Adaptation

  • Security Access Refused

📌 If the cluster was replaced recently, the ECU and cluster may need immobilizer adaptation.

---

Step 5: Test the Antenna Ring / Key Reader Coil

The transponder antenna sits around the ignition cylinder and reads the RFID chip inside your key. If it fails, the car won’t see the key—even if it’s working.

How to test:

• Scan for 01128 – Immobilizer Coil Fault

• Check coil resistance with multimeter (typically 2–5 ohms)

• Wiggle the key in the ignition and observe any changes in transponder recognition

📌 If intermittent, suspect a cracked antenna ring or weak solder joint.

---

Step 6: Inspect ECU Wiring, Grounds, and Fuses

Sometimes the ECU can’t communicate with the immobilizer because of:

• Ground issues

• Damaged CAN wires

• Blown fuses

Check:

• Battery voltage: should be 12.4V+

• All ground points: clean and tight

• CAN communication lines: resistance between CAN-H and CAN-L = 60 ohms

• ECU power fuses: especially under hood and on battery terminal

📌 Pro Tip: A corroded ground strap or low voltage during startup can falsely trigger P1570.

---

Step 7: Review ECU Adaptation & Component Protection

If the ECU, instrument cluster, or immobilizer module was swapped, the system may require:

• Immobilizer adaptation (match ECU to cluster)

• Component Protection removal (on newer MLB/MQB vehicles)

Check:

• VIN in ECU matches vehicle VIN

• Immobilizer ID is aligned between modules

• Component Protection status via ODIS

📌 Important: If VIN mismatch is found, it’s a strong indicator of an unadapted or cloned ECU.

---

6. How to Fix “Engine Control Module Disabled” on Audi

Once you’ve diagnosed the cause of the P1570 Audi fault code—labeled in many diagnostic tools as “Engine Control Module Disabled” or “Engine Start Blocked by Immobilizer”—the next step is fixing it.

The repair process depends heavily on what triggered the immobilizer lock: an unrecognized key, unmatched ECU, failed cluster, or wiring issue. Below is a step-by-step repair guide tailored to the most common scenarios for Audi and VW vehicles.

---

6.1. If the Key Is Not Recognized

Common Causes:

• Faulty or cloned transponder chip

• New key not programmed

• Broken antenna ring (transponder coil)

• Immobilizer not detecting key ID

Fixes:

✅ Try using a spare key.
✅ Use Autel IM608, ODIS, or VCDS to check if the key is matched.
✅ Reprogram the key using:

• ODIS (dealer online login may be required)

• Autel IM508/IM608 (offline capability)

• Abrites AVDI or VVDI2 (advanced locksmith tools)

✅ If the transponder chip is damaged, cut and program a new key.

📌 Note: Even with a physically cut key, if the chip isn’t programmed, the engine will crank but won’t start.

---

6.2. If ECU Was Replaced or Swapped

Common Causes:

• Used ECU installed

• ECU cloned without immobilizer sync

• Software flashed but IMMO data not transferred

Fixes:

✅ Use VCDS or ODIS to perform ECU–Immobilizer adaptation:

• Extract PIN/SKC code from the original cluster or ECU (VAG Commander, VVDI, or EEPROM reader)

• Login to Immobilizer module

• Perform adaptation via “Coding II” or “Security Access”

✅ If PIN is unknown:

• Use EEPROM dump tools (e.g., KTAG, VVDI Prog) to extract immobilizer data

• Match CS (Component Security), MAC, and VIN

✅ Alternatively, clone the ECU with all immobilizer data from the original using:

• KTAG / MPPS / KESS

• Abrites AVDI (Full IMMO data transfer)

---

6.3. If Instrument Cluster or Immobilizer Module Is Faulty

Common Causes:

• Cluster replaced or corrupted

• Immobilizer control unit failure

• Cluster and ECU have mismatched immobilizer IDs

Fixes:

✅ Replace faulty cluster with a same-part-number used unit
✅ Adapt the cluster to match ECU:

• Transfer immobilizer data (e.g., IMMO ID, CS, MAC, PIN)

• Use ODIS or Abrites to perform online or offline adaptation

✅ If unable to adapt:

• Consider immobilizer bypass or delete (for off-road use only)

• Clone cluster EEPROM or IMMO chip (e.g., 24C08, 93C86)

📌 On newer vehicles (MQB platform), this procedure must be done online with ODIS or using advanced tools like AVDI or Autel with cloud access.

---

6.4. If Voltage Drop or Power Loss Triggered the Fault

Common Causes:

• Weak battery during start

• Sudden power loss during ECU flash

• Bad ground connections

Fixes:

✅ Ensure battery is fully charged (12.6V+ resting voltage)
✅ Use a battery stabilizer or charger while performing diagnostics
✅ Clear the P1570 code using:

• VCDS

• ODIS

• Autel IM series

✅ Check all ground points, especially:

• ECU ground straps

• Cluster and fuse box grounds

• Chassis ground

📌 In some cases, simply clearing the code and performing a cold reboot (disconnect battery for 5 mins) solves the issue.

---

6.5. If Wiring or CAN Communication Is Faulty

Common Causes:

• Broken or corroded CAN lines

• Damaged ECU or cluster wiring

• Blown fuses to ignition or IMMO systems

Fixes:

✅ Test resistance across CAN High and CAN Low → ~60 Ohms
✅ Check continuity of wires between:

• ECU ↔ Cluster

• ECU ↔ Immobilizer box (on older models)

✅ Inspect and replace any blown fuses related to:

• ECU power supply

• Immobilizer module

• Cluster electronics

✅ Repair or replace connectors with visible corrosion or damaged pins.

---

6.6. If Component Protection Is Active (Newer Audi/VW)

Common Causes:

• Used ECU or cluster installed in post-2006+ models

• Factory-installed Component Protection blocks unauthorized parts

Fixes:

• Use ODIS Online to remove Component Protection via Audi dealer account
• Or use Abrites AVDI, VVDI, or SMOK tools (if available) to remove CP on some models offline

📌 Component Protection blocks engine start, infotainment, and more until properly removed.

---

6.7. If ECU or IMMO Data Is Corrupted

Common Causes:

• Bad ECU flash or IMMO delete attempt

• Chip-level failure in EEPROM

• Tuning gone wrong

Fixes:

✅ Reflash ECU with stock software (if backup available)
✅ Recover immobilizer data using:

• EEPROM programmer (e.g., TL866, VVDI Prog)

• ECU bench flashing with KTAG / MPPS / KESS

✅ Restore EEPROM and re-adapt ECU to immobilizer system

✅ In some off-road builds, an immobilizer OFF solution can be coded into the ECU — this should only be used when legally appropriate.

7. Final Tips for a Successful Fix

• Always back up EEPROM or flash data before any reprogramming.

• Keep vehicle battery voltage stable with a regulated power supply (13.5V) during coding.

• Don’t rush into clearing codes—fix the root cause first, then reset the system.

• When using used parts (ECUs, clusters), always check compatibility and prepare for adaptation.

---

8. Common Mistakes to Avoid

• Swapping ECUs without immobilizer matching

• Using non-original keys with missing transponders

• Clearing codes before doing proper diagnostics

• Ignoring related immobilizer or CAN network faults

---

9. Why This Code Matters More Than You Think

A P1570 fault may seem simple, but it often leads to:

• Failed starts

• Unnecessary ECU replacements

• Expensive tow-ins and immobilizer resets

Understanding the logic behind this code prevents misdiagnosis and wasted parts.

---

10. Frequently Asked Questions

❓ Can I disable the immobilizer to fix P1570?

No, modern ECUs require a matched immobilizer. Disabling it is illegal in many regions and may lead to bricking your ECU.

❓ How do I get my SKC/PIN code?

You can extract it using:

• VAG CAN Commander

• VAG EEPROM Programmer

• Abrites or professional locksmith tools

❓ Can a dead car battery cause P1570?

Yes, low voltage can cause key recognition failures. Always test and recharge your battery before beginning repair.

---

Get Help With Audi ECU Coding & Programming

Still seeing Audi error P1570 or the dreaded Engine Control Module Disabled message?

AutoExplain offers:

• ECU coding & immobilizer adaptation

• Key programming & transponder matching

• Remote or in-shop support for Audi & VW

📩 Contact us now to get your Audi running again—fast, secure, and professional.

• WhatsApp Support: +1 (936) 289-6695

• Email: [email protected]

---

Conclusion

The P1570 Audi fault code may look intimidating, but with the right approach and tools, it’s fixable. Whether it’s a mismatched ECU, faulty key, or simple adaptation error—knowing how to diagnose and fix the Engine Control Module Disabled issue can save you time, stress, and money.
