Mercedes SRS Fault Code List: What They Mean and How to Fix Them

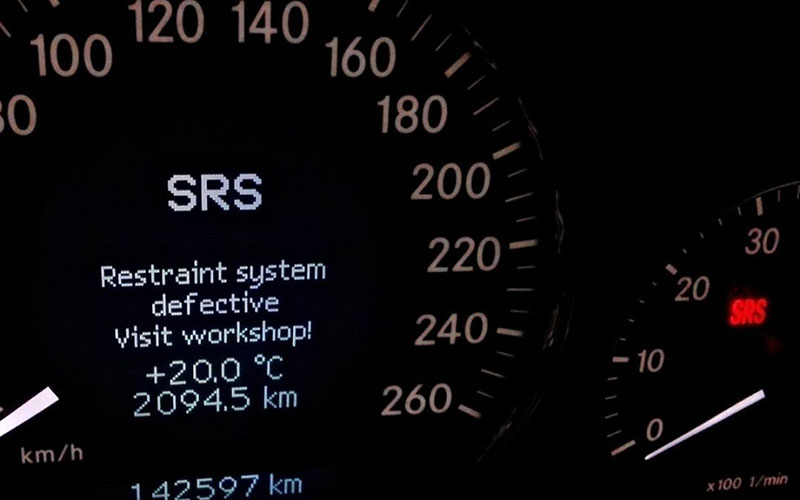

When the SRS (Supplemental Restraint System) warning light appears on your Mercedes-Benz dashboard, it’s a signal that something is wrong with the airbag or safety restraint system. Diagnosing and fixing these issues can be complex, but understanding the Mercedes Srs Fault Code List is the first step to resolving the problem safely and effectively.

In this article, AutoExplain’ll walk you through the most common Mercedes SRS fault codes, explain what they mean, and provide tips to fix them safely and effectively.

1. Understanding the Mercedes SRS System

The Supplemental Restraint System (SRS) in Mercedes-Benz vehicles is a critical safety feature designed to protect occupants during a collision. The SRS system encompasses various components, including airbags, seat belts with pretensioners, crash sensors, and the SRS control unit (ECU). Understanding how these components interact is essential for accurate diagnosis and repair.

• Airbags: These inflatable cushions provide a protective barrier between the occupant and the vehicle’s interior during a crash.
• Seat Belts with Pretensioners: These tighten the seat belts instantly during a collision, securing the occupant in place.
• Crash Sensors: These detect the severity of an impact and signal the SRS control unit to deploy the airbags and activate the seat belt pretensioners.
• SRS Control Unit (ECU): This central module monitors the entire system, processes sensor data, and triggers the deployment of airbags and seat belt pretensioners when necessary.

The SRS system’s primary function is to minimize injury during a collision. When crash sensors detect a significant impact, they send a signal to the SRS control unit. The control unit then evaluates the data and, if the conditions warrant it, sends an electrical signal to deploy the appropriate airbags and activate the seat belt pretensioners. This entire process happens within milliseconds, providing crucial protection to the vehicle’s occupants.

Regular maintenance and inspection of the SRS system are vital to ensure its proper functioning. Warning lights on the dashboard, such as the SRS or airbag light, indicate a potential problem within the system. These warnings should not be ignored, as they could signify a malfunction that could compromise safety in the event of a crash. Prompt diagnosis and repair of any SRS issues are crucial to maintaining the vehicle’s safety integrity.

2. Mercedes SRS Fault Codes List

A Mercedes SRS fault code list is extensive, covering a wide range of potential issues within the Supplemental Restraint System. These codes are crucial for diagnosing problems related to airbags, seat belt pretensioners, crash sensors, and the SRS control unit. Below are some common SRS fault codes encountered in Mercedes-Benz vehicles. Note that specific codes may vary depending on the model and year.

For expert assistance with diagnosing SRS issues, contact AutoExplain via WhatsApp at +1(936)2896695 or email at [email protected]. Our remote support services can provide the guidance you need to keep your Mercedes-Benz SRS system in optimal condition.

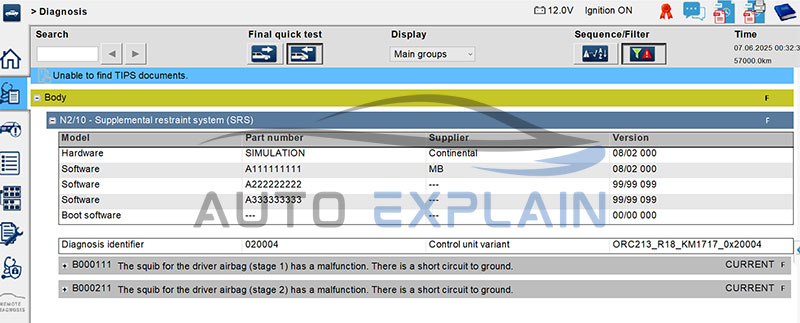

Source: Xentry Diagnostics software

=> Download Xentry Diagnostics software free here!

This Mercedes SRS fault code list provides a comprehensive overview of potential issues within the SRS system. Accurate diagnosis and repair are essential to ensure the safety and proper functioning of the vehicle’s restraint systems. For expert assistance in diagnosing and resolving SRS fault codes, contact AutoExplain.com via WhatsApp at +1(936)2896695 or email at [email protected]. Our remote support services can provide the guidance you need to keep your Mercedes-Benz SRS system in optimal condition.

=> Related content:

• How to Fix Mercedes DTC B1000
• Tips to Fix B1010 Mercedes Fault Code
• Mercedes Airbag Fault Code List

3. Diagnosing Mercedes SRS Fault Codes

Diagnosing Mercedes SRS fault codes requires a systematic approach to accurately identify the root cause of the problem.

3.1. Tools Required for Diagnosis

• A laptop with XENTRY/DAS software installed

• SDconnect C4, C5, or C6 (DoIP) interface

• Mercedes-Benz vehicle with an active or stored SRS fault (e.g., airbag warning light ON)

• Optional: valid Mercedes-Benz online login (for advanced functions)

=> Learn how to use Xentry here!

3.2. How to Diagnose Mercedes SRS Fault Codes (Using Xentry)

Here’s a step-by-step guide to help you diagnose SRS fault codes effectively:

Step 1: Connect the Diagnostic Tool to the Vehicle

1. Connect the SDconnect multiplexer to the OBD-II port (usually under the dashboard).

2. Connect the multiplexer to your laptop via LAN, WLAN, or USB.

3. Turn the vehicle ignition ON (engine OFF is fine for diagnosis).

Step 2: Launch XENTRY Software

1. Start the XENTRY Diagnostics software on your laptop.

2. The system will begin identifying the vehicle automatically via VIN.

   • If not, you can enter the VIN manually.

Step 3: System Scan / Control Unit Selection

1. Once the vehicle is recognized, XENTRY will list all control units.

2. You can either:

   • Run a quick test to scan all control units.

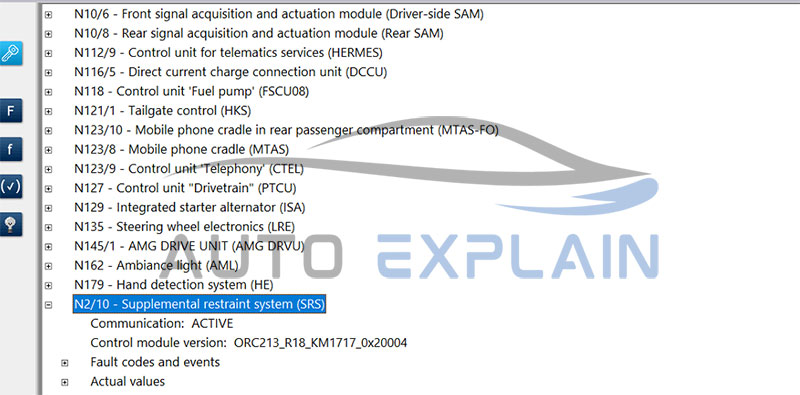

   • Or directly select SRS – Supplemental Restraint System (Airbag Control Unit) from the list.

Step 4: Read and Interpret Fault Codes

1. Inside the SRS control unit, click on “Fault Codes”.

2. XENTRY will display:

   • Fault code numbers (e.g., B1000, B1035, etc.)

   • Fault descriptions (e.g., “Passenger airbag squib has too high resistance”)

   • Current status: Stored, Intermittent, or Present

3. Click on each code to view detailed help, including:

   • Possible causes

   • Suggested repair actions

   • Live data (resistance values, deployment status, etc.)

Step 5: Perform Tests or Actuations (Optional)

• From the SRS module menu, you can:

  • Perform actuator tests (e.g., check tensioner function, seat occupancy sensor, etc.)

  • View live data from sensors and squibs.

  • Check component resistance values or short circuits.

Step 6: Clear Fault Codes (If Safe)

• Once the issue is fixed (e.g., connector cleaned, component replaced), go to the “Erase Fault Memory” option.

• Confirm the action.

• If the fault is cleared successfully and doesn’t reappear, the airbag light will turn OFF.

• If the fault returns, re-check the physical wiring or sensor/component involved.

Step 7: Road Test:

• • Conduct a road test to verify the SRS system’s functionality under real-world driving conditions.
  • Monitor the SRS system for any warning lights or fault codes.

⚠️ Notes:

• Never clear SRS fault codes without fixing the root cause – airbags may not deploy in an accident.

• If replacing parts (e.g., airbag module, sensor), coding or initialization may be required.

• Some newer models require DoIP support (C6 interface) and online SCN coding after certain repairs.

Common Diagnostic Pitfalls

• Failing to perform a thorough visual inspection
• Ignoring wiring and connection issues
• Incorrectly interpreting fault codes
• Not following proper testing procedures
• Failing to verify repairs after completion

By following these steps and using the appropriate tools, you can effectively diagnose Mercedes SRS fault codes and restore the system to proper working order. If you encounter complex issues or need expert guidance, contact AutoExplain.com via WhatsApp at +1(936)2896695 or email at [email protected]. Our remote support services can provide the technical expertise you need to resolve SRS problems efficiently.

Important Considerations

• Battery Voltage: Ensure the vehicle’s battery voltage is stable before resetting SRS codes. Low voltage can cause communication errors or prevent the codes from clearing.
• Scanner Compatibility: Use a diagnostic scanner that is specifically designed to work with Mercedes-Benz vehicles to ensure proper communication and functionality.
• Ignition Cycle: After clearing the codes, cycle the ignition by turning the vehicle off and then back on to allow the SRS system to reset completely.
• Professional Assistance: If you are unsure about any part of the reset procedure or encounter persistent issues, seek professional assistance from a qualified technician or Mercedes-Benz specialist.

Common Mistakes

• Attempting to reset codes without addressing the underlying issues
• Using an incompatible diagnostic scanner
• Failing to verify the reset after clearing codes
• Ignoring persistent warning lights

=> If you want to learn more about how to diagnosis Mercedes vehicle, this book is written for you:

Master Mercedes Diagnostic: Xentry/DAS, WIS and Starfinder

By following these steps, you can effectively reset Mercedes SRS fault codes after completing the necessary repairs. If you need further assistance or encounter any difficulties, contact AutoExplain.com via WhatsApp at +1(936)2896695 or email at [email protected]. Our remote support services can provide the guidance you need to keep your Mercedes-Benz SRS system in optimal condition.

4. Advanced Troubleshooting Techniques

Advanced troubleshooting of Mercedes SRS fault codes requires a deeper understanding of the system and the ability to use specialized tools and techniques.

4.1. Tools Required

• Oscilloscope
• CAN bus analyzer
• Multimeter
• Wiring diagrams
• Mercedes-Benz repair manual
• Diagnostic scanner
• Airbag simulators

4.2. How to Perform Advanced Diagnostic Methods

Here are some advanced troubleshooting methods to help you diagnose and resolve complex SRS issues:

1. Using Oscilloscope for Signal Analysis:
   • An oscilloscope can be used to analyze the signals from crash sensors, airbag igniters, and other SRS components.
   • This allows you to identify signal irregularities, such as voltage drops, signal noise, or missing signals.
2. CAN Bus Diagnostics:
   • The SRS system relies on the Controller Area Network (CAN) bus for communication between various modules.
   • Use a CAN bus analyzer to monitor the communication signals and identify any disruptions or errors.
   • Check for bus errors, missing messages, or incorrect data transmission.
3. Resistance Measurements:
   • Measure the resistance of airbag igniters, seat belt pretensioners, and wiring circuits to identify open circuits, short circuits, or high resistance connections.
   • Compare the measured values with the specifications in the Mercedes-Benz repair manual.
4. Voltage Drop Testing:
   • Perform voltage drop tests on the wiring harnesses to identify areas of high resistance or corrosion.
   • Measure the voltage drop across each connection and wire segment while the system is under load.
5. Actuator Testing:
   • Use a diagnostic scanner to activate and test individual SRS components, such as airbags and seat belt pretensioners.
   • Monitor the system’s response to these commands and verify that the components are functioning correctly.
6. Simulation Techniques:
   • Use airbag simulators to mimic the presence of airbags during testing and troubleshooting.
   • This allows you to test the SRS control unit and wiring circuits without deploying the actual airbags.
7. Software Analysis:
   • Examine the SRS control unit’s software for corruption, errors, or inconsistencies.
   • Use diagnostic software to update or re-flash the control unit’s software if necessary.
8. Wiring Diagram Analysis:
   • Use detailed wiring diagrams to trace the wiring circuits and identify potential problem areas.
   • Pay close attention to ground connections, power supplies, and signal paths.
9. Data Logging:
   • Use a diagnostic scanner to log data from the SRS system while driving.
   • This can help you identify intermittent problems or conditions that trigger fault codes under specific circumstances.
10. Component Isolation:
    • Isolate individual SRS components to determine if they are causing the problem.
    • Disconnect the component and monitor the system’s response. If the fault code disappears, the component is likely the cause.

4.3. Common Challenges

• Intermittent faults that are difficult to reproduce
• Complex wiring circuits that are hard to trace
• Communication issues between different modules
• Software-related problems that require specialized tools
• Physical access to certain SRS components

By using these advanced troubleshooting techniques, you can effectively diagnose and resolve complex SRS issues in Mercedes-Benz vehicles. If you need expert assistance or encounter any difficulties, contact AutoExplain.com via WhatsApp at +1(936)2896695 or email at [email protected]. Our remote support services can provide the technical expertise you need to tackle even the most challenging SRS problems.

5. Component Testing and Replacement

Testing and replacing components within the Mercedes SRS system requires careful procedures to ensure safety and proper functionality.

5.1. Tools Required

• Multimeter
• Diagnostic scanner
• Airbag simulator
• Wiring diagrams
• Mercedes-Benz repair manual
• Socket set
• Torque wrench

5.2. How to Perform Testing & Replacement

Here’s a detailed guide on how to test and replace common SRS components:

1. Airbags:
   • Testing:
     • Use a multimeter to measure the resistance of the airbag igniter circuit. The resistance should be within the range specified in the Mercedes-Benz repair manual (typically between 2 and 3 ohms).
     • Do not apply voltage directly to the airbag igniter, as this could cause accidental deployment.
     • Use an airbag simulator to test the wiring circuits and SRS control unit without deploying the actual airbag.
   • Replacement:
     • Disconnect the vehicle’s battery and wait at least 10 minutes to allow the SRS system to discharge.
     • Remove the airbag module from the steering wheel or dashboard, following the instructions in the Mercedes-Benz repair manual.
     • Disconnect the electrical connector from the airbag module.
     • Install the new airbag module and reconnect the electrical connector.
     • Reinstall the airbag module into the steering wheel or dashboard.
     • Reconnect the vehicle’s battery.
     • Clear any SRS fault codes using a diagnostic scanner.
2. Seat Belt Pretensioners:
   • Testing:
     • Use a multimeter to measure the resistance of the seat belt pretensioner igniter circuit. The resistance should be within the range specified in the Mercedes-Benz repair manual.
     • Do not apply voltage directly to the seat belt pretensioner igniter, as this could cause accidental activation.
   • Replacement:
     • Disconnect the vehicle’s battery and wait at least 10 minutes to allow the SRS system to discharge.
     • Remove the seat from the vehicle, following the instructions in the Mercedes-Benz repair manual.
     • Disconnect the electrical connector from the seat belt pretensioner.
     • Remove the seat belt pretensioner from the seat assembly.
     • Install the new seat belt pretensioner and reconnect the electrical connector.
     • Reinstall the seat into the vehicle.
     • Reconnect the vehicle’s battery.
     • Clear any SRS fault codes using a diagnostic scanner.
3. Crash Sensors:
   • Testing:
     • Use a diagnostic scanner to read the output signals from the crash sensors.
     • Compare the sensor readings with the specifications in the Mercedes-Benz repair manual.
     • Check the wiring circuits for continuity and proper voltage.
   • Replacement:
     • Disconnect the vehicle’s battery.
     • Locate the crash sensor on the vehicle’s body or frame.
     • Disconnect the electrical connector from the crash sensor.
     • Remove the crash sensor from the vehicle.
     • Install the new crash sensor and reconnect the electrical connector.
     • Reconnect the vehicle’s battery.
     • Clear any SRS fault codes using a diagnostic scanner.
4. SRS Control Unit (ECU):
   • Testing:
     • Use a diagnostic scanner to communicate with the SRS control unit and read any stored fault codes.
     • Check the wiring circuits for proper power and ground connections.
   • Replacement:
     • Disconnect the vehicle’s battery.
     • Locate the SRS control unit in the vehicle (typically under the dashboard or center console).
     • Disconnect the electrical connectors from the SRS control unit.
     • Remove the SRS control unit from the vehicle.
     • Install the new SRS control unit and reconnect the electrical connectors.
     • Reconnect the vehicle’s battery.
     • Program the new SRS control unit using a Mercedes-Benz compatible diagnostic scanner.
     • Clear any SRS fault codes using a diagnostic scanner.

5.3. Safety Precautions

• Always disconnect the vehicle’s battery and wait at least 10 minutes before working on the SRS system.
• Never apply voltage directly to airbag igniters or seat belt pretensioner igniters.
• Use an airbag simulator when testing the SRS system.
• Follow the instructions in the Mercedes-Benz repair manual for specific procedures and torque specifications.

5.4. Common Mistakes

• Failing to disconnect the battery before working on the SRS system
• Applying voltage directly to airbag igniters or seat belt pretensioner igniters
• Using incorrect torque specifications
• Not programming the new SRS control unit after replacement

By following these steps and taking the necessary safety precautions, you can effectively test and replace components within the Mercedes SRS system. If you need expert assistance or encounter any difficulties, contact AutoExplain.com via WhatsApp at +1(936)2896695 or email at [email protected]. Our remote support services can provide the technical expertise you need to ensure the safety and proper functioning of your Mercedes-Benz SRS system.

6. Preventative Maintenance for the SRS System

Preventative maintenance is crucial for ensuring the long-term reliability and effectiveness of the Mercedes SRS system. Regular inspections and maintenance can help identify potential issues before they lead to system malfunctions or failures. Here are some preventative maintenance tips for the SRS system:

1. Regular Inspections:
   • Inspect the SRS warning light on the dashboard regularly. If the light is on, it indicates a problem within the system that needs to be addressed.
   • Check the condition of the seat belts and ensure they are functioning properly. Look for any signs of wear, fraying, or damage.
   • Inspect the airbag covers for any signs of damage, such as cracks, tears, or discoloration.
2. Wiring and Connections:
   • Periodically inspect the wiring harnesses and connectors related to the SRS system.
   • Check for loose connections, damaged wires, and corrosion.
   • Apply dielectric grease to the connectors to prevent corrosion and ensure good electrical contact.
3. Battery Maintenance:
   • Maintain the vehicle’s battery in good condition. Low battery voltage can cause communication errors and affect the performance of the SRS system.
   • Ensure the battery terminals are clean and free of corrosion.
   • Replace the battery if it is old or weak.
4. Diagnostic Scans:
   • Perform regular diagnostic scans of the SRS system using a Mercedes-Benz compatible diagnostic scanner.
   • Check for any stored fault codes and address them promptly.
5. Component Testing:
   • Test the SRS components, such as airbags, seat belt pretensioners, and crash sensors, using a multimeter or specialized testing equipment.
   • Compare the measured values with the specifications in the Mercedes-Benz repair manual.
6. Software Updates:
   • Keep the SRS control unit’s software up to date.
   • Check for any available software updates and install them using a diagnostic scanner.
7. Professional Service:
   • Have the SRS system inspected by a qualified technician or Mercedes-Benz specialist at regular intervals.
   • Follow the recommended maintenance schedule in the vehicle’s owner’s manual.

By following these preventative maintenance tips, you can help ensure the long-term reliability and effectiveness of your Mercedes SRS system. If you need expert assistance or have any questions, contact AutoExplain.com via WhatsApp at +1(936)2896695 or email at AutoExplain
