How to Use Xentry Diagnostics: A Comprehensive Guide

Mercedes Xentry Diagnostics is a sophisticated software suite designed for in-depth diagnostics and programming of Mercedes-Benz vehicles. It offers mechanics, technicians, and workshops the capability to rapidly and effectively diagnose and resolve issues, leading to quicker repairs, reduced costs, and enhanced customer satisfaction. This guide will walk you through the key aspects of using Xentry Diagnostics.

The core benefits of using Mercedes Xentry Diagnostics include:

• Detailed Diagnostic Information: Access comprehensive diagnostic data, including fault codes, real-time data streams, and system statuses, facilitating swift identification of the underlying causes of vehicle problems.
• Guided Troubleshooting: Utilize the integrated guided troubleshooting feature, providing step-by-step instructions for diagnosing and resolving issues.
• Programming and Coding: Program and code various modules within the vehicle, allowing for modifications to vehicle settings and software updates.
• Up-to-Date Information: Stay informed with the latest information and updates directly from Mercedes-Benz, ensuring you’re always working with the most current data.

Mercedes Xentry Diagnostics is a robust tool that empowers automotive professionals to diagnose and repair Mercedes-Benz vehicles efficiently.

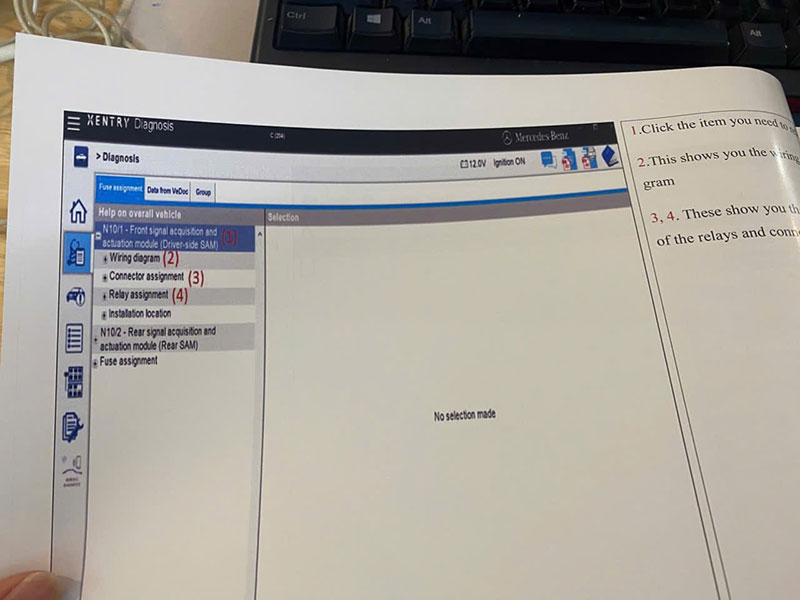

Xentry Diagnostics software interface displaying vehicle diagnostic options

Getting Started with Xentry Diagnostics

Before you begin using Mercedes Xentry Diagnostics, verify that your system meets the necessary requirements and is compatible with the software. The minimum system requirements are:

• Operating System: Windows 7, 8, 8.1, or 10
• Processor: Intel Pentium 4 or higher
• RAM: 4 GB
• Hard Drive Space: 10 GB of free space
• Internet Connection: Required for updates and access to online resources

Once you’ve confirmed your system meets these requirements, follow these steps to install the software:

1. Download the installation package from the official Mercedes-Benz website or an authorized distributor.
2. Run the installation package and adhere to the on-screen instructions to install the software.
3. Upon completion of the installation, the software will automatically launch and prompt you for your user credentials.
4. After logging in, the software will check for and install any available updates.
5. Once the updates are installed, the main interface will appear, and you can begin using the software.

Note that an active internet connection is essential for software updates and access to online resources. Furthermore, certain features may necessitate additional hardware, such as a diagnostic scanner.

Navigating the Xentry Main Interface

The Mercedes Xentry Diagnostics main interface is designed for ease of use and intuitive navigation. It comprises a series of tabs that provide access to different functionalities:

1. Diagnostics: Access diagnostic information, including fault codes, live data, and system statuses. The guided troubleshooting feature is also located here.
2. Programming: Allows programming and coding of various vehicle modules, enabling changes to vehicle settings and software updates.
3. Information: Provides access to the latest information and updates from Mercedes-Benz, along with a searchable database of information and troubleshooting guides.

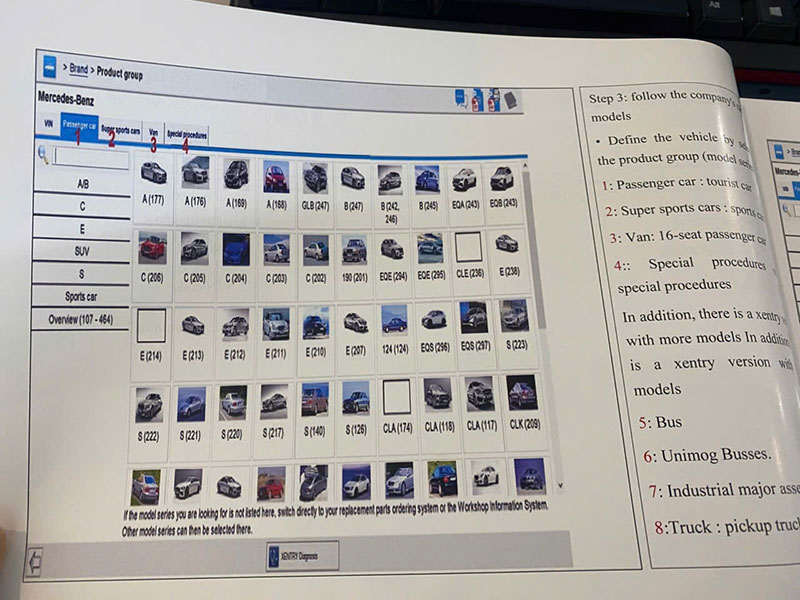

4. Vehicle Selection: Enables users to select and work with different vehicles.
5. Reports: Generate and view reports of diagnostic and programming work performed on a vehicle.
6. Help: Access help resources and the user manual for the software.

The toolbar at the top of the screen provides quick access to frequently used functions like saving and printing diagnostic information.

Deep Dive into the Diagnostics Tab

The Diagnostics tab is the primary tool for diagnosing and troubleshooting issues with Mercedes-Benz vehicles. It provides access to comprehensive diagnostic information, including fault codes, real-time data, and system statuses.

To utilize the diagnostics feature, connect a diagnostic scanner to the vehicle’s OBD-II port and select the vehicle in the Vehicle Selection tab. Once a connection is established, you can access diagnostic information by selecting the appropriate tab and sub-tab within the Diagnostics tab.

The guided troubleshooting feature is particularly valuable for less experienced users or for tackling complex problems. It offers step-by-step instructions for diagnosing and resolving issues.

You can also save, print, or export diagnostic information for later review or to share with a technician.

Exploring the Programming Tab

The Programming tab enables the programming and coding of various modules in the vehicle, allowing for modifications to vehicle settings and software updates.

To use the programming feature, connect a diagnostic scanner to the vehicle’s OBD-II port and select the vehicle from the Vehicle Selection tab. Once connected, access programming options by selecting the appropriate tab and sub-tab within the Programming tab.

The software offers a variety of programming options, including adding new keys, programming control units, updating software versions, and configuring settings. It also provides instructions and prompts to guide you through the programming process.

Note that programming functions may vary depending on the vehicle model and model year, and some functions may require additional hardware or access codes.

Leveraging the Information Tab

The Information tab provides access to the latest information and updates from Mercedes-Benz. It also includes a search function to navigate the software’s database of information and troubleshooting guides.

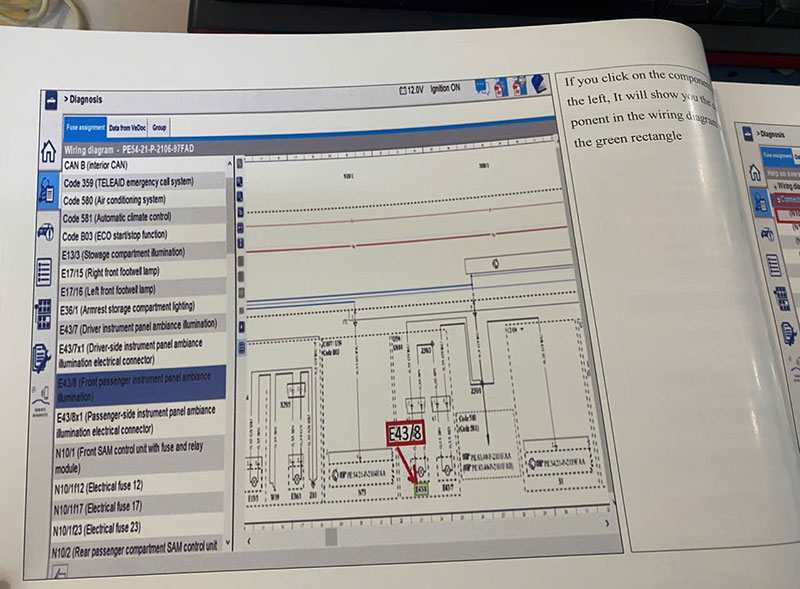

Access information by selecting the appropriate tab and sub-tab within the Information tab. Available resources include owner’s manuals, technical service bulletins, wiring diagrams, and repair instructions.

The search feature allows you to quickly locate the information you need by entering keywords or phrases. This is especially useful for finding specific information or troubleshooting guides related to a particular problem or vehicle.

You can save, print, or export the information for later reference or to share with a technician.

Utilizing the Maintenance Tab

The Maintenance tab provides access to information and tools for performing regular maintenance on Mercedes-Benz vehicles. It includes features for tracking service intervals and scheduling upcoming maintenance tasks.

Access maintenance information by selecting the appropriate tab and sub-tab within the Maintenance tab. Available resources include recommended service intervals, maintenance schedules, and parts lists.

The software allows you to schedule and track upcoming maintenance tasks, which is helpful for staying on top of service requirements and planning for future maintenance.

You can also save, print, or export the maintenance information for later reference or to share with a technician.

Mastering the Troubleshooting Tab

The Troubleshooting tab offers a comprehensive collection of troubleshooting guides and instructions for resolving common problems with Mercedes-Benz vehicles. Access troubleshooting information by selecting the appropriate tab and sub-tab within the Troubleshooting tab.

Troubleshooting guides are organized by vehicle systems and components, making it easy to find the information you need. The guides provide detailed instructions, diagrams, and recommended tools and procedures for resolving problems.

The search feature allows you to quickly find specific troubleshooting guides by entering keywords or phrases related to the issue.

In addition to troubleshooting guides, the software provides access to a database of technical service bulletins (TSBs), which contain information on known issues and recommended repairs for specific vehicle models and years.

Remember that troubleshooting guides and TSBs are for informational purposes only and should be used in conjunction with the vehicle’s service manual and guidance from a qualified technician.

Banner ad for WMS Free Auto Repair Shop Software

Conclusion

Mercedes Xentry Diagnostics is a powerful diagnostic and troubleshooting tool for Mercedes-Benz vehicles. The user-friendly interface allows easy access and navigation through various diagnostic and troubleshooting functions. The software provides a wide range of diagnostic options, including:

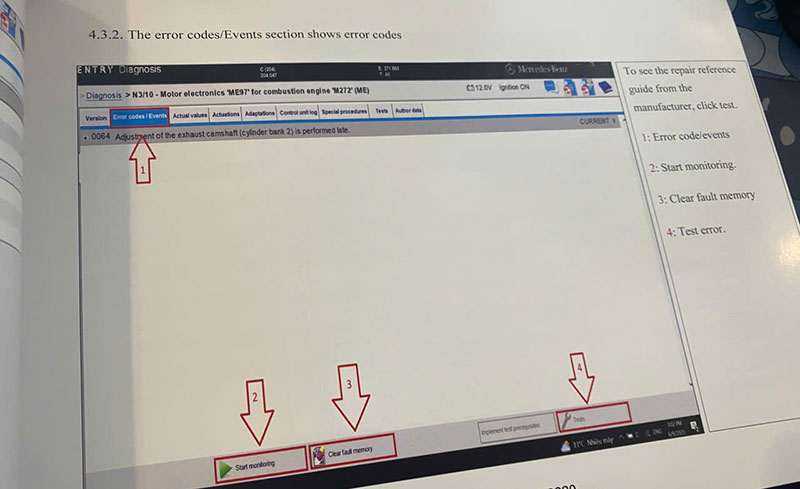

• Reading and clearing diagnostic trouble codes.
• Performing component tests.
• Viewing live data.

Additionally, it offers troubleshooting guides and instructions for resolving common problems and a database of technical service bulletins (TSBs) with information on known issues and recommended repairs.

Remember that the software’s functions may vary depending on the vehicle model and year, and some functions may require additional hardware or access codes. Always use the software in conjunction with the vehicle’s service manual and professional guidance from a qualified technician.
