How to Activate Mercedes-Benz Ventilated Seats

If your Mercedes-Benz doesn’t have the seat ventilation function enabled, you might be missing out on one of the most practical comfort features available. Ventilated Seats (Seat Ventilation) help circulate cool air through the seat cushion and backrest, reducing heat and moisture — especially useful in warm climates or during long drives.

In this guide, AutoExplain will show you how to activate Mercedes-Benz ventilated seats through proper coding, explain what’s required, and highlight how this feature enhances comfort in your . Whether your vehicle is a basic or mid-range trim, it’s possible to unlock or retrofit seat ventilation with the right tools and software configuration.

What Are Ventilated Seats?

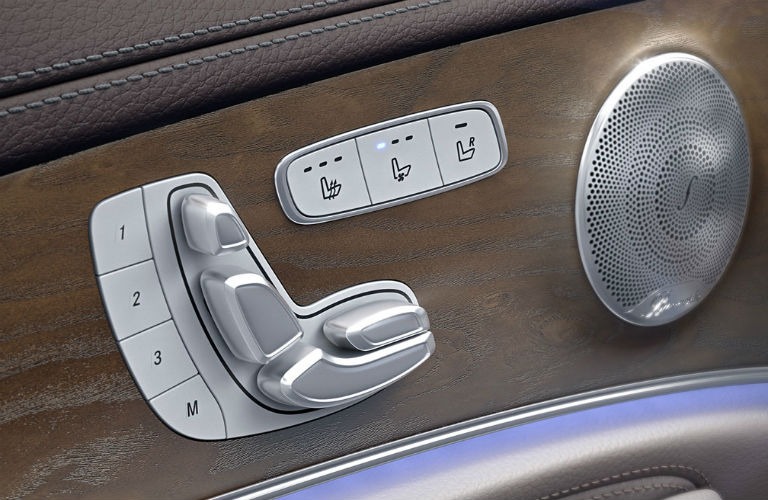

Ventilated Seats are a modern comfort feature commonly found in luxury vehicles, designed to enhance the driving experience — especially in hot weather. The system uses small built-in fans inside the seat cushion and backrest to draw in cool air from the cabin and distribute it evenly through tiny perforations on the seat surface.

This airflow helps reduce heat buildup and sweating, keeping both the driver and passengers cool and comfortable during long journeys or under intense sunlight.

The Seat Ventilation system provides multiple comfort and performance benefits designed to improve the driving experience:

• Cools the seat surface by circulating airflow through the seat cushion and backrest.
• Reduces heat buildup on the skin and clothing, especially during long periods of driving.
• Enhances comfort for both driver and passengers in hot or humid weather conditions.
• Improves overall user experience and adds to the luxury value of the vehicle.

By maintaining a pleasant temperature at the seat level, the ventilated seat function complements the car’s air-conditioning system, ensuring maximum comfort throughout every journey.

If your Mercedes-Benz is a base or mid-level version, the seat ventilation system may already be installed in the hardware but not yet activated by default. To enable this comfort feature, you’ll need to perform coding (software activation) using professional diagnostic tools. Let’s explore the essential tools and software you’ll need to prepare before starting the activation process.

Before diving into the activation process, you can read more about what ventilated seats are and how they work in our detailed guide here: What are Ventilated Seats and How Do They Work?

Required Tools and Software for Activating Seat Ventilation

To activate the Seat Ventilation feature on Mercedes-Benz models such as W222, W205, W253, and others, you’ll need specific diagnostic tools and professional programming software. Below is a list of what you should prepare before starting the coding process:

• Programming Software: DTS Monaco
• Diagnostic Device: OBD2 interface supporting CAN communication
• Laptop: Installed with DTS Monaco and compatible driver packages
• Coding Data (Configuration Files): Correctly matched to your specific Mercedes-Benz model

Once these tools are ready, you can proceed with coding the Seat Ventilation feature, unlocking the same level of comfort and functionality found in higher-trim Mercedes-Benz models.

Steps to Activate Mercedes-Benz Ventilated Seats Function

Applicable Models: Mercedes-Benz W222, W205, W253.

Follow the steps below to enable the Seat Ventilation feature using DTS Monaco:

Activate Mercedes-Benz Ventilation Seat Function

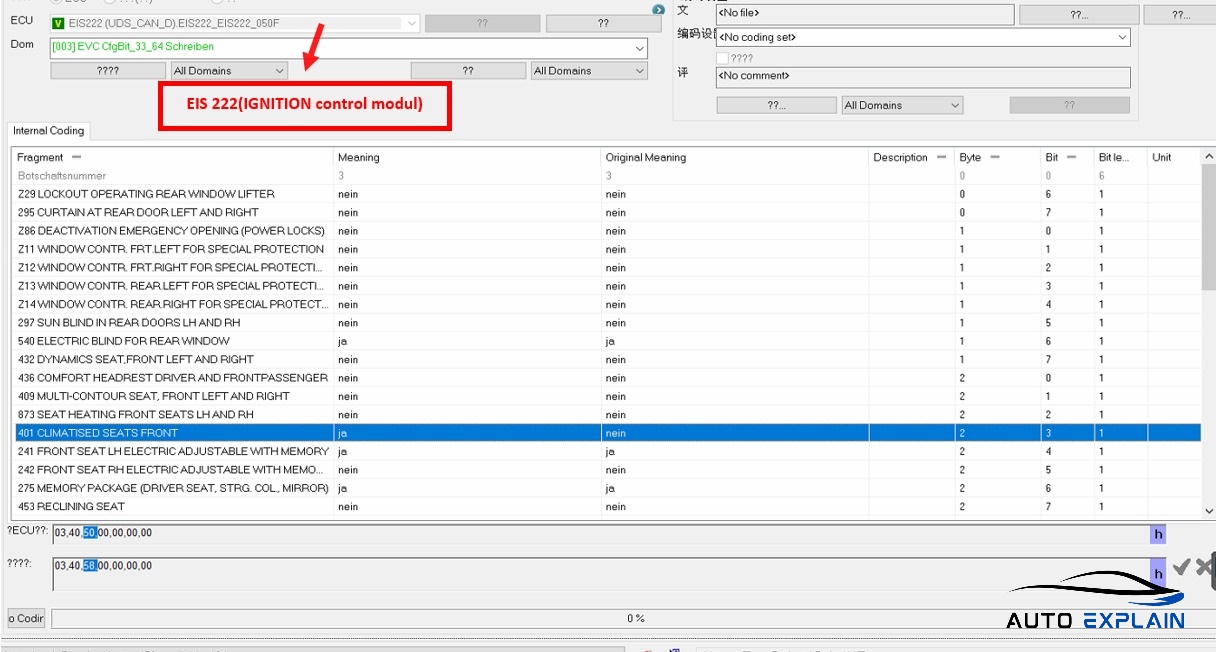

• Step 1: Connect the vehicle to your diagnostic device and open DTS Monaco.
• Step 2: Select ECU: EIS222.
• Step 3: Enter Domain: [003] EVC CeBeBit 33_64 Schreiben.
• Step 4: Locate the parameter “4011 CLIMATISED SEATS FRONT” and change its value to “Ja” (Yes).
• Step 5: Click Do Coding to execute the configuration.
• Step 6: Perform a Hard Reset to update and refresh the system.

Verification and Testing

After coding is complete, verify that the feature has been successfully activated:

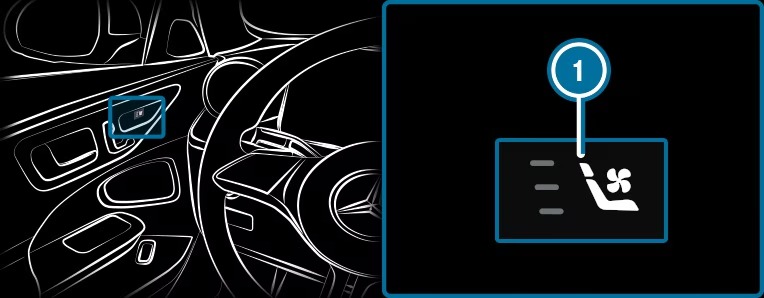

• The Seat Ventilation control option now appears on the vehicle’s central display.
• When activated, you can feel the airflow from the seat surface.
• No error codes or malfunctions appear in the HVAC or seat control systems.

Optional: Activate the Seat Heating Function (if needed)

If your vehicle does not yet have the heated seat function, follow these steps:

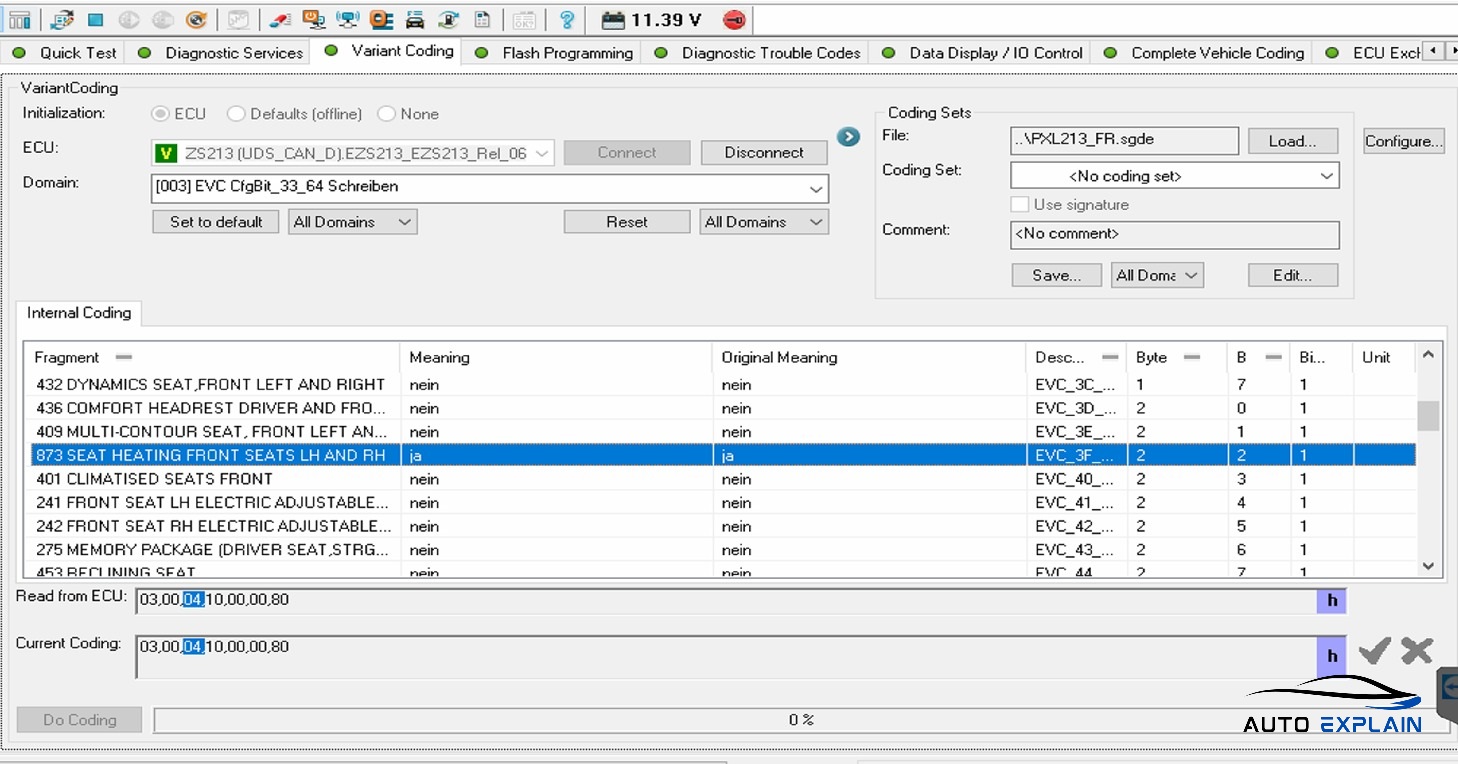

• Select ECU: EZS213.
• Enter Domain: [003] EVC CfgBit 33_64 Schreiben.
• Find the parameter “873 SEAT HEATING FRONT SEATS LH AND RH” and set its value to “Ja” (Yes).
• Click Do Coding.
• Perform a Hard Reset to apply the new configuration.

By completing these steps, you can fully enable both Seat Ventilation and Seat Heating functions—enhancing driving comfort and bringing your Mercedes-Benz closer to high-end trim levels.

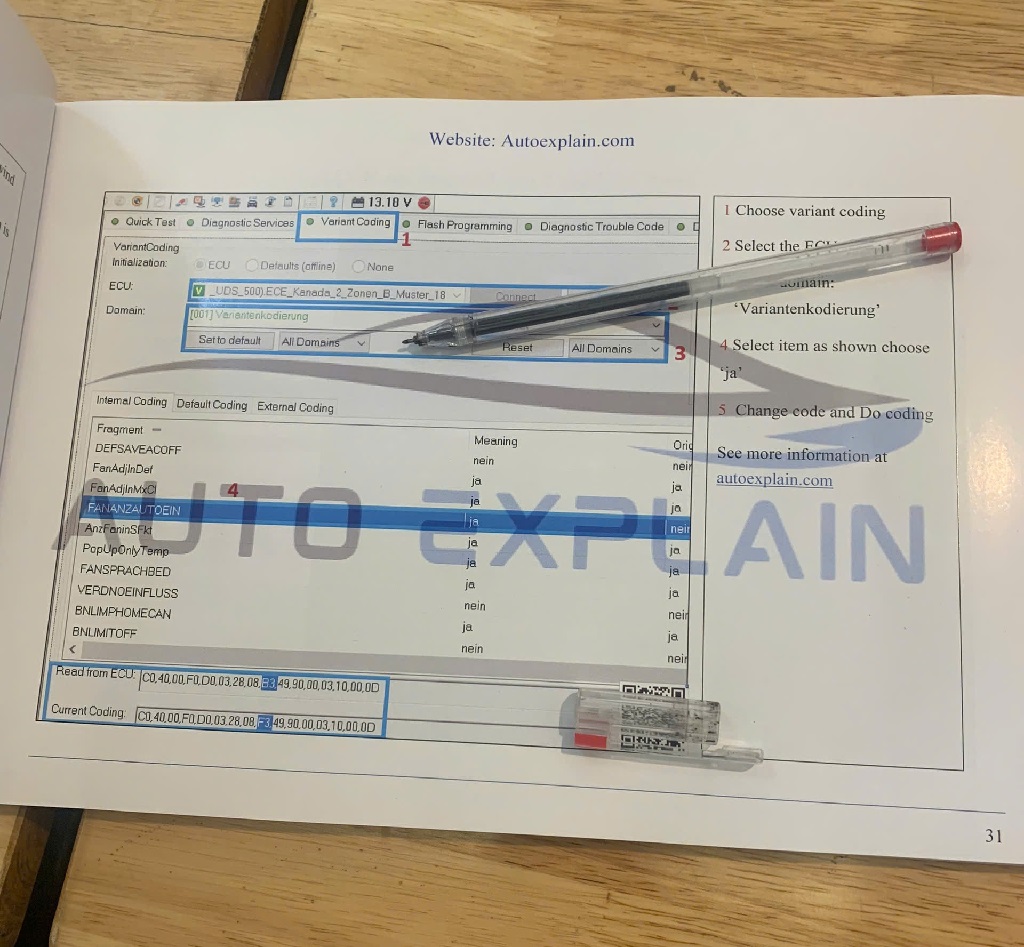

If you want a step-by-step visual guide for coding and activating advanced features like Seat Ventilation, our book DTS Monaco Advanced: Vol.2 – Unlock 100 Hidden Features on Mercedes-Benz provides detailed instructions, screenshots, and professional tips.

This section in the book covers:

• Full coding procedure using DTS Monaco
• ECU configuration maps (EIS, EZS, SAM, CGW)
• Troubleshooting common coding errors
• Practical case studies on feature activation

You can learn more about the book or get your copy here: DTS Monaco Advanced: Vol.2 – Unlock 100 Hidden Features on Mercedes-Benz

Troubleshooting Guide for Seat Ventilation Activation

Below are some common issues you may encounter during or after the coding process, along with possible causes and recommended solutions:

Tip: Always back up the original ECU coding file before making changes in DTS Monaco. This allows easy restoration in case of any malfunction or incompatibility.

Activating the Seat Ventilation feature is a subtle yet premium upgrade that elevates comfort and driving experience, especially on hot days. With the right setup and coding via DTS Monaco, you can easily unlock this luxury feature on compatible Mercedes-Benz models. The process requires precision, but when done correctly, it’s both safe and effective — turning your standard seat into a truly high-end experience.
