How Does a Turbocharger Work: The Ultimate Guide for Automotive Enthusiasts

Turbocharging is a technology used to increase the power and efficiency of an engine by forcing more air into the combustion chamber. If you’re an automotive enthusiast, a garage owner, or a technician, understanding turbochargers is crucial. AutoExplain provides you with a detailed guide on how turbochargers work, their benefits, and why they are becoming increasingly popular in modern vehicles.

1. What is a Turbocharger?

A turbocharger is essentially an air pump that compresses air and forces it into the engine’s cylinders. This allows the engine to burn more fuel, resulting in increased power output. Unlike naturally aspirated engines that rely on the vacuum created by the pistons to draw in air, turbochargers use exhaust gases to spin a turbine, which in turn drives a compressor. This forced induction system significantly enhances engine performance.

Question: What are the main components of a turbocharger system?

Answer: The main components include the turbine, compressor, and center housing rotating assembly (CHRA). The turbine captures exhaust gases, the compressor forces air into the engine, and the CHRA houses the rotating components.

2. The Basic Principles of Turbocharging

Internal combustion engines need air and fuel to generate power. Increasing the amount of air and fuel within specific limits enhances the engine’s power output. However, simply adding more fuel without sufficient air results in an overly rich mixture, leading to incomplete combustion and various performance issues. Conversely, too much air can create a lean condition, which can be equally damaging to the engine.

A turbocharger addresses this issue by increasing the amount of air entering the engine. Air surrounds us all the time and exerts pressure (approximately 15 psi at sea level). The engine’s intake stroke naturally draws air into the cylinders. A turbocharger enhances this process by compressing the air and forcing it into the engine. The compressed air mixes with the injected fuel, enabling more efficient combustion and increased power output.

Question: How does a turbocharger increase engine power?

Answer: A turbocharger increases engine power by compressing more air into the cylinders, allowing more fuel to be burned, thus creating a more powerful combustion.

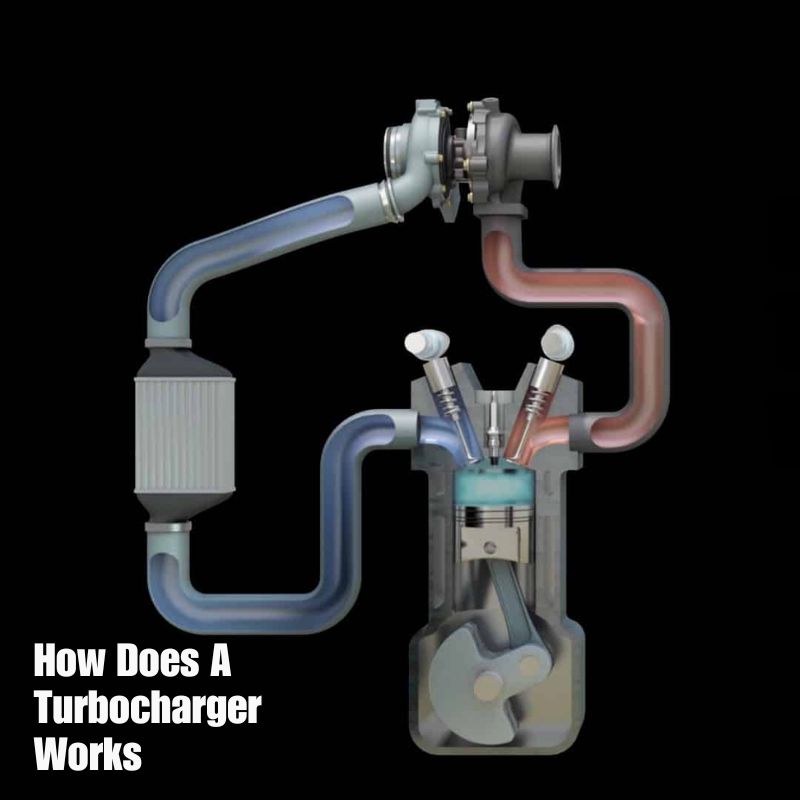

3. The Working Mechanism of a Turbocharger

The operation of a turbocharger can be broken down into several key stages:

3.1. Exhaust Gas Capture

Instead of being expelled through the exhaust pipe, the hot gases produced during combustion are directed to the turbocharger. In an internal combustion engine, cylinders fire in sequence, resulting in exhaust exiting the combustion chamber in irregular pulses.

Traditional single-scroll turbochargers channel these irregular exhaust pulses into the turbine, causing collisions and interference that reduce flow strength. In contrast, a twin-scroll turbocharger collects exhaust from pairs of cylinders in alternating sequences. This design optimizes exhaust flow, improving turbocharger efficiency.

Question: What is the difference between single-scroll and twin-scroll turbochargers?

Answer: Single-scroll turbochargers combine exhaust pulses, which can cause interference, while twin-scroll turbochargers separate exhaust pulses from different cylinder pairs, improving flow and reducing turbo lag.

3.2. Turbine Rotation

The exhaust gases strike the turbine blades, causing them to spin at speeds of up to 150,000 rpm. The alternating pulses of exhaust, especially in twin-scroll designs, help to minimize turbo lag, providing quicker throttle response.

Question: How fast does a turbocharger turbine spin?

Answer: A turbocharger turbine can spin up to 150,000 rpm, depending on the engine and turbocharger design.

3.3. Exhaust Gas Venting

After driving the turbine, the exhaust gases flow through an outlet to the catalytic converter. Here, harmful pollutants like carbon monoxide and nitrous oxides are removed before the gases exit through the tailpipe, reducing the vehicle’s environmental impact.

Question: What happens to the exhaust gases after they pass through the turbocharger?

Answer: The exhaust gases pass through a catalytic converter to remove pollutants before being released through the tailpipe.

3.4. Air Compression

Simultaneously, the turbine powers an air compressor. The compressor draws in cold, clean air and compresses it to approximately 30% above atmospheric pressure (around 19 psi). This dense, oxygen-rich air is then forced into the combustion chamber. The increased oxygen level enables the engine to burn fuel more completely, boosting performance, especially in smaller engines. As a result, turbocharged engines can generate up to 30% more power than naturally aspirated engines of the same size.

Question: How much does a turbocharger compress the air?

Answer: A turbocharger compresses air to about 30% above atmospheric pressure, or roughly 19 pounds per square inch.

4. Advantages of Turbocharging

Turbocharging offers several significant benefits:

4.1. Increased Power and Torque

As previously mentioned, turbocharging can increase an engine’s power output by up to 30% compared to a naturally aspirated engine of the same size. This translates to improved acceleration and overall performance.

Question: What is the main advantage of turbocharging in terms of engine performance?

Answer: The main advantage is increased power and torque, allowing for better acceleration and overall performance from a smaller engine.

4.2. Improved Fuel Efficiency

Turbocharged engines often offer better fuel efficiency. By maximizing combustion efficiency, these engines extract more power from each unit of fuel, reducing fuel consumption and emissions.

Question: Does turbocharging improve fuel efficiency?

Answer: Yes, turbocharging can improve fuel efficiency by maximizing combustion efficiency, allowing the engine to extract more power from each unit of fuel.

4.3. Altitude Compensation

Turbocharging can compensate for power loss at high altitudes. In mountainous regions, where the air is less dense, turbochargers force more air into the engine, maintaining performance levels closer to those at sea level. An engine operating at 8,000 feet typically produces only 75% of the power it would at sea level; turbocharging helps mitigate this loss.

Question: How does a turbocharger help in high-altitude conditions?

Answer: Turbocharging compensates for the lower air density at high altitudes by forcing more air into the engine, helping maintain power output.

4.4. Reduced Engine Size

Turbocharging enables manufacturers to produce smaller engines that deliver the power of larger, naturally aspirated engines. This downsizing reduces weight and contributes to better fuel economy.

Question: Why are smaller turbocharged engines becoming more common?

Answer: Smaller turbocharged engines provide the power of larger engines while improving fuel efficiency and reducing weight.

5. Types of Turbochargers

There are several types of turbochargers, each designed for specific applications:

5.1. Single Turbochargers

Single turbochargers are the most common type, featuring a single turbine and compressor. They are suitable for a wide range of vehicles and offer a good balance of performance and cost.

Question: What is a single turbocharger, and where is it commonly used?

Answer: A single turbocharger is the most common type, used in various vehicles to provide a balance of performance and cost.

5.2. Twin-Turbochargers

Twin-turbocharger systems use two turbochargers, which can be configured in parallel or sequentially. Parallel setups involve each turbocharger serving a separate set of cylinders, while sequential setups use a smaller turbocharger for low-end response and a larger one for high-end power.

Question: How do twin-turbocharger systems work?

Answer: Twin-turbocharger systems use two turbochargers configured in parallel or sequentially to improve engine performance across the RPM range.

5.3. Variable Geometry Turbochargers (VGT)

VGTs feature adjustable vanes that alter the angle and speed of exhaust gases hitting the turbine blades. This design optimizes turbocharger performance at different engine speeds, reducing turbo lag and improving overall efficiency.

Question: What are the advantages of variable geometry turbochargers?

Answer: Variable geometry turbochargers optimize performance at different engine speeds by adjusting the angle of exhaust gases on the turbine blades, reducing turbo lag and improving efficiency.

5.4. Electric Turbochargers

Electric turbochargers use an electric motor to spin the compressor, eliminating turbo lag entirely. These systems offer immediate boost and can be integrated with hybrid and electric vehicles.

Question: How do electric turbochargers eliminate turbo lag?

Answer: Electric turbochargers use an electric motor to spin the compressor, providing immediate boost and eliminating turbo lag.

6. Common Turbocharger Issues

Despite their benefits, turbochargers can experience problems. Here are some common issues:

6.1. Turbo Lag

Turbo lag is the delay between pressing the accelerator and feeling the boost from the turbocharger. This delay is caused by the time it takes for the turbine to spin up to speed. Modern turbocharger designs, such as twin-scroll and electric turbochargers, aim to minimize this lag.

Question: What causes turbo lag, and how can it be minimized?

Answer: Turbo lag is caused by the time it takes for the turbine to spin up to speed. It can be minimized using designs like twin-scroll and electric turbochargers.

6.2. Oil Leaks

Oil leaks can occur due to damaged seals or excessive pressure within the turbocharger. These leaks can lead to reduced performance and potential engine damage. Regular maintenance and inspection can help prevent oil leaks.

Question: What causes oil leaks in turbochargers, and how can they be prevented?

Answer: Oil leaks can be caused by damaged seals or excessive pressure. Regular maintenance and inspection can help prevent them.

6.3. Overheating

Turbochargers can generate significant heat, which can lead to component failure if not properly managed. Cooling systems, including intercoolers and oil coolers, are essential for maintaining optimal operating temperatures.

Question: Why is overheating a concern in turbochargers, and how is it managed?

Answer: Overheating can lead to component failure. Cooling systems like intercoolers and oil coolers are used to maintain optimal temperatures.

6.4. Compressor Surge

Compressor surge occurs when the compressed air flows backward through the compressor, causing noise and potential damage. This issue typically happens when the throttle is suddenly closed at high engine speeds. Blow-off valves and diverter valves are used to prevent compressor surge.

Question: What is compressor surge, and how can it be prevented?

Answer: Compressor surge is the backward flow of compressed air through the compressor, causing noise and potential damage. Blow-off valves and diverter valves are used to prevent it.

7. Turbocharger Maintenance and Care

Proper maintenance is essential for ensuring the longevity and performance of a turbocharger:

7.1. Regular Oil Changes

Clean oil is crucial for lubricating the turbocharger’s bearings and preventing wear. Follow the manufacturer’s recommended oil change intervals and use high-quality synthetic oil.

Question: Why are regular oil changes important for turbochargers?

Answer: Regular oil changes with high-quality synthetic oil are crucial for lubricating the turbocharger’s bearings and preventing wear.

7.2. Air Filter Maintenance

A clean air filter prevents dirt and debris from entering the turbocharger and damaging the compressor blades. Regularly inspect and replace the air filter as needed.

Question: How does air filter maintenance affect turbocharger performance?

Answer: A clean air filter prevents dirt and debris from entering the turbocharger, protecting the compressor blades and maintaining performance.

7.3. Coolant Checks

Ensure the cooling system is functioning correctly to prevent overheating. Check coolant levels and inspect for leaks regularly.

Question: Why is it important to check coolant levels in turbocharged engines?

Answer: Checking coolant levels ensures the cooling system functions correctly, preventing the turbocharger from overheating.

7.4. Professional Inspections

Schedule regular inspections with a qualified mechanic to identify and address potential issues before they escalate.

Question: How can professional inspections help maintain a turbocharger?

Answer: Professional inspections can identify and address potential issues before they escalate, ensuring the turbocharger’s longevity and performance.

8. Turbocharging in Modern Vehicles

Turbocharging is becoming increasingly prevalent in modern vehicles due to its ability to enhance power and efficiency. Automakers are using turbochargers to meet stringent emissions regulations while delivering the performance that drivers demand. According to a study by SEMA (Specialty Equipment Market Association), the demand for aftermarket turbochargers and related components is steadily growing, reflecting the technology’s popularity.

Question: Why is turbocharging becoming more common in modern vehicles?

Answer: Turbocharging allows automakers to meet emissions regulations while delivering enhanced power and efficiency, driving its increasing prevalence.

9. AutoExplain: Your Partner in Automotive Excellence

As technology advances, the complexity of automotive systems increases. AutoExplain is here to help you navigate these challenges with our comprehensive coding and programming solutions. Whether you are a seasoned technician or a garage owner looking to expand your services, AutoExplain provides the tools and expertise you need to excel.

9.1. Advanced Diagnostic and Programming Tools

AutoExplain offers a range of advanced diagnostic and programming tools designed to streamline your workflow and enhance your capabilities. Our user-friendly interfaces and comprehensive support ensure you can tackle even the most complex automotive issues with confidence.

Question: What types of tools does AutoExplain offer for turbocharger diagnostics and programming?

Answer: AutoExplain provides advanced diagnostic and programming tools designed to streamline workflow and enhance capabilities for complex automotive issues, including turbochargers.

9.2. Expert Technical Support

Our team of experienced technicians is available to provide expert technical support whenever you need it. Whether you have questions about coding, programming, or troubleshooting, we are here to help you find the right solutions.

Question: What kind of technical support does AutoExplain provide?

Answer: AutoExplain offers expert technical support from experienced technicians to help with coding, programming, and troubleshooting.

9.3. Customized Solutions

At AutoExplain, we understand that every garage has unique needs. That’s why we offer customized coding and programming solutions tailored to your specific requirements. Whether you need to optimize engine performance, recalibrate sensors, or reprogram control units, we can help you achieve your goals.

Question: Can AutoExplain provide customized solutions for specific garage needs?

Answer: Yes, AutoExplain offers customized coding and programming solutions tailored to meet the unique requirements of each garage.

10. The Future of Turbocharging

The future of turbocharging looks promising, with ongoing advancements aimed at improving efficiency and reducing emissions. Electric turbochargers, for example, are expected to become more widespread as automakers continue to electrify their vehicle lineups. Additionally, research into advanced materials and turbine designs promises to further enhance turbocharger performance.

According to a study by the University of Michigan’s Automotive Research Center, advancements in turbocharger technology could lead to a 10-15% improvement in fuel efficiency over the next decade.

Question: What are some future trends in turbocharger technology?

Answer: Future trends include the increased use of electric turbochargers and advancements in materials and turbine designs to improve efficiency and reduce emissions.

11. Frequently Asked Questions (FAQs) About Turbochargers

Question: What is turbo lag, and how can it be reduced?

Answer: Turbo lag is the delay between pressing the accelerator and feeling the boost. It can be reduced using twin-scroll turbochargers, variable geometry turbochargers, and electric turbochargers.

Question: How does a turbocharger differ from a supercharger?

Answer: A turbocharger is powered by exhaust gases, while a supercharger is mechanically driven by the engine. Turbochargers are generally more efficient, while superchargers provide more immediate boost.

Question: Can any engine be turbocharged?

Answer: While it is possible to turbocharge many engines, some are better suited for it than others. Factors such as engine design, compression ratio, and material strength should be considered.

Question: What type of oil is best for turbocharged engines?

Answer: High-quality synthetic oil is generally recommended for turbocharged engines due to its superior lubrication and heat resistance properties.

Question: How often should I service my turbocharger?

Answer: Turbocharger service intervals vary depending on the vehicle and operating conditions. Follow the manufacturer’s recommendations and schedule regular inspections with a qualified mechanic.

Question: What are the signs of a failing turbocharger?

Answer: Signs of a failing turbocharger include reduced power, increased oil consumption, unusual noises, and blue smoke from the exhaust.

Question: Can turbocharging improve fuel economy?

Answer: Yes, turbocharging can improve fuel economy by allowing for smaller, more efficient engines that deliver the power of larger engines.

Question: Are aftermarket turbochargers reliable?

Answer: The reliability of aftermarket turbochargers depends on the quality of the product and the installation process. Choose reputable brands and have the turbocharger installed by a qualified professional.

Question: How much does it cost to replace a turbocharger?

Answer: The cost of replacing a turbocharger varies depending on the vehicle, turbocharger type, and labor rates. It can range from a few hundred to several thousand dollars.

Question: What is the role of an intercooler in a turbocharged engine?

Answer: An intercooler cools the compressed air from the turbocharger before it enters the engine, increasing its density and improving performance.

Conclusion

Understanding how a turbocharger works is essential for anyone involved in the automotive industry. From increasing power and efficiency to compensating for altitude, turbochargers offer numerous benefits. As technology continues to evolve, turbocharging will remain a crucial component of modern vehicles.
