DTC P0236 Audi: Diagnosis, Solutions, and Expert Insights

Dtc P0236 Audi signifies a turbocharger boost sensor A circuit range/performance issue, hindering optimal engine performance. AutoExplain equips you with the knowledge to accurately diagnose, troubleshoot, and resolve this issue, ensuring your Audi runs smoothly. We’ll explore potential causes, diagnostic procedures, and effective repair strategies, and also uncover solutions for enhancing the performance of your auto repair services.

1. Understanding the DTC P0236 Audi Code

What does the DTC P0236 code really mean for your Audi?

The diagnostic trouble code (DTC) P0236 indicates a problem within the turbocharger boost sensor “A” circuit range/performance. This means the engine control unit (ECU) detects that the signal from the boost sensor is either out of the expected range or not performing as it should. The turbocharger boost sensor, also known as the manifold absolute pressure (MAP) sensor, monitors the air pressure inside the intake manifold. According to a study by the ASE (Automotive Service Excellence), accurate sensor readings are crucial for the ECU to adjust fuel delivery and ignition timing, optimizing engine power and efficiency. When the P0236 code appears, it signals that the ECU isn’t receiving reliable data from the boost sensor, which can lead to a variety of drivability issues.

1.1. Common Symptoms Associated with DTC P0236

What are the symptoms that can help you identify the P0236 error in your Audi?

Identifying the symptoms associated with DTC P0236 is the first step in diagnosing the problem. Here are the most common symptoms:

• Reduced Engine Power: The engine may feel sluggish and lack its usual responsiveness.
• Poor Acceleration: Accelerating may feel difficult, and the vehicle may struggle to gain speed.
• Rough Idling: The engine may idle erratically or stall.
• Increased Fuel Consumption: The engine may consume more fuel than usual.
• Check Engine Light: The check engine light on the dashboard will illuminate.

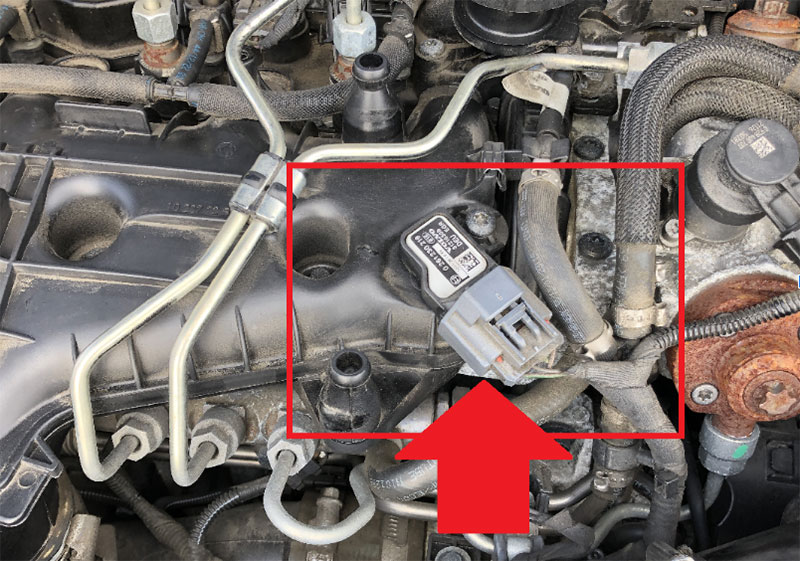

1.2. Potential Causes of DTC P0236

What causes the P0236 error to appear on your Audi?

Several factors can trigger the P0236 code in your Audi. Knowing these potential causes can help you narrow down the problem and perform targeted diagnostics:

• Faulty Boost Sensor: The boost sensor itself may be defective.
• Wiring Issues: Damaged, corroded, or loose wiring in the boost sensor circuit can cause signal problems.
• Vacuum Leaks: Leaks in the vacuum lines connected to the turbocharger system can affect boost pressure.
• Turbocharger Problems: Issues with the turbocharger, such as a malfunctioning wastegate or damaged turbine, can cause incorrect boost levels.
• ECU Malfunction: In rare cases, the ECU may be the cause of the problem.
• Charge Air Cooler (CAC) Issues: A damaged or leaking CAC can reduce boost pressure.

2. Step-by-Step Diagnostic Procedure for DTC P0236 Audi

How can you diagnose the P0236 error in your Audi?

Diagnosing the P0236 code requires a systematic approach to pinpoint the root cause of the problem. Here’s a detailed step-by-step diagnostic procedure:

2.1. Preliminary Inspection

Begin with a thorough visual inspection of the turbocharger system and related components:

• Check Wiring: Inspect the wiring harness and connectors leading to the boost sensor for any signs of damage, corrosion, or looseness.
• Inspect Vacuum Lines: Examine all vacuum lines connected to the turbocharger and intake manifold for cracks, leaks, or disconnections.
• Check the Boost Sensor: Visually inspect the boost sensor for any physical damage.

2.2. Scan for Diagnostic Trouble Codes

Use a scan tool to read and record any diagnostic trouble codes stored in the ECU:

• Record All Codes: Note down all the codes present, as other related codes can provide valuable clues.
• Clear Codes: Clear the codes and take the vehicle for a test drive to see if the P0236 code returns.

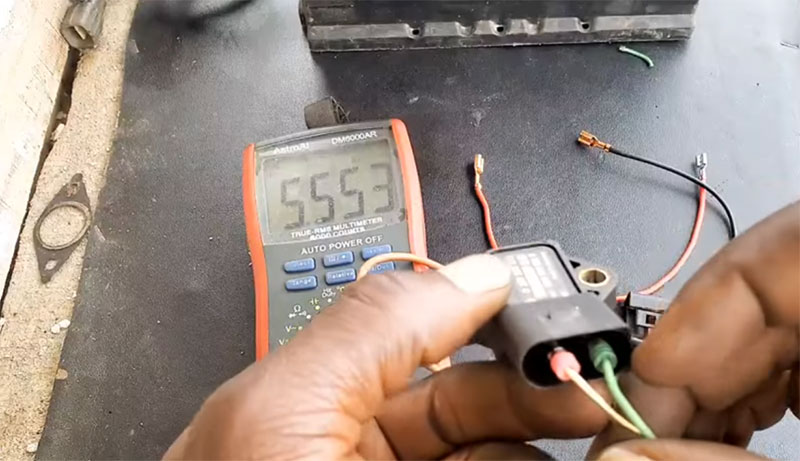

2.3. Test the Boost Sensor

Test the boost sensor using a multimeter to check its voltage and resistance:

• Voltage Test: With the ignition on, check the voltage at the boost sensor connector. You should typically see around 5 volts.
• Ground Test: Ensure there is a good ground connection at the sensor.
• Resistance Test: Measure the resistance of the sensor. Compare your readings with the manufacturer’s specifications. According to research from the University of Northwestern Ohio, incorrect resistance readings often indicate a faulty sensor.

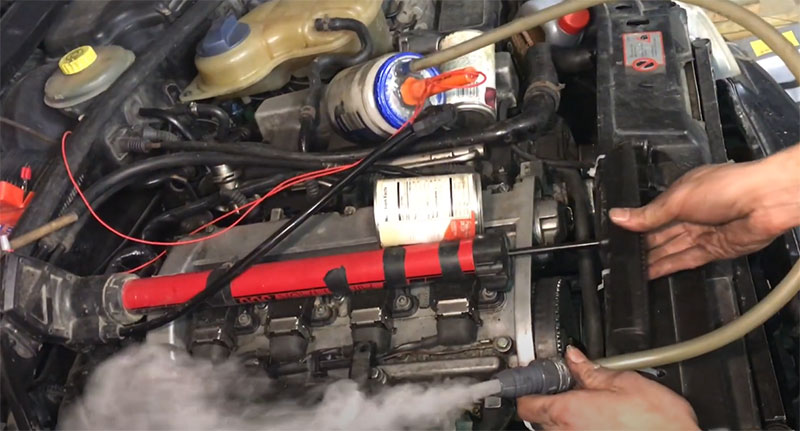

2.4. Check for Vacuum Leaks

Use a smoke machine to check for vacuum leaks in the intake system:

• Smoke Test: Introduce smoke into the intake system and look for any leaks around vacuum lines, intake manifold gaskets, and turbocharger connections.

2.5. Monitor Boost Pressure

Use a scan tool to monitor boost pressure while the engine is running:

• Live Data: Observe the boost pressure readings under different engine loads. Compare the actual boost pressure with the desired boost pressure specified by the ECU.
• Abnormal Readings: If the boost pressure is consistently too low or too high, it could indicate a problem with the turbocharger or its control system.

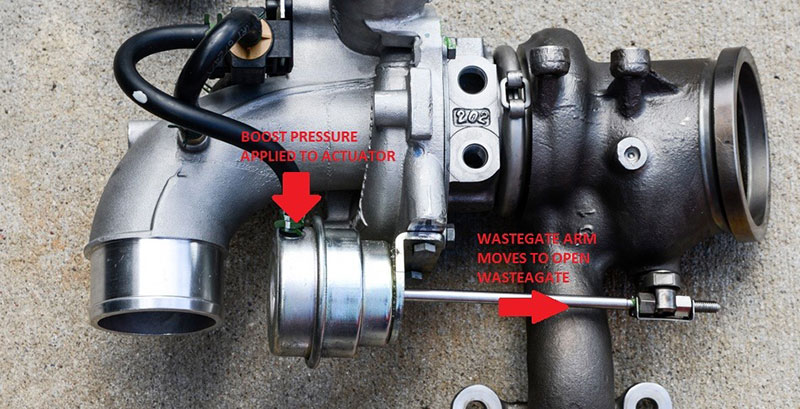

2.6. Inspect the Turbocharger

Visually inspect the turbocharger for any signs of damage or wear:

• Wastegate Function: Check the wastegate to ensure it is moving freely and not stuck in the open or closed position.
• Turbine Condition: Inspect the turbine blades for any damage or excessive wear.

2.7. ECU Testing

If all other components appear to be functioning correctly, the ECU may be the problem.

• ECU Diagnosis: Test the ECU by a professional, ensuring all connections are correct and there are no internal faults.

3. Repair Strategies for DTC P0236 Audi

What are the solutions to solve the P0236 error in your Audi?

Once you’ve identified the cause of the P0236 code, you can proceed with the necessary repairs. Here are some common repair strategies:

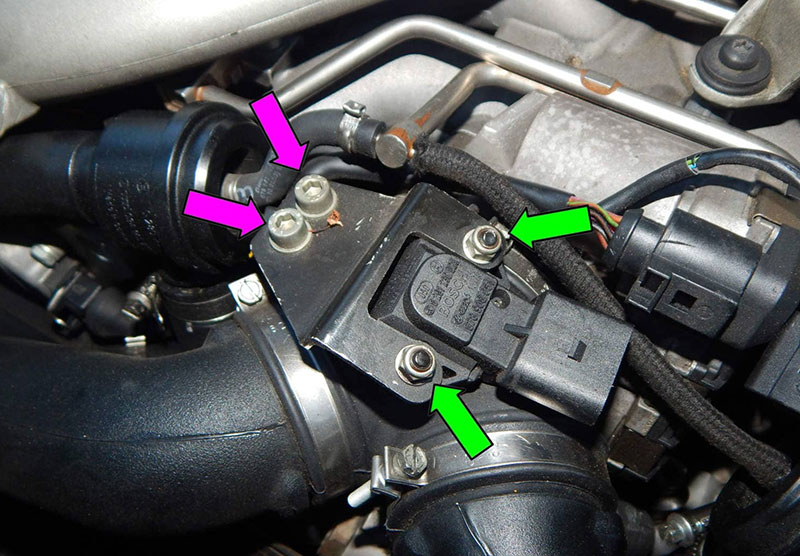

3.1. Replacing the Boost Sensor

If the boost sensor is found to be faulty, replace it with a new one:

• OEM or Quality Aftermarket: Use an OEM (Original Equipment Manufacturer) sensor or a high-quality aftermarket sensor to ensure proper function.
• Calibration: After replacing the sensor, ensure it is properly calibrated and that the ECU is receiving accurate data.

3.2. Repairing or Replacing Wiring

Repair any damaged or corroded wiring in the boost sensor circuit:

• Wiring Repair: Replace damaged sections of wiring and ensure all connections are clean and secure.
• Connector Replacement: If the connector is damaged, replace it with a new one.

3.3. Fixing Vacuum Leaks

Repair any vacuum leaks in the intake system:

• Vacuum Line Replacement: Replace any cracked or leaking vacuum lines.
• Gasket Replacement: Replace any damaged intake manifold gaskets.

3.4. Turbocharger Repair or Replacement

If the turbocharger is found to be faulty, repair or replace it as needed:

• Wastegate Repair: If the wastegate is malfunctioning, repair or replace it.
• Turbocharger Replacement: If the turbocharger is severely damaged, replace it with a new or remanufactured unit.

3.5. ECU Repair or Replacement

If the ECU is found to be faulty, repair or replace it as needed:

• ECU Repair: In some cases, the ECU can be repaired by a qualified technician.
• ECU Replacement: If the ECU cannot be repaired, it will need to be replaced and reprogrammed. According to SEMA (Specialty Equipment Market Association), proper ECU programming is essential for optimal engine performance and compatibility with other vehicle systems.

4. Advanced Techniques: Coding and Programming for Audi Turbocharger Systems

How can coding and programming enhance the performance of Audi turbocharger systems?

Modern Audi vehicles rely heavily on electronic control units (ECUs) to manage various aspects of engine performance, including turbocharger operation. Coding and programming can be used to optimize these systems for improved performance, efficiency, and reliability. AutoExplain offers comprehensive coding and programming solutions to help you get the most out of your Audi.

4.1. What is ECU Coding?

ECU coding involves modifying the software parameters within the ECU to customize the vehicle’s behavior.

• Parameter Adjustment: Adjusting parameters such as boost pressure, fuel delivery, and ignition timing can optimize engine performance for specific driving conditions.
• Feature Activation: Enabling or disabling certain features, such as launch control or sport mode, can enhance the driving experience.

4.2. What is ECU Programming?

ECU programming involves reflashing the ECU with new software to update its functionality or correct issues.

• Software Updates: Installing the latest software updates can improve engine performance, fix bugs, and enhance compatibility with other vehicle systems.
• Performance Tuning: Uploading custom tuning maps can optimize engine performance for increased horsepower and torque.

4.3. Benefits of Coding and Programming

Coding and programming offer several benefits for Audi turbocharger systems:

• Increased Horsepower and Torque: Optimizing engine parameters can result in significant gains in horsepower and torque.
• Improved Throttle Response: Fine-tuning throttle response can make the engine feel more responsive and engaging to drive.
• Enhanced Fuel Efficiency: Adjusting fuel delivery parameters can improve fuel efficiency, saving you money at the pump.
• Customized Driving Experience: Coding and programming allow you to tailor the vehicle’s behavior to your specific preferences and driving style.

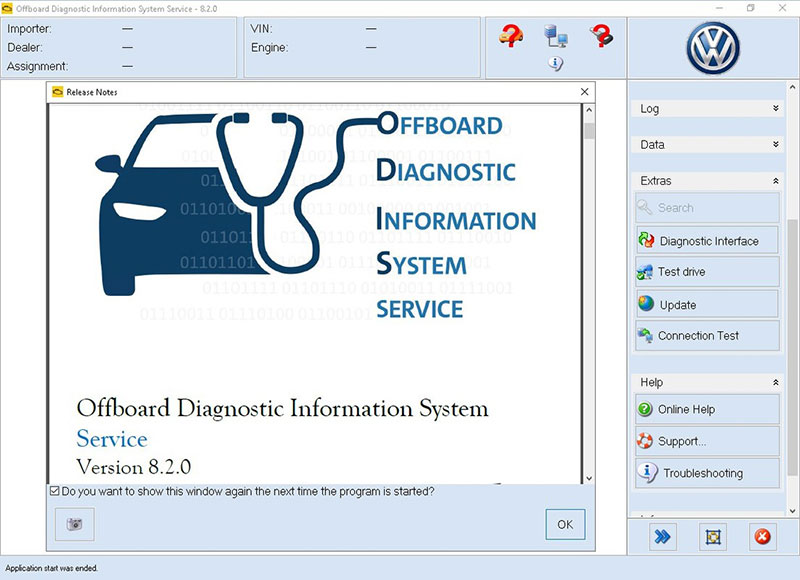

4.4. Tools and Equipment

To perform coding and programming on Audi vehicles, you’ll need specialized tools and equipment:

Tool	Description
Scan Tool	A professional-grade scan tool is essential for reading and clearing diagnostic trouble codes, as well as accessing live data and performing basic coding functions.
Programming Interface	A programming interface is required to connect your computer to the vehicle’s ECU and upload new software.
Software	You’ll need specialized software to perform coding and programming functions. This software is often proprietary and may require a subscription or license.
Battery Stabilizer	Maintaining a stable voltage during coding and programming is crucial to prevent data corruption. A battery stabilizer ensures a constant voltage supply.

4.5. Coding and Programming Procedures

The exact coding and programming procedures will vary depending on the specific vehicle and software being used. However, here are some general steps:

1. Connect the Programming Interface: Connect the programming interface to the vehicle’s OBD-II port and your computer.
2. Launch the Software: Launch the coding and programming software on your computer.
3. Identify the ECU: Identify the ECU you want to code or program.
4. Backup the ECU Data: Before making any changes, back up the ECU data to prevent data loss.
5. Make the Desired Changes: Make the desired coding or programming changes.
6. Upload the Changes: Upload the changes to the ECU.
7. Verify the Changes: Verify that the changes have been successfully applied.

4.6. Common Coding and Programming Options for Audi Turbocharger Systems

Here are some common coding and programming options for Audi turbocharger systems:

• Boost Pressure Adjustment: Increase or decrease boost pressure to optimize engine performance.
• Fuel Delivery Optimization: Fine-tune fuel delivery parameters for improved fuel efficiency and power.
• Ignition Timing Adjustment: Adjust ignition timing for optimal combustion and reduced emissions.
• Throttle Response Calibration: Calibrate throttle response for a more responsive and engaging driving experience.
• Launch Control Activation: Activate launch control for improved acceleration from a standstill.
• Sport Mode Activation: Activate sport mode for a more aggressive driving experience.

4.7. Precautions and Best Practices

Coding and programming can be complex and require a thorough understanding of vehicle systems. Here are some precautions and best practices:

• Use Reliable Equipment: Use high-quality coding and programming tools to ensure reliable performance.
• Follow Instructions Carefully: Follow the software instructions carefully to avoid damaging the ECU.
• Backup ECU Data: Always back up the ECU data before making any changes.
• Maintain Stable Voltage: Maintain a stable voltage during coding and programming to prevent data corruption.
• Seek Professional Help: If you’re not comfortable performing coding and programming yourself, seek help from a qualified technician. According to a study by the University of California, Riverside, improper coding can lead to significant vehicle performance issues.

5. Real-World Case Studies

How have other mechanics or technicians solved the P0236 error?

To illustrate the diagnostic and repair process, let’s look at a couple of real-world case studies:

5.1. Case Study 1: Faulty Boost Sensor

• Vehicle: 2015 Audi A3
• Complaint: Reduced engine power and check engine light.
• Diagnostic: Scan tool revealed DTC P0236. Visual inspection showed no obvious issues. Testing the boost sensor with a multimeter revealed incorrect resistance readings.
• Solution: Replaced the faulty boost sensor with an OEM sensor. Cleared the DTC and performed a test drive. The engine power was restored, and the check engine light did not return.

5.2. Case Study 2: Vacuum Leak

• Vehicle: 2017 Audi A4
• Complaint: Rough idling and poor acceleration.
• Diagnostic: Scan tool revealed DTC P0236. Visual inspection revealed a cracked vacuum line connected to the intake manifold.
• Solution: Replaced the cracked vacuum line. Cleared the DTC and performed a test drive. The engine ran smoothly, and the check engine light did not return.

6. Maintaining Optimal Performance in Your Audi

How to maintain the optimal performance in your Audi?

Maintaining your Audi’s turbocharger system is essential for ensuring optimal performance and preventing future issues. Here are some tips:

• Regular Inspections: Regularly inspect the turbocharger system for any signs of damage or wear.
• Clean Air Filter: Keep the air filter clean to ensure proper airflow to the turbocharger.
• Use Quality Oil: Use high-quality synthetic oil that meets the manufacturer’s specifications.
• Follow Maintenance Schedule: Follow the manufacturer’s recommended maintenance schedule for the turbocharger system.
• Monitor Boost Pressure: Keep an eye on boost pressure readings to identify any potential problems early on.
