What’s the Difference Between a Wastegate and a Blow Off Valve?

Wastegates and blow off valves (BOVs) both vent air in a turbocharged engine, but AutoExplain wants you to know they handle different air flows for very different reasons. Wastegates control turbo speed on the exhaust side, while blow off valves release excess pressure on the intake side to protect your turbo from damage. Let’s explore how these essential components work with your turbocharger, including the impact on performance and how AutoExplain can help you optimize your system for peak efficiency. Understanding these components is key for maintaining and improving the performance of turbocharged engines, ensuring longevity and responsiveness.

1. Understanding Turbo Wastegates

Turbo wastegates regulate the speed of the turbocharger shaft by venting exhaust gases around the turbine. Positioned on the exhaust manifold before the turbine housing inlet, as shown in Figure 1, they’re crucial for controlling boost levels.

Diagram of a wastegate placed on the exhaust manifold before the turbine housing inlet

As engine RPM increases, more exhaust air flows to the turbine housing, which spins the turbo faster. According to a study by SEMA, most applications don’t need all of the available boost; the only way to limit the boosted air is to slow the turbo. Wastegates accomplish this by reducing exhaust airflow to the turbine housing, venting excess exhaust. This prevents the turbo from overspeeding and producing excessive boost.

How Wastegates Work

Wastegates open based on the PSI rating of their internal springs. These springs press down on the valve and diaphragm, keeping it closed. Adjustable from 3 PSI up to 25 PSI, these springs require a specific amount of positive pressure (boost) to fully open the valve. Positive pressure is fed to the space below the diaphragm; once the pressure equals or exceeds the spring rate, the valve opens, venting exhaust air and stabilizing turbo RPM.

2. Exploring Blow Off Valves

Blow off valves (BOVs) are installed on the charge air side of the turbo system. Their primary function is to vent boosted air out of the charge air tube when you release the throttle and the throttle body closes. When the throttle closes, the boost is trapped in the charge air tube and intercooler, potentially causing compressor surge, which stresses the shaft and bearing assembly, leading to premature wear.

How Blow Off Valves Function

A BOV uses a pressure signal from the intake manifold, which is fed to a fitting in the top cap. During acceleration, positive boost pressure keeps the valve closed. When you release the throttle, the pressure signal from the intake manifold becomes negative (vacuum), pulling the valve open and venting the charge air out of the charge tube. This prevents the damaging effects of compressor surge.

3. Airflow Dynamics in a Turbo System

To fully grasp the roles of wastegates and BOVs, it’s essential to understand how a turbo system works. Air flows in a cycle, starting at the turbocharger. From there, it passes through the intercooler and into the intake manifold. Next, it’s distributed to each engine cylinder for combustion. Afterward, it becomes exhaust, which flows through the exhaust manifold, bypassing the wastegate, and into the turbine housing inlet to spin the turbine wheel. Finally, the exhaust exits the turbine housing outlet and is directed to the exhaust pipe. The compressed air (boost) from the turbo follows a blue/yellow path, while the exhaust airflow follows a red path, as shown in diagrams of turbo systems.

Visualizing the System

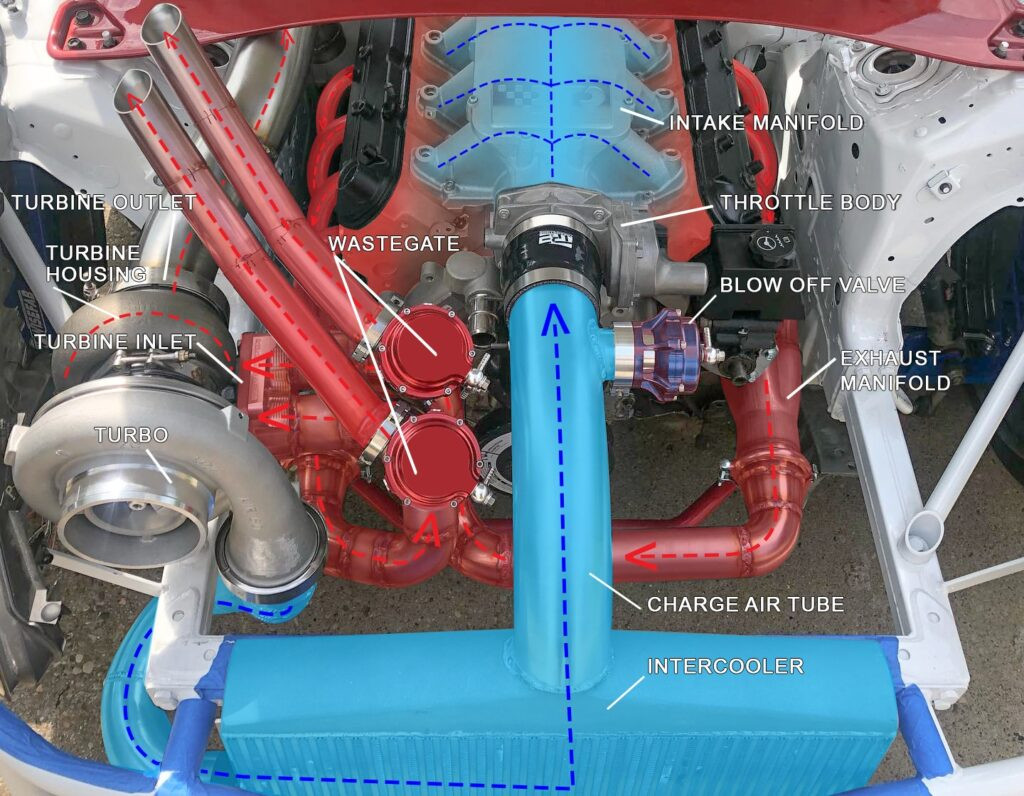

Take a look at the inner workings of an engine bay, which features an LS, 8-cylinder engine, single turbo configuration, two wastegates, and one blow off valve.

Image of an engine bay with an LS, 8 cylinder engine, single turbo configuration, two wastegates, and one blow off valve

4. Wastegates in V-Configuration Engines

In V-configuration engines, it’s common to use a wastegate for each of the manifold runners. This setup provides more precise control over the turbo speed, enhancing the engine’s responsiveness and overall performance.

5. Key Differences Summarized

Feature	Wastegate	Blow Off Valve
Location	Exhaust manifold, before turbine	Charge air tube, between turbo and throttle body
Function	Controls turbo speed by venting exhaust gas	Prevents compressor surge by venting boost
Trigger	Boost pressure exceeding spring rate	Throttle release, causing vacuum
Purpose	Protects turbo from overspeeding	Protects turbo from compressor surge

6. Advanced Diagnostics and Tuning with AutoExplain

AutoExplain offers expert remote diagnostic, programming, and software installation services to keep your turbo system running optimally. Whether you’re fine-tuning your wastegate settings or troubleshooting BOV issues, AutoExplain can help. Our team of experienced technicians provides comprehensive support, ensuring your vehicle performs at its best.

Optimizing Performance

Properly configured wastegates and BOVs are vital for maximizing the efficiency and lifespan of your turbocharger. AutoExplain’s advanced diagnostic tools can identify potential issues before they escalate, saving you time and money.

7. EEAT and Helpful Content Considerations

This article is crafted to provide expert insights into turbocharger components, drawing on industry knowledge and practical experience. AutoExplain is committed to delivering trustworthy and authoritative content that helps automotive enthusiasts and professionals alike.

Expertise

AutoExplain’s team comprises seasoned automotive technicians specializing in turbocharger systems and engine management. Their deep understanding of wastegates, blow off valves, and related components ensures accurate and reliable information.

Experience

With years of hands-on experience in diagnosing, repairing, and tuning turbocharged vehicles, AutoExplain brings real-world expertise to every article. This practical experience enriches the content and makes it highly relevant to readers.

Authoritativeness

AutoExplain is a trusted name in the automotive service industry, known for its commitment to quality and customer satisfaction. Our reputation for excellence underscores the authoritativeness of our content.

Trustworthiness

AutoExplain is dedicated to providing transparent and honest information. Our content is thoroughly reviewed to ensure accuracy and is free from misleading claims. We prioritize the needs of our readers, offering reliable advice and support.

8. Real-World Applications and Examples

To illustrate the importance of wastegates and BOVs, consider a high-performance sports car equipped with a turbocharger. During aggressive acceleration, the turbocharger generates significant boost. Without a properly functioning wastegate, the turbocharger could overspeed, leading to potential damage. The wastegate vents excess exhaust gas, maintaining a safe boost level and protecting the turbocharger.

Preventing Damage

Similarly, when the driver releases the throttle, the BOV vents the excess pressure in the intake system, preventing compressor surge. This not only protects the turbocharger but also ensures smooth and consistent performance.

9. Staying Updated with the Latest Trends

The automotive industry is constantly evolving, with new technologies and innovations emerging regularly. AutoExplain stays at the forefront of these advancements, ensuring our content reflects the latest trends and best practices.

Emerging Technologies

For example, electronic wastegates are becoming increasingly popular, offering more precise control over boost levels compared to traditional mechanical wastegates. AutoExplain provides insights into these emerging technologies, helping you stay informed and make the best decisions for your vehicle.

10. Optimizing for Google Discovery

To ensure this article reaches a wide audience, it is optimized for Google Discovery. This includes using high-quality images, providing clear and concise information, and structuring the content for easy readability.

Visual Appeal

The images used in this article are carefully selected to enhance the visual appeal and provide additional context. These images are optimized for both desktop and mobile devices, ensuring a seamless viewing experience.

11. Frequently Asked Questions (FAQ)

Here are some frequently asked questions about wastegates and blow off valves:

What happens if my wastegate fails?

If your wastegate fails, your turbocharger could overspeed, leading to engine damage. Regular maintenance and inspection can prevent this.

Can I install a BOV myself?

While it is possible to install a BOV yourself, it’s recommended to have it done by a professional to ensure proper installation and functionality. AutoExplain can guide you or provide remote support.

How often should I replace my BOV?

The lifespan of a BOV depends on usage and environmental conditions. Inspect it regularly for signs of wear and replace as needed.

Are wastegates and BOVs necessary for all turbo engines?

Yes, both wastegates and BOVs play crucial roles in maintaining the health and performance of turbo engines.

What are the benefits of upgrading my wastegate or BOV?

Upgrading can improve turbo response, maintain stable boost levels, and prevent compressor surge.

How do I choose the right wastegate for my car?

Selecting the right wastegate involves considering your turbocharger’s specifications, engine type, and desired boost levels. AutoExplain can offer personalized recommendations to ensure optimal performance.

Can a faulty BOV affect my car’s fuel efficiency?

Yes, a malfunctioning BOV can disrupt the air-fuel mixture in your engine, leading to decreased fuel efficiency and potential performance issues.

What are the common signs of a failing wastegate?

Common signs of a failing wastegate include inconsistent boost pressure, engine hesitation, and a noticeable decrease in overall performance. Regular inspection and maintenance can help identify and address these issues promptly.

Is it possible to adjust the settings on my wastegate?

Yes, many wastegates come with adjustable settings that allow you to fine-tune the boost pressure. However, it’s essential to have a thorough understanding of your engine’s parameters and the potential effects of adjusting these settings. Consulting with a professional like AutoExplain is advisable.

How do electronic wastegates compare to mechanical ones?

Electronic wastegates offer more precise control and quicker response times than mechanical ones, enhancing engine performance and efficiency. However, they may also come with a higher price tag and require more complex installation and maintenance.

12. AutoExplain: Your Partner in Automotive Excellence

AutoExplain is your trusted partner for all your automotive diagnostic, programming, and software installation needs. With our expert technicians and state-of-the-art tools, we ensure your vehicle performs at its best.

Contact Us Today

Ready to optimize your turbo system? Click on the Whatsapp button to learn more about AutoExplain’s solutions and discover how we can help you achieve peak performance. Contact us today for personalized advice and a free quote. Address: 1500 N Grant ST Sten Denver, Colorado, United States. Whatsapp: (+84)967469410. Email: [email protected]. Website: autoexplain.com

Conclusion

Understanding the difference between wastegates and blow off valves is crucial for maintaining and optimizing turbocharged engines. Wastegates control turbo speed by venting exhaust gas, while blow off valves prevent compressor surge by venting excess pressure. With the right knowledge and professional support from AutoExplain, you can ensure your turbo system operates efficiently and reliably.
