Tips to Clear ABS and ESP Inoperative Warning in Your Mercedes Benz

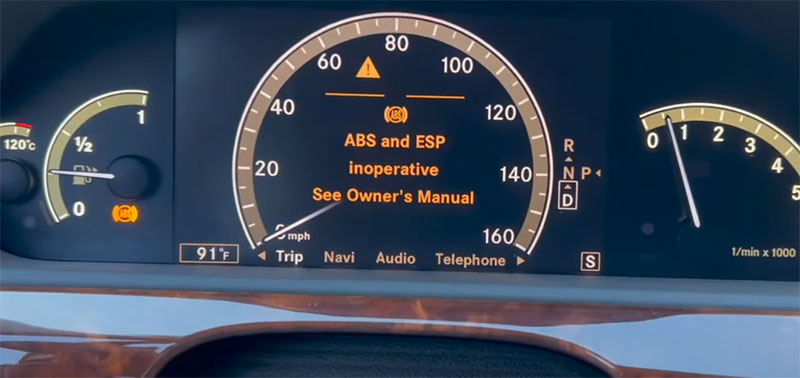

When your Mercedes Benz displays the “ABS and ESP Inoperative” warning, it can be alarming. These are critical safety systems that ensure your car maintains traction and stable braking in slippery or emergency conditions. Fortunately, many drivers can troubleshoot and even fix the issue themselves — if they understand the root causes.

This guide offers practical, real-world tips to clear the ABS and ESP inoperative warning, reduce your repair bill, and understand what’s happening behind that intimidating dash light.

---

1. What Does “ABS and ESP Inoperative” Mean?

First, let’s decode the message:

• ABS = Anti-lock Braking System

• ESP = Electronic Stability Program (aka Electronic Stability Control)

If your Mercedes says “ABS and ESP Inoperative”, it means:

• The vehicle has disabled both systems due to a detected fault.

• These systems are no longer actively helping prevent wheel lock or skidding.

This affects traction control, safe cornering, and emergency braking. It’s still safe to drive short distances in dry conditions — but not recommended for daily use or highway driving until fixed.

2. Common Symptoms of ABS and ESP Inoperative in Mercedes-Benz

In addition to the dashboard warning, you may notice:

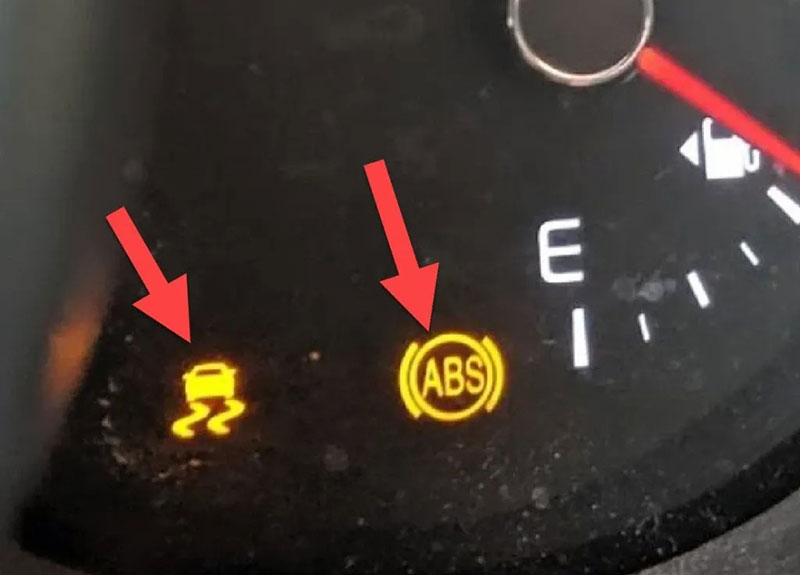

2.1. Dashboard Warning Lights Stay On

• ABS Light: Usually a yellow or orange icon resembling a circle with “ABS” inside, this signals that the anti-lock braking system is disabled.

• ESP/BAS Light: A triangle with a car and squiggly lines underneath (representing skidding). It may appear alongside or separate from the ABS light.

• Check Engine Light (sometimes): Though not directly related, some electrical faults may trigger this light too.

⚠️ What It Means: One or more systems have been deactivated to prevent unsafe operation. Diagnostic scanning is required to pinpoint the fault.

---

2.2. Loss of Traction Control During Acceleration

You may notice that the car:

• Struggles to grip during hard acceleration (especially on wet or icy roads)

• Wheelspin occurs more easily because traction control is disabled

• There’s no intervention from the ESP system to correct the slide

⚠️ Why It Happens: The Electronic Stability Program (ESP) uses sensors to reduce engine power or apply brakes to specific wheels during a skid. When disabled, your car can lose control more easily.

---

2.3. Braking Feels “Different” or Unsafe

• The brakes may feel more rigid or inconsistent, especially on slippery roads

• In emergency braking, wheels may lock up, increasing stopping distance

• On bumpy or wet surfaces, you may feel the car slide or pulse under braking

⚠️ What’s Going On: ABS prevents wheel lock-up during hard braking. When it’s disabled, the system can’t modulate brake pressure, so you’re at risk of losing control during panic stops.

---

2.4. Cruise Control Not Working

Many Mercedes-Benz models disable cruise control automatically when ESP or ABS faults are active. You may press the cruise button, but nothing engages.

⚠️ Why: The cruise system relies on wheel speed sensors, steering angle sensors, and ABS/ESP status to maintain safe speeds — if these are faulty or offline, cruise won’t function.

---

2.5. Steering Feels Off or Unstable

Drivers often report:

• The steering feels heavier or looser than usual

• A sense of “drifting” or poor lane stability on the highway

• Difficulty staying centered when braking or cornering

⚠️ Likely Cause: A faulty steering angle sensor — a key input for ESP. If it sends inaccurate signals, the system cannot correct oversteer or understeer, making the car feel unpredictable.

---

2.6. Other Systems Start to Malfunction

Because modern Mercedes vehicles have interconnected safety systems, other features may also stop working:

• Blind Spot Assist Inoperative: If radar sensors or communication lines fail

• Brake Assist Disabled: Especially if the issue is sensor- or voltage-related

• Hill Hold Assist Malfunction

• Parking Assist Warnings

• Auto Start/Stop deactivated

⚠️ What It Means: A single issue (like a sensor fault or voltage drop) can cascade across multiple safety features, causing broad electronic instability.

---

2.7. Vehicle Goes into Limp Mode (rare)

In rare or severe cases, your Mercedes may enter limp mode — where power is reduced to prevent further damage. This typically happens if:

• ABS module fails entirely

• Communication between ECU and safety modules breaks down

• There’s a short circuit or voltage spike

⚠️ If this happens, the car will drive very sluggishly, and you may see additional messages like “Drive to Workshop” or “Reduced Power.”

---

2.8. ABS or ESP Activates Randomly

On occasion, faulty sensors or wiring can cause false activations, such as:

• The ABS system kicking in during light braking

• The ESP system activating when there’s no actual loss of traction

⚠️ Explanation: This can happen if one of the wheel speed sensors intermittently sends incorrect data. The system believes a wheel is slipping or locking and reacts inappropriately.

---

2.9. Unusual Noises When Braking

While ABS and ESP warnings typically don’t cause mechanical noise, you might hear:

• Grinding or pulsating sounds when braking (especially if ABS tries to engage)

• Clicking near the wheels from faulty or loose sensors

⚠️ Important: If you hear loud grinding consistently, the issue may not be electronic — you may have worn brake pads or rotor issues. Still worth checking in conjunction with ABS faults.

---

3. Why You’re Seeing the “ABS and ESP Inoperative” Warning

There are multiple possible causes. The most common include:

3.1. Low Battery Voltage

• Mercedes-Benz vehicles are sensitive to voltage fluctuations.

• If your battery is weak, ABS/ESP systems may shut down.

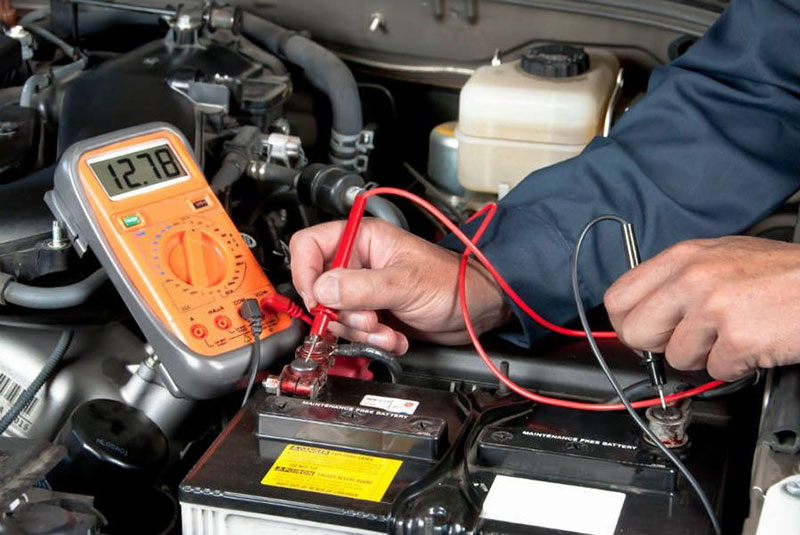

Quick Fix: Check battery voltage with a multimeter. If it’s under 12.4V with the engine off, recharge or replace the battery.

---

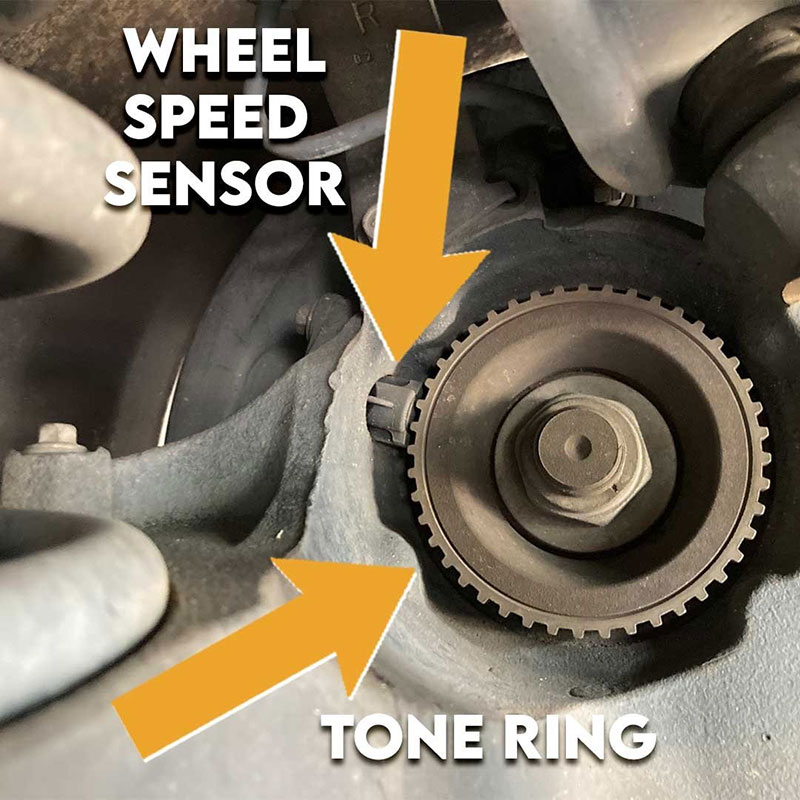

3.2. Faulty Wheel Speed Sensor

• Each wheel has a sensor that sends speed data to the ABS/ESP module.

• Dirt, corrosion, or damage to these sensors can trigger the warning.

DIY Tip:

• Inspect the wheel hubs behind each wheel.

• Look for damaged wires, dirt buildup, or corrosion.

• Clean sensors gently with electrical contact cleaner.

---

3.3. Steering Angle Sensor Misalignment

• This sensor tells your car which way the steering wheel is pointing.

• If it’s out of calibration, ESP thinks you’re going one direction but the wheels say another.

Fix:

• Use a scan tool to reset or recalibrate the steering angle sensor.

• If your car was recently aligned or had front-end work, this could be the issue.

---

3.4. Blown ABS/ESP Fuse

• A fuse may blow due to a voltage spike or worn wiring.

How to Check:

• Look inside your engine bay or under-dash fuse box.

• Refer to the fuse diagram in your owner’s manual.

• Replace any blown ABS/ESP-related fuses with the correct rating.

---

3.5. Radar Sensor Misalignment (Rear Bumper)

In models like the Mercedes C300, the rear short-range radar sensors — used for blind spot assist and ESP — can be misaligned from:

• Minor accidents

• Improper bumper installation

• Sensor bracket damage

This can disable ESP and Blind Spot Assist at the same time.

Fix: Requires bumper removal and realignment of sensors to Mercedes-Benz specifications.

---

4. How to Diagnose ABS and ESP Issues with a Scan Tool

When your dashboard displays the “ABS and ESP Inoperative” warning in your Mercedes-Benz, it’s not enough to guess the problem — a proper diagnostic process using a compatible scan tool is essential. Here’s how to do it step-by-step:

Step 1: Connect a Diagnostic Scanner (Read Mercedes DTCs)

Begin by connecting a Mercedes-compatible diagnostic tool, such as:

• Mercedes-Benz Star Diagnostic (XENTRY)

• XENTRY Diagnostics + DAS (Diagnostic Assistance System)

These tools are capable of reading Mercedes DTCs (Diagnostic Trouble Codes) from your vehicle’s ABS and ESP systems, which most generic OBD2 scanners cannot access.

Why this matters:
Generic scanners may miss key faults. For example, a Mercedes DTC like C0031 (Front Left Wheel Speed Sensor Signal Fault) will only show up on a brand-specific tool.

=> Download Xentry Diagnostic Software here!

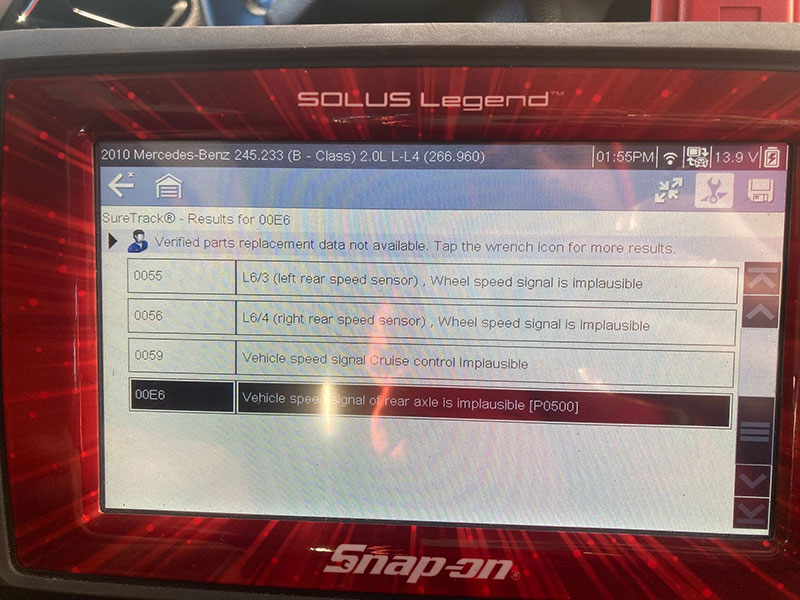

Some Fault Codes Related to the ABS & ESP Malfunction in Mercedes-Benz:

1. Wheel Speed Sensor Code:

• Mercedes DTC C0031 – Front Left Wheel Speed Sensor Signal Fault
• Mercedes DTC C0034 – Front Right Wheel Speed Sensor Signal Fault

• Mercedes DTC P1860: Right rear wheel speed sensor – implausible signal

• Mercedes DTC C1130: Right rear speed sensor – line monitoring intermittent

• Mercedes DTC C1131: Right rear wheel speed sensor – pulse gear intermittent

• Mercedes DTC C1132: Right rear wheel speed sensor – faulty signal – intermittent

• Mercedes DTC 202A: CAN message from TCM – incorrect speed from rear left RPM sensor

• Mercedes DTC 0055: L6/3 (left rear speed sensor), Wheel speed signal is implausible
• Mercedes DTC 0056: L6/4 (right rear speed sensor), Wheel speed signal is implausible

2. Vehicle Speed and Communication Faults

• Mercedes DTC P0500 – P0503: Vehicle speed sensor malfunction codes

• Mercedes DTC C1707: Internal fault in the ABS/ESP control module

• Mercedes DTC B1650: CAN communication fault

Record the exact code(s), then cross-reference with the repair steps below.

---

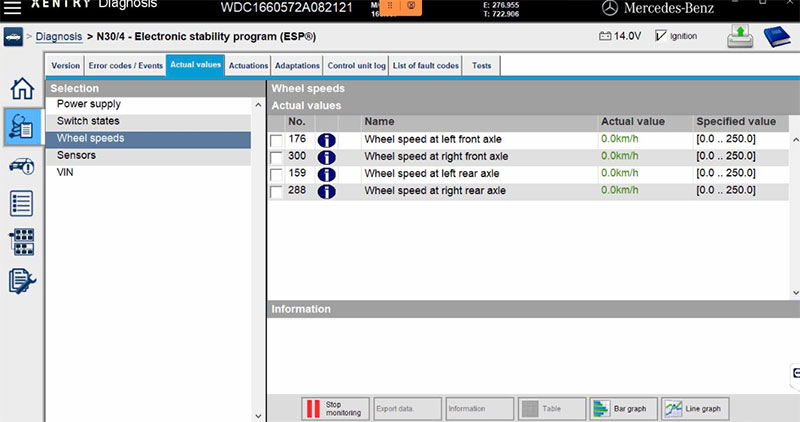

Step 2: Analyze Live Data from ABS & ESP Modules

Once the diagnostic codes are retrieved, the next step is to view live sensor data in real-time. This helps verify whether components are actively malfunctioning or if the fault is intermittent.

Key Parameters to Check:

1. Wheel Speed Sensors

   • Drive the vehicle slowly (on a safe, private road).

   • Observe if all four wheels are reporting speed values.

   • A flat or zero reading from one sensor (e.g., rear right) may indicate failure or disconnection.

2. Steering Angle Sensor (SAS)

   • Rotate the steering wheel while stationary.

   • The angle values should change dynamically and return to 0° when the wheel is centered.

   • If values are stuck or jump erratically, recalibration or replacement is needed.

3. System Voltage & Power Supply

   • Verify battery voltage is stable (above 12.4V engine off, 13.7–14.2V while running).

   • Check that sensors are receiving appropriate reference voltages.

Live data can uncover hidden problems, such as faulty sensor outputs that haven’t yet triggered a permanent DTC.

---

Step 3: Inspect Physical Components

Now that you know what systems are affected, conduct a hands-on inspection of the relevant parts:

✅ Wheel Speed Sensors

• Located behind each brake rotor.

• Check for:

  • Dirt or metal shavings on the sensor tip

  • Cracked, broken, or frayed sensor wires

  • Damaged or missing tone rings on the axle/hub

✅ Wiring Harness & Connectors

• Focus on high-stress points like:

  • Suspension arms

  • ABS sensor connectors near wheel hubs

  • Wire routing near the brake lines or underbody

• Look for:

  • Corrosion

  • Loose or damaged connectors

  • Pinched wires or insulation breaks

✅ ABS/ESP Control Module

• Usually located near the engine bay (driver’s side).

• Check for:

  • Signs of water intrusion

  • Burn marks or melted wires

  • Leaking brake fluid around hydraulic control unit

Tip: Gently wiggle connectors while monitoring live data — fluctuating values could mean a loose connection.

---

Step 4: Circuit Testing (Continuity and Voltage)

If wiring problems are suspected based on previous steps, use a multimeter or power probe to test electrical continuity and voltage delivery.

Continuity Tests:

• Disconnect the sensor at both ends (sensor and control unit).

• Use a multimeter to verify:

  • Continuity across the entire length of wire

  • No unexpected resistance (usually <1 ohm)

  • No short to ground or short to power

Voltage Testing:

• Turn ignition ON (engine off).

• Measure voltage at the sensor connector.

  • Most ABS wheel speed sensors operate on 5V reference voltage.

  • A missing voltage could indicate a failed ABS module or broken power wire.

Circuit testing is crucial for intermittent faults that don’t appear during visual inspection.

---

5. How to Fix and Clear ABS and ESP Inoperative Warning

Depending on your scan results or visual inspection, here are the best solutions:

---

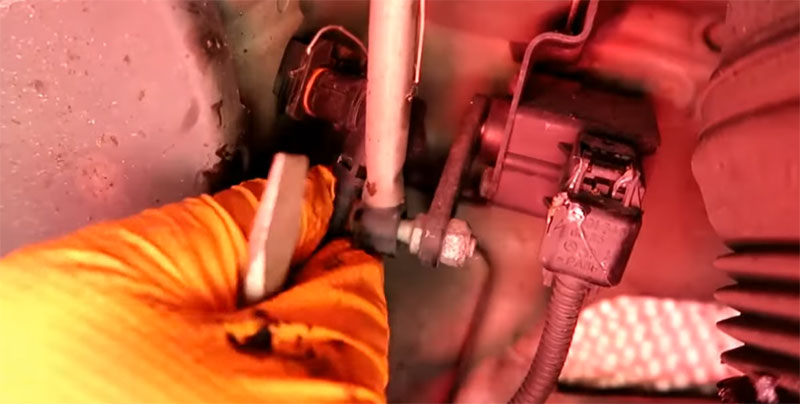

5.1. Wheel Speed Sensor Replacement

If live data and DTCs confirm a faulty sensor:

Steps:

1. Jack up the vehicle and remove the wheel.

2. Locate the faulty sensor behind the rotor.

3. Disconnect the electrical connector.

4. Remove the mounting bolt (typically a T30 Torx).

5. Carefully remove the sensor (may be stuck due to rust).

6. Install a genuine Mercedes-Benz or OEM-grade sensor.

7. Clear fault codes and retest system.

---

5.2. Electrical System Repairs

Many ABS and ESP faults stem from power issues.

Battery & Alternator:

• Test the battery voltage (should hold above 12.2V under load).

• Check alternator output — 13.7V to 14.2V with engine running.

• Replace battery or alternator if values are out of range.

Connectors & Grounds:

• Clean battery terminals and ground points.

• Apply dielectric grease to exposed ABS/ESP connectors to prevent corrosion.

• Tighten all ground straps and mounting points.

---

5.3. Steering Angle Sensor Calibration

If the DTC or live data indicates a steering angle fault:

Manual Recalibration (works on many models):

1. Start the engine while parked.

2. Turn the wheel full lock right → full lock left → center.

3. Repeat this process two or three times.

4. Turn off the engine, wait 10 seconds, and restart.

5. Check if the warning clears.

If this doesn’t work, use a diagnostic tool like YOUCANIC or XENTRY to perform:

• SAS Zero-Point Calibration

• Reset Learned Values

---

5.4. ABS/ESP Control Module Repair or Replacement

If diagnostic codes indicate an internal module fault:

Repair Option:

• Send the module to a certified electronic repair specialist (e.g., Module Master, SOS Diagnostics).

• Cost-effective and retains factory programming.

Replacement Option:

• Purchase a new or remanufactured control unit.

• Use XENTRY or similar to:

  • Perform SCN coding (Software Calibration Number)

  • Match vehicle VIN and settings

  • Reset system faults

=> Contact AutoExplain via whatsapp +1(936)2896695 if you need to find an alternative method for SCN Coding.

---

5.5. Software Reset Procedures (ESP Button or Tool)

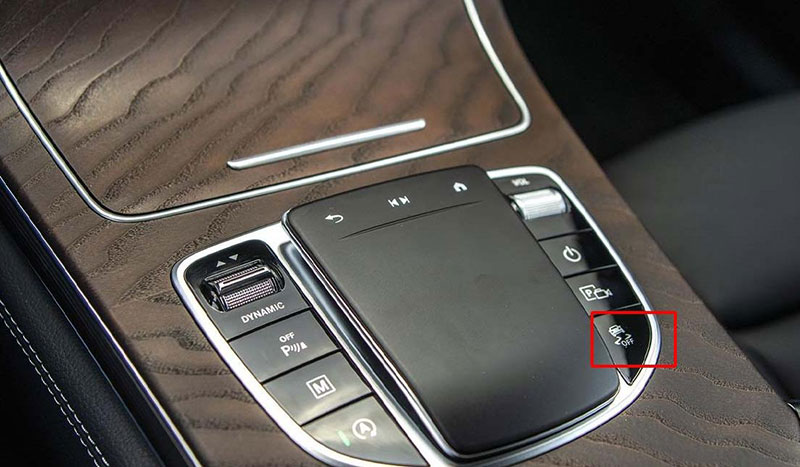

Some models allow manual resets using the ESP OFF button:

To Reset:

1. Locate the ESP OFF button on the dashboard.

2. Press and hold for ~5 seconds.

3. Release, then restart the engine.

4. Check if the warning disappears.

If your vehicle lacks an ESP button or this doesn’t work, a scanner is required to perform the reset.

---

5.6. What if Environmental or Temporary Triggers the ABS, ESP Inoperative

Sometimes, the issue isn’t mechanical — it’s external:

• Heavy rain or snow buildup around wheel sensors

• Ice or mud blocking the sensor “window”

• Driving near walls or trailers (radar reflection)

• Water intrusion into wiring or connectors

Solution:

• Rinse the wheel wells and bumper with clean water.

• Dry the car completely.

• Restart and drive at 30+ mph for several minutes.

---

6. Pro Tips from Technicians

• Don’t ignore the message — ABS and ESP are crucial to safe driving.

• Use genuine or high-quality parts — cheap sensors often fail quickly.

• Always scan for all related codes — ESP, ABS, Blind Spot, and Brake Assist systems are interconnected.

• If you’ve recently had suspension or alignment work, the sensor calibration may be off.

---

8. How Much Does It Cost to Fix?

---

9. Preventing Future ABS and ESP Malfunction

• Clean wheel hubs and sensors regularly.

• Avoid high-pressure water directly on sensors.

• Keep battery terminals clean and tight.

• Inform mechanics of radar sensor locations before repairs.

• Do a scan every few months to catch intermittent faults early.

---

🚗 Need Help Diagnosing ABS and ESP Issues? Let Autoexplain Help!

Still struggling with that “ABS and ESP Inoperative” warning on your Mercedes-Benz? Don’t worry — Autoexplain is here to simplify your repair journey.

Whether you’re a DIY enthusiast or just want to understand what’s going on under the hood, AutoExplain gives you:

✅ Step-by-step diagnostic guides tailored to your Mercedes model
✅ Professional insights into fault codes (Mercedes DTCs) and repair solutions
✅ Expert-backed solutions for electrical faults, sensor replacement, and system resets
✅ Access to community Q&A with experienced technicians and real-world case studies
✅ Easy-to-understand instructions designed for both beginners and pros

🔧 No more guesswork. No more wasting money on unnecessary parts. Just clear, actionable advice to get your ABS and ESP systems working again — fast.

---

📲 Visit Autoexplain to:

• Run your vehicle’s error codes through our diagnostic tool

• Access exclusive repair tutorials for your Mercedes

• Get personalized help from experienced automotive experts

Final Thoughts

Seeing the “ABS and ESP Inoperative” warning in your Mercedes Benz is never pleasant, but with a bit of knowledge, you can often clear it yourself — especially if it’s due to sensor dirt, voltage, or a simple calibration error.

If you’re not comfortable with diagnostics, always seek help from a certified Mercedes technician. But for those willing to learn, these tips will save time, money, and stress — and get your Benz back to full performance.
