How To Fix BMW Fault Code B7F8B4?

The BMW fault code B7F8B4 indicates an open circuit in the connection between the host and the satellite tuner antenna, often accompanied by coding and online function limitations. Resolving this involves diagnosing the antenna connection and performing online coding for the Advanced Host module. If you’re struggling with this, AutoExplain.com offers remote diagnostic and programming services to get your BMW back on track quickly.

1. What Does BMW Fault Code B7F8B4 Mean?

BMW fault code B7F8B4 signals “Host and satellite tuner antenna connection: open circuit.” This means there’s a break in the wiring or a faulty connection between the car’s main entertainment and control unit (the host) and the antenna responsible for receiving satellite radio signals.

• What causes the B7F8B4 fault code in BMW? The B7F8B4 fault code can arise from several issues, including:

  • A disconnected or loose antenna cable.
  • A damaged antenna cable.
  • A faulty satellite tuner.
  • Corrosion on the connector pins.
  • Damage to the host module.

• Which BMW models are most affected by the B7F8B4 fault code? While it can appear in various models, the B7F8B4 fault is often reported in BMW X5 (F15 chassis), BMW 5 Series, BMW 7 Series, and other models equipped with a satellite radio system.

• Why is it crucial to address the B7F8B4 fault code promptly? Ignoring the B7F8B4 fault code can lead to:

  • Loss of satellite radio functionality.
  • Intermittent or complete failure of the central control display.
  • Potential drain on the car’s battery due to continuous searching for a signal.

2. Diagnosing the B7F8B4 Fault Code on a BMW

Diagnosing the B7F8B4 fault code accurately is the first step to resolving the issue. Here’s how to approach it:

1. Visual Inspection: Begin by inspecting the antenna connection at both the host unit and the satellite tuner. Look for any signs of damage, corrosion, or loose connections.
2. Continuity Testing: Use a multimeter to test the continuity of the antenna cable. This will confirm whether there’s a break in the wire.
3. Scan Tool Diagnosis: Use a BMW-compatible scan tool to confirm the presence of the B7F8B4 code and check for any other related fault codes.
4. Antenna Testing: If possible, test the satellite antenna itself to ensure it’s functioning correctly.
5. Host Module Check: In rare cases, the issue might be with the host module itself. Inspect the module for any signs of damage or corrosion.

Visual Inspection of a BMW Antenna

Alt text: Inspecting the antenna connection plug of BMW.

3. Step-by-Step Guide to Fixing the B7F8B4 Fault Code

Once you’ve diagnosed the issue, follow these steps to fix the B7F8B4 fault code:

1. Reconnect or Replace Antenna Cable: If the cable is loose, reconnect it securely. If the cable is damaged, replace it with a new one.
2. Clean Connectors: Clean any corrosion from the connector pins using a contact cleaner.
3. Replace Satellite Tuner: If the satellite tuner is faulty, replace it with a new one.
4. Check Host Module Connections: Ensure all connections to the host module are secure and free of corrosion.
5. Clear Fault Codes: After making the necessary repairs, use a scan tool to clear the B7F8B4 fault code and any other related codes.
6. Test System: Test the satellite radio system to ensure it’s functioning correctly.

4. Advanced Troubleshooting: Coding and Programming

In some cases, simply fixing the antenna connection may not be enough to resolve the B7F8B4 fault code. You may also need to perform coding or programming on the host module.

• What is coding and programming in the context of BMW diagnostics? Coding involves modifying the software parameters of a control unit to match the car’s configuration. Programming involves updating the software on a control unit to the latest version.
• When is coding or programming required? Coding or programming is often required after replacing a control unit or when retrofitting new features to the car. In the case of the B7F8B4 fault code, coding may be necessary if the host module’s software has become corrupted or needs to be updated.
• How to perform coding and programming on a BMW? Coding and programming require specialized equipment and software, such as BMW ISTA or Autel MS909. The process typically involves connecting the scan tool to the car’s OBD-II port and following the on-screen instructions.

Here’s a simplified example of the coding process using Autel MS909:

1. Connect the Autel MS909 to the vehicle’s OBD interface.

2. Select “Programming” from the main menu.

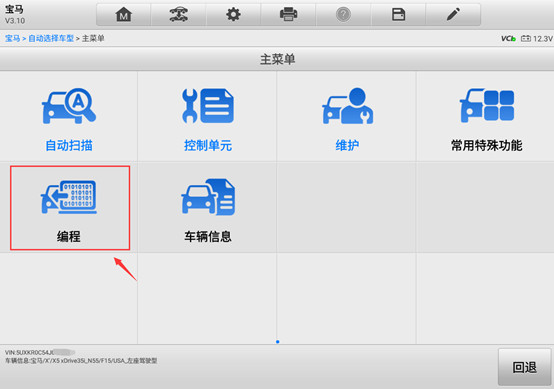

   Programming Selection on Autel MS909

   Alt text: Accessing the programming menu on Autel MS909.

3. Connect the MS909 to the programming box with a data cable, as prompted.

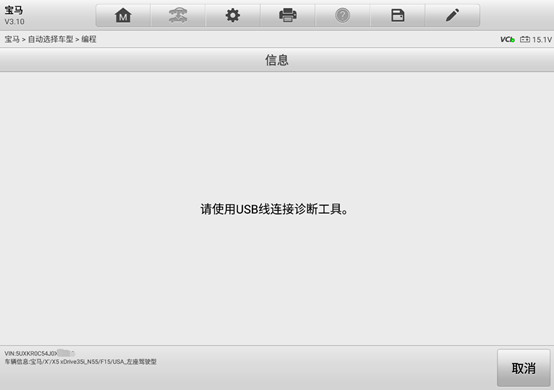

   Connecting MS909 to Programming Box

   Alt text: Connecting the programming box for BMW coding.

4. Confirm the interface information and click “OK.”

5. Carefully read the interface prompts and click “Yes” or “No” based on the module replacement situation.

6. Enter the programming menu and select the “Coding” option.

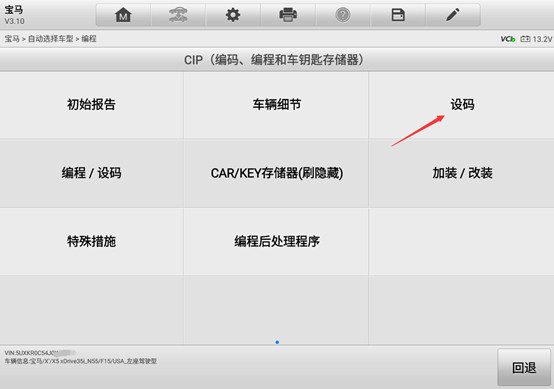

   Selecting the Coding Option

   Alt text: Choosing the coding option within the programming menu.

7. Execute “Selective Coding” according to the fault code’s meaning.

8. Click the HUH (advanced host) coding option and then click “OK.”

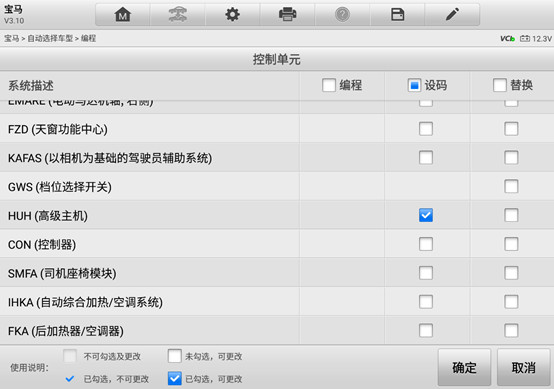

   HUH Coding Option

   Alt text: Selecting the advanced host (HUH) coding option.

9. Confirm the current interface information and click “Execute Action Plan.”

10. Connect to a valid network and click “OK.”

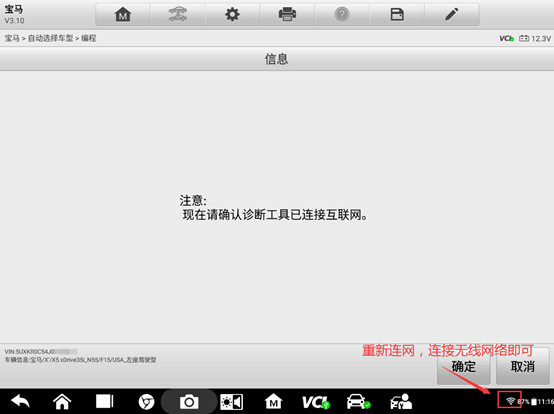

    Connecting to Network for Coding

    Alt text: Ensuring a stable network connection for online coding.

11. Ensure the network is stable while data loads from the server.

12. Reconfirm the data cable connection and click “OK.”

13. Ensure the vehicle voltage is stable during coding, using a dedicated stabilized power supply if necessary.

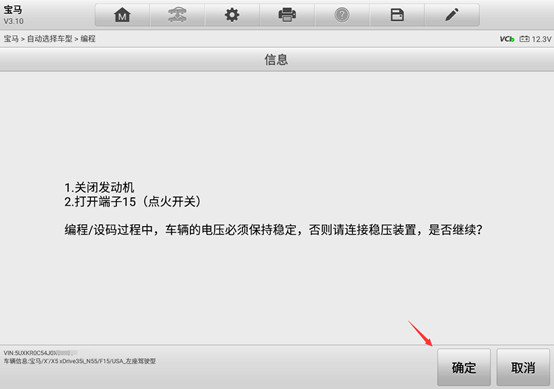

    Stable Vehicle Voltage

    Alt text: Ensuring stable vehicle voltage during the coding process.

14. MS909 will automatically perform the required operations, ensuring the vehicle is properly connected.

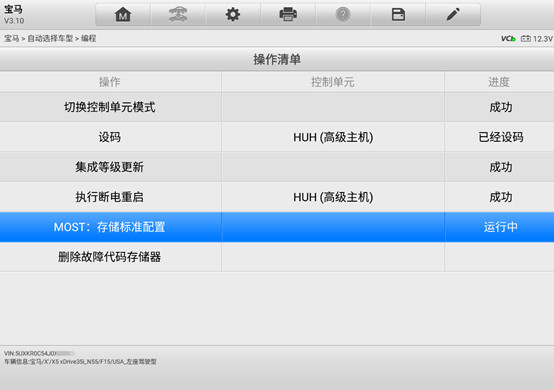

    Automatic Operations by MS909

    Alt text: Automated coding operations by Autel MS909.

15. A successful coding end report will appear; click “OK.”

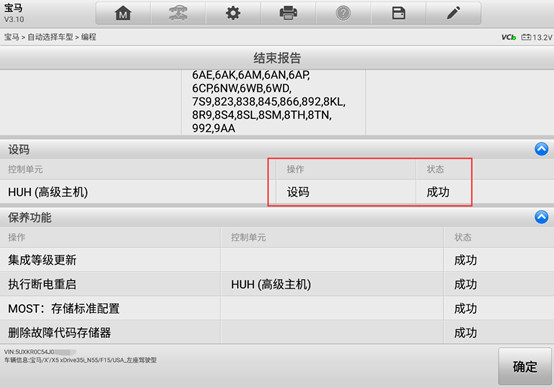

    Successful Coding Report

    Alt text: Coding end report showing successful coding.

Important Considerations:

• Battery Voltage: Maintain a stable battery voltage during coding and programming.
• Internet Connection: Ensure a stable internet connection is maintained throughout the process.
• Software Updates: Keep your diagnostic tool’s software up to date to ensure compatibility with the latest BMW models.
• Risk of Damage: Incorrect coding or programming can damage the control unit. If you’re not comfortable performing these procedures, seek professional help.

5. Why Choose AutoExplain.com for Your BMW Diagnostic Needs?

Dealing with complex BMW fault codes like B7F8B4 can be challenging, especially when coding and programming are involved. That’s where AutoExplain.com comes in.

• Expert Remote Diagnostics: Our team of experienced BMW technicians can remotely diagnose and troubleshoot your car’s issues, saving you time and money.
• Advanced Coding and Programming Services: We offer coding and programming services for BMW ECUs, TCMs, BCMs, ABS, AdBlue systems, and more.
• Navigation Update Services: Keep your BMW’s navigation system up to date with our expert navigation update services.
• Key Programming: Need a new key programmed for your BMW? We can help with that too.
• Fast and Reliable Support: We provide technical support via WhatsApp, email, and other online platforms.

Benefits of Choosing AutoExplain.com:

• Convenience: Get expert help from the comfort of your own garage.
• Cost-Effectiveness: Avoid expensive trips to the dealership.
• Expertise: Our technicians have years of experience working on BMWs.
• Speed: We can often diagnose and resolve issues much faster than a traditional repair shop.

6. Preventative Measures to Avoid Future B7F8B4 Fault Codes

While some issues are unavoidable, there are steps you can take to minimize the risk of encountering the B7F8B4 fault code in the future:

• Regular Maintenance: Keep your BMW well-maintained, following the manufacturer’s recommended service schedule.
• Secure Connections: Ensure all electrical connections, especially those related to the antenna and host module, are secure and free of corrosion.
• Professional Installation: Have any aftermarket accessories installed by a qualified technician to avoid damaging the car’s electrical system.
• Software Updates: Keep your car’s software up to date to address any known issues and improve performance.

7. Understanding Related BMW Fault Codes

Several other fault codes may be related to the B7F8B4 code or indicate similar issues with the BMW’s entertainment and control system. Here are a few examples:

• 26308 HU-H: No current coding data stored: This code indicates that the host module has lost its coding data, which can happen after a software update or a power interruption.
• 31782 HU-H: Online function limitation: This code suggests that certain online functions of the host module are limited, often due to coding issues or a lack of a valid subscription.
• 801C20 Head Unit: Internal Fault: An internal fault within the head unit may trigger this fault code.
• 801C08 Head Unit: No Communication: This fault code may appear if there is no communication between the head unit and other control modules.
• B7F894 SDARS antenna: Line Break: This code signals a break in the SDARS antenna line.

Addressing these related codes promptly can prevent further issues and ensure the proper functioning of your BMW’s systems.

8. The Role of the Head Unit (HU-H) in BMW Systems

The Head Unit High (HU-H), or advanced host module, plays a crucial role in modern BMW vehicles. It serves as the central hub for various functions, including:

• Infotainment: Controls the radio, media player, navigation system, and other entertainment features.
• Vehicle Settings: Allows drivers to customize various vehicle settings, such as lighting, climate control, and driver assistance systems.
• Connectivity: Enables Bluetooth connectivity, smartphone integration (Apple CarPlay, Android Auto), and access to online services.
• Display and Control: Provides the interface for displaying information and controlling various vehicle functions through the central control display and iDrive controller.

Alt text: The BMW iDrive controller.

Because of its central role, any issues with the HU-H can have a significant impact on the car’s functionality and driver experience.

9. Common Tools and Equipment for BMW Diagnostics

To effectively diagnose and repair BMW fault codes like B7F8B4, technicians rely on a variety of specialized tools and equipment:

• BMW-Compatible Scan Tool: Essential for reading and clearing fault codes, accessing live data, and performing coding and programming. Examples include BMW ISTA, Autel MS909, and Launch X431.
• Multimeter: Used for testing continuity, voltage, and resistance in electrical circuits.
• Oscilloscope: Provides a visual representation of electrical signals, allowing technicians to diagnose intermittent issues and signal problems.
• Wiring Diagrams: Essential for understanding the car’s electrical system and tracing circuits.
• Specialized Sockets and Wrenches: Necessary for removing and installing BMW-specific components.
• Battery Support Unit: Maintains a stable battery voltage during coding and programming.

Having access to the right tools and equipment is crucial for accurate diagnosis and efficient repairs.

10. B7F8B4 BMW Fault Code: FAQs

1. Can I fix the B7F8B4 fault code myself?
Yes, if you have experience with automotive diagnostics and repair, you can attempt to fix the B7F8B4 fault code yourself. Ensure you have the necessary tools and follow safety precautions. However, coding and programming may require professional assistance.

2. How much does it cost to fix the B7F8B4 fault code at a BMW dealership?
The cost to fix the B7F8B4 fault code at a BMW dealership can vary widely depending on the extent of the damage and the labor rates in your area. Expect to pay anywhere from $200 to $1000 or more.

3. Is it safe to drive with the B7F8B4 fault code?
While it may be safe to drive with the B7F8B4 fault code, it’s not recommended. The loss of satellite radio functionality and potential issues with the central control display can be distracting and inconvenient.

4. How can AutoExplain.com help me with the B7F8B4 fault code?
AutoExplain.com offers remote diagnostic and programming services to help you resolve the B7F8B4 fault code quickly and efficiently. Our experienced technicians can remotely diagnose the issue, provide step-by-step repair instructions, and perform any necessary coding or programming.

5. What information do I need to provide to AutoExplain.com for remote diagnostics?
To get started with remote diagnostics, you’ll need to provide us with the car’s VIN, a description of the issue, and any fault codes you’ve retrieved. You’ll also need a compatible scan tool and a stable internet connection.

6. How long does it take to diagnose and fix the B7F8B4 fault code remotely?
The time it takes to diagnose and fix the B7F8B4 fault code remotely depends on the complexity of the issue. In many cases, we can diagnose the problem within an hour and provide repair instructions or perform coding/programming within a few hours.

7. What if the B7F8B4 fault code returns after I’ve fixed it?
If the B7F8B4 fault code returns after you’ve fixed it, it’s possible that there’s an underlying issue that needs to be addressed. Contact AutoExplain.com for further assistance.

8. Can a faulty battery cause the B7F8B4 fault code?
Yes, a faulty battery can sometimes cause various electrical issues, including the B7F8B4 fault code. Make sure your car’s battery is in good condition and properly charged.

9. Are there any recalls related to the B7F8B4 fault code?
Check the National Highway Traffic Safety Administration (NHTSA) website or the BMW website to see if there are any recalls related to the B7F8B4 fault code or other issues with the car’s electrical system.

10. Where can I find more information about BMW fault codes and diagnostics?
You can find more information about BMW fault codes and diagnostics on online forums, technical websites, and the BMW technical documentation portal.
